74xx125 74HC125 quad 3 state buffer integrated circuit demonstration for DIY electronics
Hello, guys. I am Rose. Today we will have a discussion about 74HC125. 74hc125 is a quad buffer/line driver. This article mainly introduce circuit, pinout, datasheet and other detailed information about Nexperia 74HC125.
74HC125D
The 74HC125 is a quad buffer/line driver with 3-state outputs which provides four independent buffer gates .
It is controlled by the output enable inputs (nOE). A HIGH on nOE causes the outputs to assume a high impedance OFF-state. Inputs include clamp diodes.
This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.The device is designed for operation with a power supply range of 2.0V to 6.0V.
Symbol

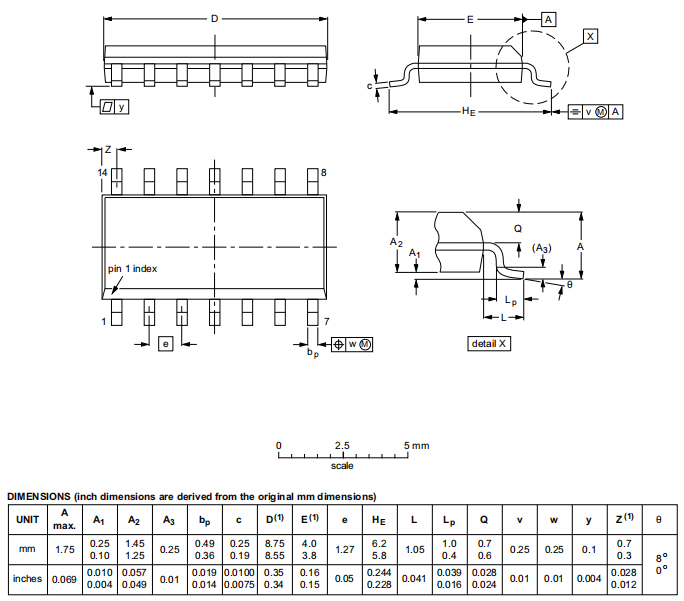

Footprint
●Complies with JEDEC standard no. 7A
●Input levels:
-The 74HC125: CMOS levels
●ESD protection:
-HBM JESD22-A114F exceeds 2000 V
-MM JESD22-A115-A exceeds 200 V
●Avilable in SO-14 and TSSOP-14 packages
●Specified from 40 C to +85 C and from 40 C to +125 C
●Wide Supply Voltage Range from 2.0V to 6.0V
●Sinks or sources 4mA at VCC = 4.5V
●Schmitt Trigger Action at All Inputs
●Exceeds 1000-V Charged Device Model (C101C)
●Totally Lead-Free & Fully RoHS Compliant
●Halogen and Antimony Free. “Green” Device

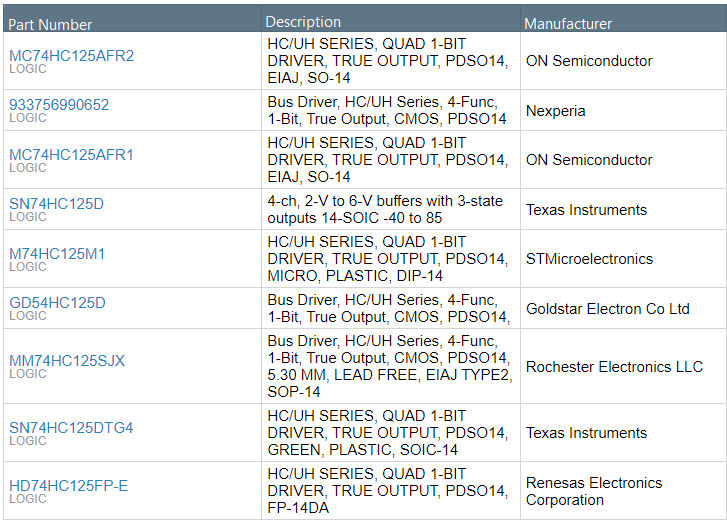

Nexperia 74HC125D technical specifications, attributes, parameters and parts with similar specifications to Nexperia 74HC125D.
Nexperia 74HC125D technical specifications, attributes, parameters and parts with similar specifications to Nexperia 74HC125D.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Surface Mount | |
| Package / Case | SO | |
| Number of Pins | 14Pins | |
| Number of Elements | 4 Elements | |
| Published | 1999 | |
| Part Status | Active | |
| Max Operating Temperature | 125°C | |
| Min Operating Temperature | -40°C | |
| Number of Outputs | 1Output | |
| Operating Supply Voltage | 5V | |
| Polarity | Non-Inverting | |
| Number of Channels | 4Channels |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage | 7V | |
| Number of Circuits | 4Circuits | |
| Max Supply Voltage | 6V | |
| Min Supply Voltage | 2V | |
| Nominal Supply Current | 8μA | |
| Number of Bits | 4Bits | |
| Propagation Delay | 9 ns | |
| Quiescent Current | 8μA | |
| Turn On Delay Time | 190 ns | |
| Logic Function | Buffer | |
| Number of Inputs | 1Input | |
| Number of Gates | 4Gates |
| Product Attribute | Attribute Value | |
|---|---|---|
| High Level Output Current | -7.8mA | |
| Low Level Output Current | 7.8mA | |
| Number of Input Lines | 4Input Lines | |
| Number of Output Lines | 4Output Lines | |
| Ambient Temperature Range High | 125°C | |
| Height | 1.75mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | RoHS Compliant | |
| Lead Free | Lead Free |
logic diagram
IEC logic diagram
logic diagram(one buffer)

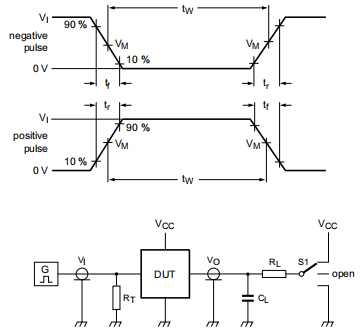

Load circuit for switching times
-Used in General Purpose Logic
-Used in PCs, Networking, Notebooks, Netbooks
-Used in Computer Peripherals, Hard Drives, CD/DVD ROM
-Used in TV, DVD, DVR, Set Top Box
Nexperia is a dedicated global leader in Discretes, Logic and MOSFETs devices. This new company became independent at the beginning of 2017. Focused on efficiency, Nexperia produces consistently reliable semiconductor components at high volume: 85 billion annually. The company’s extensive portfolio meets the stringent standards set by the Automotive industry. And industry-leading small packages, produced in their own manufacturing facilities, combine power and thermal efficiency with best-in-class quality levels. Built on over half a century of expertise, Nexperia has 11,000 employees across Asia, Europe and the U.S. supporting customers globally.
Download datasheets and manufacturer documentation for Nexperia 74HC125D.
Download datasheets and manufacturer documentation for 74HC125D
