Logic - Gates and Inverters 14-SSOP (0.209, 5.30mm Width) 4.5V~5.5V -40°C~125°C 74HCT 5V 74HCT00 0.65mm IC GATE NAND 4CH 2-INP 14SSOP The 74HCT00 is a quad 2-input NAND gate.
701
Oct 18, 2021
Sid Sophy
Switch based NAND gate and 7400 integrated circuit IC demonstration beginner learning electronics
Logic - Gates and Inverters 14-SSOP (0.209, 5.30mm Width) 4.5V~5.5V -40°C~125°C 74HCT 5V 74HCT00 0.65mm IC GATE NAND 4CH 2-INP 14SSOP
The 74HCT00 is a quad 2-input NAND gate. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
Pinout
| Symbol | Pin | Description |
| 1A to 4A | 1, 4, 9, 12 | data input |
| 1B to 4B | 2, 5, 10, 13 | data input |
| 1Y to 4Y | 3, 6, 8, 11 | data output |
| GND | 7 | ground (0 V) |
| VCC | 14 | supply voltage |
Pin description
Symbol
Footprint

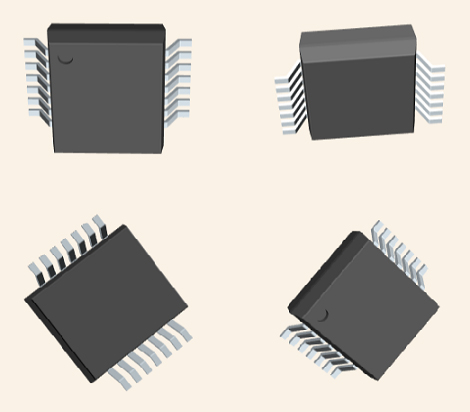

3D Model
The 74HCT00 is a quad 2-input NAND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
This article provides you with a basic overview of the 74HCT00, including its pin descriptions, features and specifications, etc., to help you quickly understand what 74HCT00 is.
● Input levels: TTL level
● Complies with JEDEC standard no. 7A
● ESD protection:
◆ HBM JESD22-A114F exceeds 2 000 V
◆ MM JESD22-A115-A exceeds 200 V
● Multiple package options
● Specified from ﹣40 °C to ﹢85 °C and from﹣40 °C to ﹢125 °C
undefined undefined technical specifications, attributes, parameters and parts with similar specifications to undefined undefined.
| Product Attribute | Attribute Value |
|---|
| Product Attribute | Attribute Value |
|---|
| Product Attribute | Attribute Value |
|---|
| Model number | Manufacturer | Description |
| 74HCT00DB,112 | NXP Semiconductors | 74HC(T)00 - Quad 2-input NAND gate SSOP1 14-Pin |
| SN74HCT00DBRE4 | Texas Instruments | 4-ch, 2-input, 4.5-V to 5.5-V NAND gates with TTL-compatible CMOS inputs 14-SSOP -40 to 85 |
| 74HCT00DB-T | Nexperia | NAND Gate |
Package outline
Nexperia is dedicated to Discretes, Logic and MOSFETs devices. This new company became independent at the beginning of 2017. Nexperia is a leading expert in the high-volume production of essential semiconductors, components that are required by every electronic design in the world. The company's extensive portfolio includes diodes, bipolar transistors, ESD protection devices, MOSFETs, GaN FETs and analog & logic ICs. Headquartered in Nijmegen, the Netherlands, Nexperia annually ships more than 100 billion products, meeting the stringent standards set by the automotive industry. These products are recognized as benchmarks in efficiency - in process, size, power and performance - with industry-leading small packages that save valuable energy and space.
With decades of experience in supplying to the world's leading companies, Nexperia has over 12,000 employees across Asia, Europe and the US. Nexperia, a subsidiary of Wingtech Technology Co., Ltd. (600745.SS), has an extensive IP portfolio and is certified to IATF 16949, ISO 9001, ISO 14001 and ISO 45001.
