74LS04: Circuits, Applications, and Pinout
Each of the six independent gates in the 74LS04 executes the logic INVERT function. Check out more details of the device on the following article.
590
Mar 28, 2022
Perry Jim
74LS04N
Inquiry
Min.: 1 Mult.: 1
Quick Links
74LS04 Description
Each of the six independent gates in the 74LS04 executes the logic INVERT function. The output signals of the six inverters are diametrically opposed to their input signals. The phase of the input signal can be reversed by the inverter by 180 degrees. This circuit is utilized in analog circuits like audio amplifiers, clock oscillators, and so on. In electronic circuit design, inverters are frequently employed.
74LS04 Pinout
74LS04 CAD Model

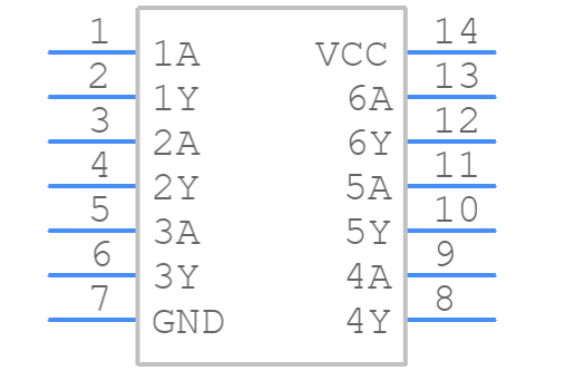

Symbol
3D Model
74LS04 Features
Voltage supply range: +4.75V to +5.25V
+7V is the maximum supplied voltage.
The maximum current that can be drawn through each gate output is 8mA.
TTL outputs that are completely devoid of lead
Maximum Time to Rise: 15ns
Maximum Fall Time: 15 seconds
Temperature range: 0°C to 70°C
74LS04 Functional Block Diagram
74LS04 Recommended Operating Conditions
| SN54S04 | SN74S04 | UNIT | |||||
| MIN NOM | MAX | MIN NOM | MAX | ||||
| VCC | Supply voltage | 4.5 | 5 | 5.5 | 4.75 5 | 5.25 | V |
| V|H | High-level input voltage | 2 | 2 | V | |||
| V|L | Low-level input voltage | C 8 | 0.8 | V | |||
| 'OH | High-level output current | -1 | -1 | mA | |||
| 'OL | Low-level output current | 20 | 20 | mA | |||
| Ta | Operating free-air temperature | -55 | 125 | 0 | 70 | °C | |
74LS04 Equivalents
| Part Number | Description | Manufacturer |
| GD54LS04LOGIC | Inverter, LS Series, 6-Func, 1-Input, TTL, PDIP14, | Goldstar Electron Co Ltd |
| SN74LS04NLOGIC | Inverter, LS Series, 6-Func, 1-Input, TTL, PDIP14, 646-06 | Motorola Semiconductor Products |
| SN74LS04N-00LOGIC | LS SERIES, HEX 1-INPUT INVERT GATE, PDIP14, PACKAGE-14 | Rochester Electronics LLC |
| SN74LS04JLOGIC | Hex inverters 14-CDIP 0 to 70 | Texas Instruments |
| M38510/30003SCALOGIC | Inverter, LS Series, 6-Func, 1-Input, TTL, CDIP14, CERAMIC, DIP-14 | Signetics |
| 74LS04ALOGIC | IC LS SERIES, HEX 1-INPUT INVERT GATE, PDIP14, Gate | NXP Semiconductors |
| GD74LS04LOGIC | Inverter, TTL, PDIP14, | LG Semicon Co Ltd |
| GD74LS04JLOGIC | Inverter, LS Series, 6-Func, 1-Input, TTL, CDIP14, | Goldstar Electron Co Ltd |
| HD74LS04PLOGIC | Inverter, LS Series, 6-Func, 1-Input, TTL, PDIP14, DP-14 | Hitachi Ltd |
| M38510/30003BCALOGIC | Inverter, LS Series, 6-Func, 1-Input, TTL, CDIP14, CERAMIC, DIP-14 | Motorola Semiconductor Products |
Specifications
74LS04N Tech Specifications
74LS04N Tech Specifications
RAYTHEON SEMICONDUCTOR 74LS04N technical specifications, attributes, parameters and parts with similar specifications to RAYTHEON SEMICONDUCTOR 74LS04N.
| Product Attribute | Attribute Value | |
|---|---|---|
| JESD-609 Code | e0 | |
| Terminal Finish | Tin/Lead (Sn/Pb) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peak Reflow Temperature (Cel) | NOT SPECIFIED | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED |
| Product Attribute | Attribute Value | |
|---|---|---|
| RoHS Status | Non-RoHS Compliant |
74LS04 Applications
1. Logic circuits.
2. Servers
3. Digital reluctance circuits and instruments.
4. Networking systems.
74LS04 Package
Frequently Asked Questions
What is 74LS04?
Each of the six independent gates in the 74LS04 executes the logic INVERT function. The output signals of the six inverters are diametrically opposed to their input signals. The phase of the input signal can be reversed by the inverter by 180 degrees. This circuit is utilized in analog circuits like audio amplifiers, clock oscillators, and so on. In electronic circuit design, inverters are frequently employed.
FAQ
What is 74LS04?
Each of the six independent gates in the 74LS04 executes the logic INVERT function. The output signals of the six inverters are diametrically opposed to their input signals. The phase of the input signal can be reversed by the inverter by 180 degrees. This circuit is utilized in analog circuits like audio amplifiers, clock oscillators, and so on. In electronic circuit design, inverters are frequently employed.
