7M48072002:Footprint, package, and features

CRYSTAL 48.0000MHZ 8PF SMD 7M48072002 is a kind of crystal with high precision and high stability. This passage is going to introduce 7M48072002 from the perspectives of manufacturer, description, and Package.

54

Feb 5, 2022

Molly Nell

CRYSTAL 48.0000MHZ 8PF SMD

7M48072002 is a kind of crystal with high precision and high stability. This passage is going to introduce 7M48072002 from the perspectives of manufacturer, description, and Package.

7M48072002

43222In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $1.00604$1.01
10+ $0.94909$9.49
100+ $0.89537$89.54
500+ $0.84469$422.35
1000+ $0.79688$796.88
Unit Price:$1.00604
Subtotal: $1.01
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

7M48072002 description

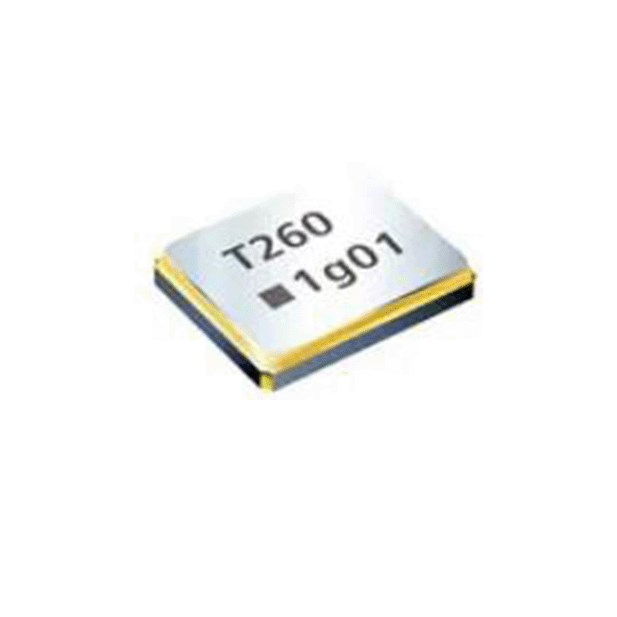

7M48072002 is an extremely small SMD type crystal unit with high precision and high-frequency stability, measuring 3.2x2.5x0.7mm. This quartz crystal is extremely good for reducing electromagnetic interference (EMI) and is offered in frequencies ranging from 10 ~ 114.285MHz with a ±30ppm tolerance. It can operate in -40° to 85° temperatures with an 18pF load capacitance and 3pF max shunt capacitance. These RoHS-compliant, lead-free TXC crystal units are ideal for wireless and Bluetooth communication devices, including DSLR cameras and tablets.

7M48072002 features

  • Frequency range: 10MHz to 114MHz

  • Ceramic SMD package

  • Seam sealing

  • External dimensions (mm)

  • L : 3.2 x W : 2.5 x H : 0.7

  • RoHS compliant & Pb free

  • ±30ppm frequency tolerance

  • 3pF max shunt capacitance

  • 18pF load capacitance

  • -40° - 85° operating temperature range

  • High precision, high-frequency stability

7M48072002 applications

  • Bluetooth, Wireless LAN

  • Smartphones and tablets

  • Display, TV

  • Computer peripherals

  • Consumer products

7M48072002 manufacturer

TXC is one of the largest crystal/oscillator manufacturers in the world. TXC's product line includes high-quality Dual-Inline-Package (DIP) and Surface Mount Devices (SMD) quartz crystals, automotive crystals, many different kinds of crystal oscillators, SAW devices, and timing modules.



7M48072002 CAD models

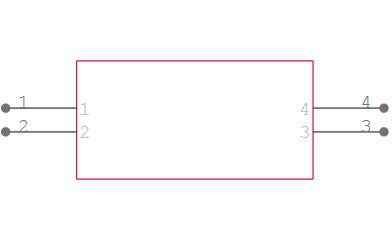

symbol

footprint

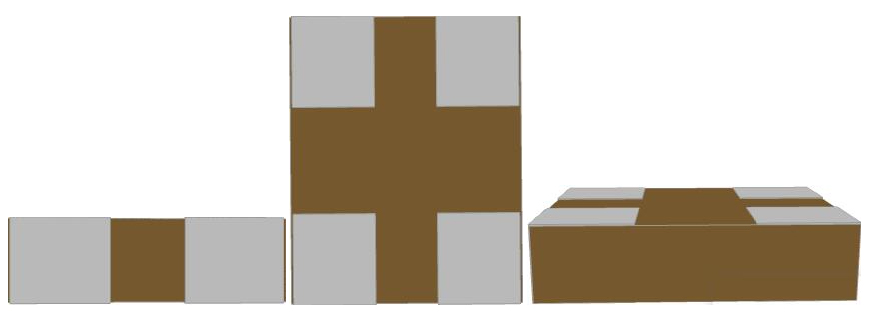

3D models

Specifications

TXC Corporation 7M48072002 technical specifications, attributes, parameters and parts with similar specifications to TXC Corporation 7M48072002.

7M48072002 Tech Specifications

TXC Corporation 7M48072002 technical specifications, attributes, parameters and parts with similar specifications to TXC Corporation 7M48072002.

Product Attribute Attribute Value
Factory Lead Time21 Weeks
MountSurface Mount
Mounting TypeSurface Mount
Package / Case4-SMD, No Lead
Usage LevelIndustrial grade
Operating Temperature-40°C~85°C
PackagingTape & Reel (TR)
Series7M
Published2010
Size / Dimension0.126Lx0.098W 3.20mmx2.50mm
Product Attribute Attribute Value
JESD-609 Codee4
Pbfree Codeyes
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
TypeMHz Crystal
Terminal FinishGold (Au) - with Nickel (Ni) barrier
Additional FeatureAT-CUT; TR, 7 INCH
Frequency48MHz
Frequency Stability±15ppm
Physical DimensionL3.2XB2.5XH0.7 (mm)/L0.126XB0.098XH0.028 (inch)
Product Attribute Attribute Value
Operating Frequency48MHz
Load Capacitance8pF
Frequency Tolerance±10ppm
Drive Level100 µW
Height787.4μm
Height Seated (Max)0.031 0.80mm
RoHS StatusRoHS Compliant
Lead FreeLead Free
0 Products View Similar

7M48072002 package

1. The storage time to be 1-year maximum.

2. Don't be caught in the rain.

3. The storage environment shall be 5℃ ~40℃ temperature and 30% ~ 75%RH humidity and free from the sunshine.

4. If customers have special requirements, we can paste labels according to them.



Reel Quantity :                                         Box Size:

1. Reel X 6 (6 Reels)                                 1. L200 X W200 X H140mm

2. Reel X 12 (12 Reels)                             2. L200 X W200 X H250mm

3. Reel X 25 (12 Reels + 13 Reels)           3. L400 X W200 X H250mm

4. Reel X 50 ( 12 Reelsx2 + 13 Reelsx2 )  4. L400 X W400 X H280mm



Frequently Asked Questions

What is 7M48072002?
7M48072002 is an extremely small SMD type crystal unit with high precision and high-frequency stability, measuring 3.2x2.5x0.7mm.
Can 7M48072002 be operated in the temperature of 100℃？
No, it is only suitable for -40-80℃.
How many pins does 7M48072002 have?
It has 4 pins.
Where does 7M48072002 come from?
It is made by TXC Corporation.
Where can we find it in our daily life?
It can be found in our daily life in many places, such as TV, computer, Bluetooth and so on.
FAQ
What is 7M48072002?
7M48072002 is an extremely small SMD type crystal unit with high precision and high-frequency stability, measuring 3.2x2.5x0.7mm.
Can 7M48072002 be operated in the temperature of 100℃？
No, it is only suitable for -40-80℃.
How many pins does 7M48072002 have?
It has 4 pins.
Where does 7M48072002 come from?
It is made by TXC Corporation.
Where can we find it in our daily life?
It can be found in our daily life in many places, such as TV, computer, Bluetooth and so on.
