93LC66C Serial EEPROM: Pinout, Equivalent and Datasheet

Memory 93LC66C Non-Volatile 8-SOIC (0.154, 3.90mm Width) 4Kb 512 x 8 256 x 16 EEPROM -40°C~85°C TA 2.5V~5.5V SPI 2.5V 3MHz 1.27mm EEPROM Serial-Microwire 4K-bit 512 x 8/256 x 16 3.3V/5V 8-Pin SOIC N Tube

261

Nov 26, 2021

Morgan Davy

What Is EEPROM?



Memory 93LC66C Non-Volatile 8-SOIC (0.154, 3.90mm Width) 4Kb 512 x 8 256 x 16 EEPROM -40°C~85°C TA 2.5V~5.5V SPI 2.5V 3MHz 1.27mm EEPROM Serial-Microwire 4K-bit 512 x 8/256 x 16 3.3V/5V 8-Pin SOIC N Tube

The Microchip Technology Inc. 93LC66C devices are 4Kbit low-voltage serial Electrically Erasable PROMs (EEPROM). Word-selectable devices 93LC66C are dependent upon external logic levels driving the ORG pin to set word size. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.



93LC66C-I/SN

9000In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $1.30591$1.31
10+ $1.23199$12.32
100+ $1.16226$116.23
500+ $1.09647$548.24
1000+ $1.0344$1034.4
Unit Price:$1.30591
Subtotal: $1.31
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

93LC66C Pinout

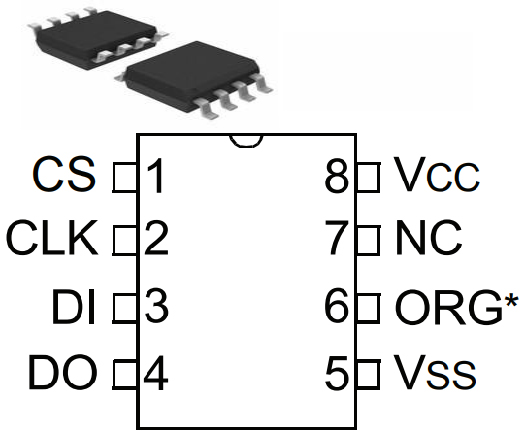

The following figure is the diagram of 93LC66C pinout.

Pinout

93LC66C CAD Model

The followings are 93LC66C Symbol, Footprint, and 3D Model.

PCB Symbol

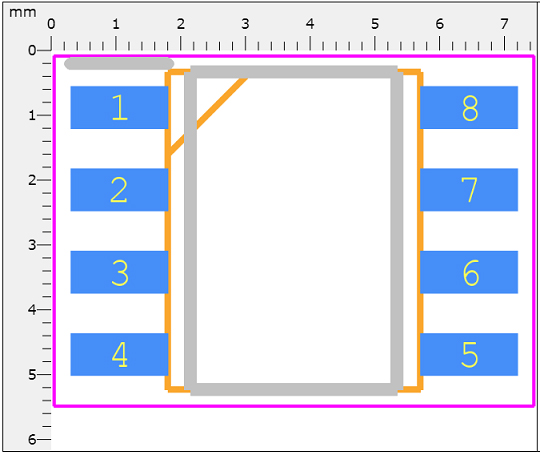

PCB Footprint

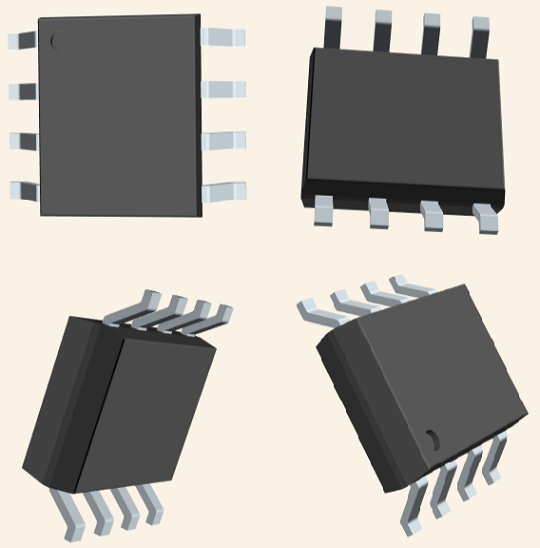

3D Model

93LC66C Overview

The Microchip Technology Inc. 93LC66C devices are 4Kbit low-voltage serial Electrically Erasable PROMs (EEPROM). Word-selectable devices 93LC66C are dependent upon external logic levels driving the ORG pin to set word size. Advanced CMOS technology makes these devices ideal for low-power, nonvolatile memory applications. The entire 93XX Series is available in standard packages including 8-lead PDIP and SOIC, and advanced packaging including 8-lead MSOP, 6-lead SOT-23, 8-lead 2x3 DFN/TDFN and 8-lead TSSOP. All packages are Pb-free (Matte Tin) finish.

This article provides you with a basic overview of the 93LC66C Serial EEPROM, including its pin descriptions, features and specifications, etc., to help you quickly understand what 93LC66C is.

93LC66C Features

● Low-Power CMOS Technology

● ORG Pin to Select Word Size for ‘66C’ Version

● 512 x 8-bit Organization ‘A’ Devices (no ORG)

● 256 x 16-bit organization ‘B’ Devices (no ORG)

● Self-tImed Erase/Write Cycles (including Auto-Erase)

● Automatic Erase All (ERAL) Before Write All (WRAL)

● Power-On/Off Data Protection Circuitry

● Industry Standard 3-Wire Serial I/O

● Device Status Signal

● Sequential Read Function

● 1,000,000 Erase/Write Cycles

● Data Retention > 200 Years

● Pb-free and RoHS Compliant

● Temperature Ranges Supported:

   ◆ Industrial (I) -40°C to +85°C

   ◆ Automotive (E) -40°C to +125°C

Specifications

Microchip Technology 93LC66C-I/SN technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology 93LC66C-I/SN.

93LC66C-I/SN Tech Specifications

Microchip Technology 93LC66C-I/SN technical specifications, attributes, parameters and parts with similar specifications to Microchip Technology 93LC66C-I/SN.

Product Attribute Attribute Value
Factory Lead Time6 Weeks
Contact PlatingTin
Package / Case8-SOIC (0.154, 3.90mm Width)
Mounting TypeSurface Mount
MountSurface Mount
Number of Pins8Pins
Memory TypesNon-Volatile
Published2005
PackagingTube
Operating Temperature-40°C~85°C TA
JESD-609 Codee3
Pbfree Codeyes
Part StatusActive
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations8Terminations
ECCN CodeEAR99
Voltage - Supply2.5V~5.5V
Product Attribute Attribute Value
Terminal PositionDUAL
Peak Reflow Temperature (Cel)260
Number of Functions1Function
Supply Voltage2.5V
Terminal Pitch1.27mm
Time@Peak Reflow Temperature-Max (s)40
Base Part Number93LC66C
Pin Count8
Supply Voltage-Max (Vsup)5.5V
Power Supplies3/5V
InterfaceSerial
Memory Size4Kb 512 x 8 256 x 16
Nominal Supply Current2mA
Clock Frequency3MHz
Access Time200 ns
Memory FormatEEPROM
Memory InterfaceSPI
Product Attribute Attribute Value
Organization256X16
Write Cycle Time - Word, Page6ms
Density4 kb
Standby Current-Max0.000001A
Serial Bus TypeMICROWIRE
Endurance1000000 Write/Erase Cycles
Write Cycle Time-Max (tWC)6ms
Data Retention Time-Min200
Write ProtectionSOFTWARE
Width3.9mm
Length4.9mm
Height1.5mm
RoHS StatusROHS3 Compliant
Radiation HardeningNo
REACH SVHCNo SVHC
Lead FreeLead Free
0 Products View Similar

93LC66C Functional Block Diagram

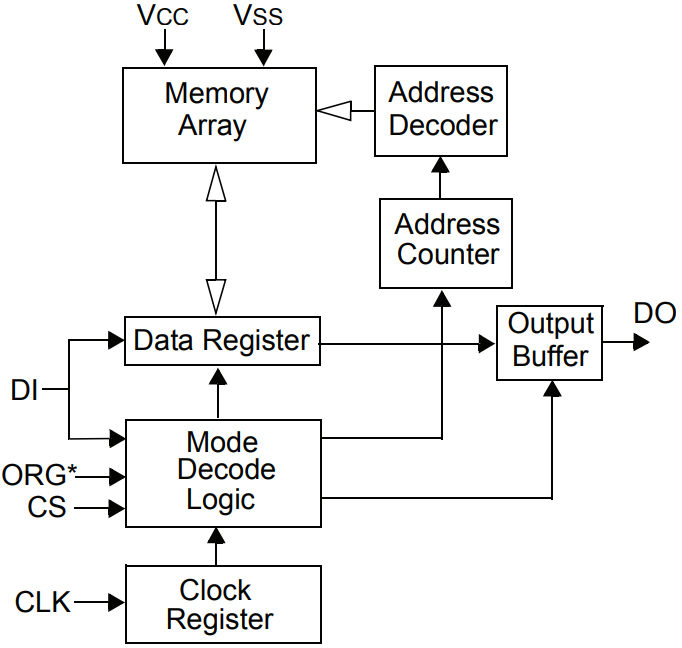

The following is the Block Diagram of 93LC66C.

Block Diagram

93LC66C Equivalent

           Model number                 Manufacturer                                             Description
93LC66C-E/PG Microchip Technology Inc 256 X 16 MICROWIRE BUS SERIAL EEPROM, PDIP8, 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8
93LC66CX-I/P Microchip Technology Inc 256 X 16 MICROWIRE BUS SERIAL EEPROM, PDIP8, 0.300 INCH, ROHS COMPLIANT, PLASTIC, DIP-8
93LC66CT-E/SN Microchip Technology Inc 256 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8
93LC66CX-I/ST Microchip Technology Inc 256 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-8
93LC66CX-E/MS Microchip Technology Inc 256 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, ROHS COMPLIANT, PLASTIC, MSOP-8
93LC66CX-I/SNG Microchip Technology Inc 256 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8
93LC66CX-E/PG Microchip Technology Inc 256 X 16 MICROWIRE BUS SERIAL EEPROM, PDIP8, 0.300 INCH, LEAD FREE, PLASTIC, MS-001, DIP-8
93LC66CX-E/ST Microchip Technology Inc 256 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 4.40 MM, ROHS COMPLIANT, PLASTIC, TSSOP-8
93LC66C-E/SN Microchip Technology Inc 256 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8
93LC66C-E/SNG Microchip Technology Inc 256 X 16 MICROWIRE BUS SERIAL EEPROM, PDSO8, 3.90 MM, ROHS COMPLIANT, PLASTIC, SOIC-8

93LC66C Package Marking Information

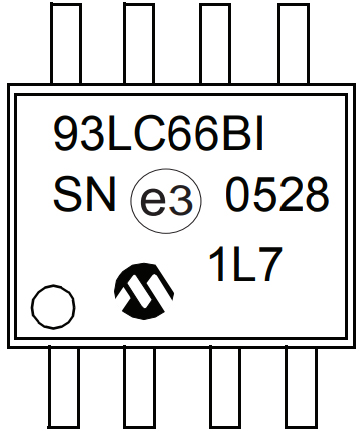

The following is the Package Marking Information of 93LC66C.

8-Lead SOIC



Example

93LC66C Recommended Land Pattern

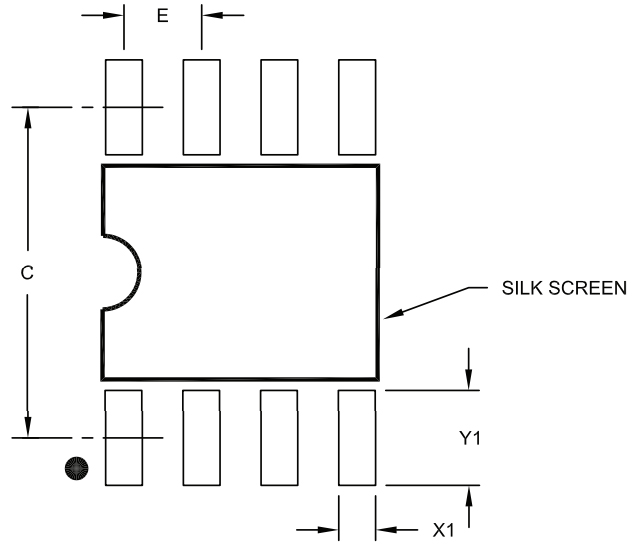

The following is the Recommended Land Pattern of 93LC66C.

Recommended Land Pattern

93LC66C Manufacturer

Microchip Technology Inc. is a leading provider of microcontroller and analog semiconductors, providing low-risk product development, lower total system cost and faster time to market for thousands of diverse customer applications worldwide. Headquartered in Chandler, Arizona, Microchip offers outstanding technical support along with dependable delivery and quality.

Datasheet PDF

93LC66C-I/SN Documents

Download datasheets and manufacturer documentation for 93LC66C-I/SN

Frequently Asked Questions

What is the essential property of the 93LC66C?
The 93LC66C devices are 4Kbit low-voltage serial Electrically Erasable PROMs (EEPROM). Word-selectable devices 93LC66C are dependent upon external logic levels driving the ORG pin to set word size.
In the Erase/Write Disable (EWDS) state, how to power up the device?
The 93LC66C powers up in the Erase/Write Disable (EWDS) state. All Programming modes must be preceded by an Erase/Write Enable (EWEN) instruction. Once the EWEN instruction is executed, programming remains enabled until an EWDS instruction is executed or Vcc is removed from the device.
