The A1015 is a PNP general purpose transistor; its low voltage and low power capability make it more reliable for usage in a wide range of typical applications. The article will introduce the features, circuit and other details of the device.
136
Mar 18, 2022
Glenn Tracy
A1015 Quick Data By LearnElectronx
The A1015 is a PNP general purpose transistor; its low voltage and low power capability make it more reliable for usage in a wide range of typical applications. The article will introduce the features, circuit and other details of the device.
A1015
The A1015 is a PNP general purpose transistor; its low voltage and low power capability make it more reliable for usage in a wide range of typical applications.

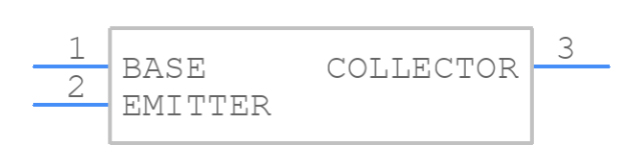

Symbol

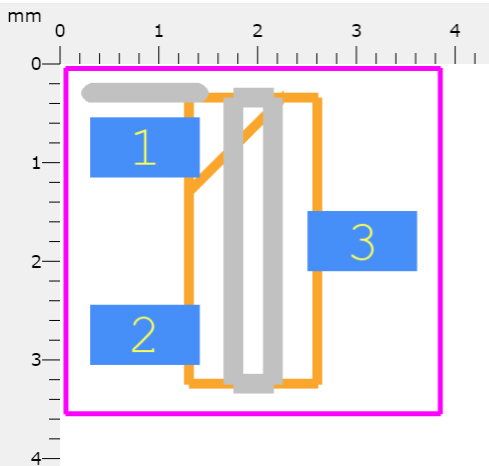

Footprint

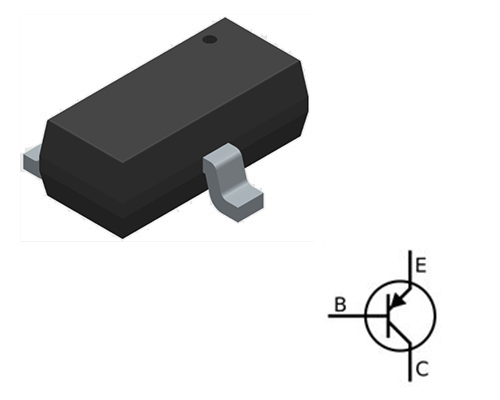

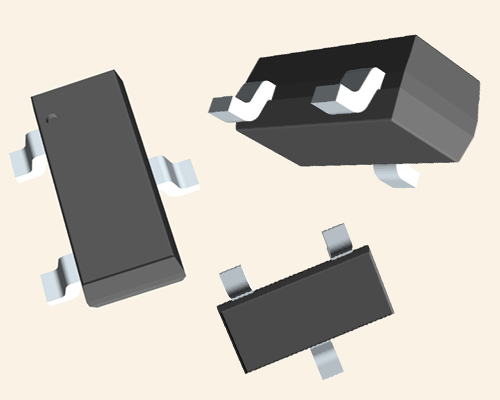

3D Model
1. High voltage and high current
2. Excellent hFE Linearity
3. Complementary to C1815
Changjiang Electronics Tech (CJ) A1015 technical specifications, attributes, parameters and parts with similar specifications to Changjiang Electronics Tech (CJ) A1015.
| Product Attribute | Attribute Value | |
|---|---|---|
| Package / Case | SOT-23(SOT-23-3) | |
| Current-Collector (Ic) (Max) | 150mA | |
| Packaging | Tape & Reel (TR) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Power - Max | 200mW | |
| Transistor Type | PNP | |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Product Attribute | Attribute Value | |
|---|---|---|
| RoHS Status | RoHS Compliant |
Long Technology was founded in 1972 and successfully listed on the Shanghai Stock Exchange in 2003. Changjiang Electronics has become China's No. 1 and No. 3 integrated circuit packaging and testing firm after more than 40 years of development. Changjiang Technologies offers package design, product development, and certification, as well as a comprehensive variety of professional manufacturing services ranging from chip testing through packing and shipping. It has been recognized as a key national high-tech enterprise, China's top 100 electronics companies, Strategic alliance chairman unit, China Famous Brand, China's export product quality demonstration enterprises, with the only high-density integrated circuit National Engineering Laboratory, state-level enterprise technology center, and post-doctoral research station.
