A1688 High Accuracy Sensor IC：Datasheet, Pinout, Features and Benefits

The A1688 is a Hall-effect-based integrated circuit (IC) that provides a user-friendly solution for true zero-speed digital ring magnet and gear tooth sensing in two-wire applications. The A1688 is offered in the UB package, which integrates the IC and a high-temperature ceramic capacitor in a single over-moulded SIP package. The integrated capacitor provides enhanced EMC performance with reduced external components.

Allegro MicroSystems A1688LUBTN-H-T technical specifications, attributes, parameters and parts with similar specifications to Allegro MicroSystems A1688LUBTN-H-T.

• Integrated capacitor reduces the need for external EMI protection components

• Wide leads facilitate ease of assembly

• True zero-speed operation

• Automatic Gain Control (AGC) for air gap independent switch points

• Automatic Offset Adjustment (AOA) for signal processing optimization

• Large operating air gap range

• Internal current regulator for two-wire operation

• Under-voltage lockout

• Single-chip sensing IC for high reliability

• On-chip voltage regulator with wide operating voltage range and stability in the presence of a variety of complex load impedances

• Fully synchronous digital logic with Scan and IDDQ testing

Functional Block Diagram

Typical Application Circuit

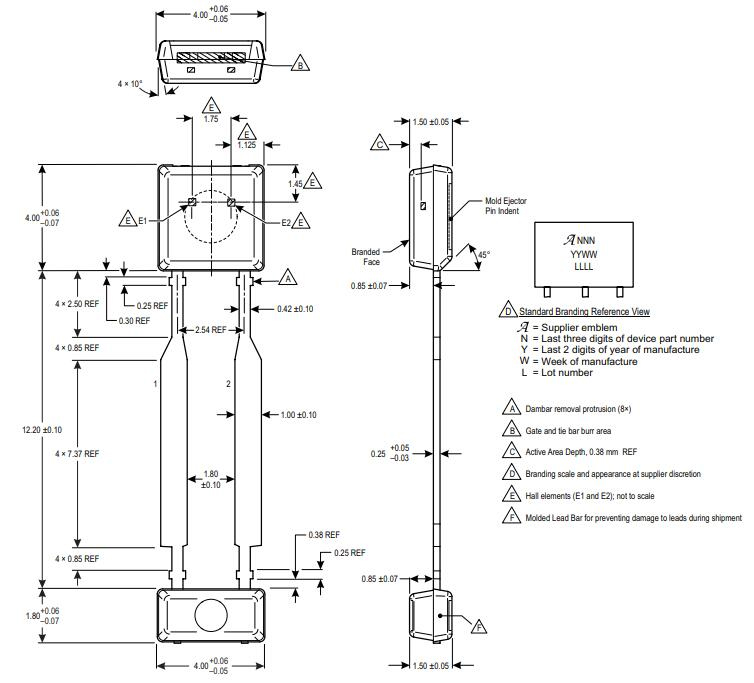

Package

As a leading company in the development, manufacture and market of high-performance semiconductors, Allegro MicroSystems, LLC provides high-growth applications for the automotive market and also stays focus on consumer/communications, automation and industrial solutions. Headquartered in Worcester, Massachusetts (USA) Allegro locates its design, applications and sales support centres worldwide.

Download datasheets and manufacturer documentation for Allegro MicroSystems A1688LUBTN-H-T.
