A6K is a DIP Switch. So this article is going to talk about more detailed information about A6K.
HomeCommunitySubjectA6K SWITCH ROTARY DIP HEX 25MA 24V[Video]: Datasheet, Features, and Output Codes
A6K SWITCH ROTARY DIP HEX 25MA 24V[Video]: Datasheet, Features, and Output Codes
OMRON ELECTRONIC COMPONENTS A6K-102RF Rotary Switch, A6K Series, Non Illuminated, 25 mA A6K is a DIP Switch. So this article is going to talk about more detailed information about A6K.
79
Mar 25, 2022
Derrick Nelly
A6K-102RF
180In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $2.82193 | $2.82 |
| 10+ | $2.6622 | $26.62 |
| 100+ | $2.51151 | $251.15 |
| 500+ | $2.36935 | $1184.68 |
| 1000+ | $2.23524 | $2235.24 |
Unit Price:$2.82193
Subtotal: $2.82
Quick Links
Overview of A6K
A6K is a DIP Switch with a current rating of 25mA. DIP Switch is an electromechanical device requiring a user to manually move the actuator so that a different electronic circuit is activated or deactivated. Commonly mounted on a PCB or breadboard, DIP switches allow users to quickly preconfigure or toggle an electronic device between a variety of settings or operating modes. The operating temperature of A6K is -30°C~80°C.
A6K Features
● Mounting space was reduced by 50%, compared with 10 mm square types.
● Surface/through-hole mounting terminals are available in both Top and Side-actuated types.
● Gold-plated contacts ensure high reliability.
● Embossed 100 pcs reel type is recommended for flexible demand.
Specifications
A6K-102RF Tech Specifications
A6K-102RF Tech Specifications
Omron Electronics Inc-EMC Div A6K-102RF technical specifications, attributes, parameters and parts with similar specifications to Omron Electronics Inc-EMC Div A6K-102RF.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 16 Weeks | |
| Contact Plating | Gold | |
| Mount | PCB, Through Hole | |
| Mounting Type | Through Hole | |
| Weight | 400mg | |
| ElectricalLife | 20,000 Steps | |
| Voltage Rated | 24VDC | |
| Operating Temperature | -30°C~80°C | |
| Packaging | Tube | |
| Series | A6K | |
| Published | 2008 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Termination | PC Pins | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Positions | 10Positions | |
| HTS Code | 8536.50.90.20 | |
| Voltage - Rated DC | 24V | |
| Pitch | 0.100 2.54mm Full | |
| Orientation | Straight | |
| Terminal Pitch | 2.54mm | |
| Current Rating | 25mA | |
| Termination Style | PC Pin | |
| Actuator Type | Rotary for Tool | |
| Circuit | BCD | |
| Switch Function | BINARY CODED DECIMAL | |
| Contact Resistance | 200mOhm | |
| Insulation Resistance | 100MOhm | |
| Contact Current(DC)-Max | 0.025A | |
| Throw Configuration | SP10T |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Voltage Rating (DC) | 24V | |
| Switch Type | ROTARY CODED SWITCH | |
| Contact Current Rating | 25mA | |
| Illumination Type | Illuminated | |
| Number of Switch Sections | 1Switch Section | |
| Switch Action | LATCHED | |
| Washable | No | |
| Actuator Level | Flush, Recessed | |
| Height | 7.2mm | |
| Length | 0.283 7.20mm | |
| Width | 7.2mm | |
| Actuator Length | 0m | |
| Height Above Board | 0.118 3.00mm | |
| REACH SVHC | Unknown | |
| RoHS Status | RoHS Compliant |
A6K Electrical Characteristics
| Rating (resistive load) | 25 mA at 24 VDC 10 μA (minimum current) at 3.5 VDC |
|
| Ambient operating temperature | –30 to +80°C at 60% max. (with no icing or condensation) | |
| Ambient operating humidity | 35% to 95% (at +5 to +35°C) | |
| Insulation resistance | 100 MΩ min. (at 250 VDC with insulation tester) | |
| Contact resistance (initial value) | 200 mΩ max. | |
| Dielectric strength | Between terminals | 250 VAC for 1 min |
| Vibration resistance | Malfunction | 10 to 55 Hz, 1.5-mm double amplitude |
| Shock resistance | Malfunction | 300 m/s2 min. |
| Durability | Electrical | 20,000 steps min |
| Washing | Not possible | |
| Degree of protection | IEC IP60 | |
| Operating torque | 1.96 × 10−2 N·m {2 gf·m} max | |
| Weight (See note.) | Through-hole mounting terminals | Top-actuated, flat: Approx. 0.4 g, Side-actuated, flat: Approx. 0.7 g |
| Surface mounting terminals | Top-actuated, flat: Approx. 0.4 g, Side-actuated, flat: Approx. 0.4 g | |
A6K Output Codes

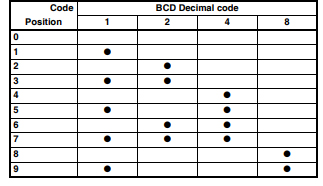

10-position Models

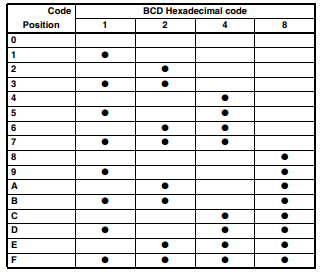

16-position Models
A6K Manufacturer
Omron Electronic Components has long been a leader in the production and distribution of innovative electronic components. Relays, switches, connectors, MEMS flow sensors, pressure sensors, and optical components are among the many product categories. Omron Electronic Components is Omron Corporation's America's business, a $7 billion global leader in electronic and control system components and services. Omron's wide range of products can be found in communications, transportation, HVAC, appliances, industrial automation, consumer electronics, test and measurement, and gaming applications all around the world. Regional sales professionals, inside sales representatives, technical sales assistants, customer service staff, and an authorized distributor network make up Omron Electronics Components' vast sales network.
Datasheet PDF
A6K-102RF Documents
A6K-102RF Documents
Download datasheets and manufacturer documentation for A6K-102RF
Other Related Documents
How to Read Date Codes
Datasheets
A6K, A6KS Series
Frequently Asked Questions
What’s the operating temperature of A6K?
-30°C~80°C.
What’s the Max Voltage Rating of A6K?
24V.
What’s the Contact Current Rating of A6K?
25mA.
What’s the packaging way of A6K?
Tube.
What’s the Contact Resistance of A6K?
200mOhm.
FAQ
What’s the operating temperature of A6K?
-30°C~80°C.
What’s the Max Voltage Rating of A6K?
24V.
What’s the Contact Current Rating of A6K?
25mA.
What’s the packaging way of A6K?
Tube.
What’s the Contact Resistance of A6K?
200mOhm.
