A940 is a TO-220 packaged PNP BJT transistor. This article is going to explain pinout, features, applications, equivalents, and other details about the A940 transistor.
A940C
2SA940 is a PNP BJT transistor in a TO-220 package. This transistor is intended for general-purpose amplification and vertical output circuits, although it is not confined to these applications and can be utilized in a wide range of other applications. It also has a fast switching capability, which makes it excellent for applications that require quick switching. It can drive a maximum load of -1.5A and a maximum load voltage of -150V when used as a switch.
A940 Pinout
FeiHong A940C technical specifications, attributes, parameters and parts with similar specifications to FeiHong A940C.
FeiHong A940C technical specifications, attributes, parameters and parts with similar specifications to FeiHong A940C.
| Product Attribute | Attribute Value | |
|---|---|---|
| Package / Case | TO-220 | |
| Current-Collector (Ic) (Max) | 1.5A |
| Product Attribute | Attribute Value | |
|---|---|---|
| Packaging | Tube-packed | |
| Power - Max | 25W |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Collector Emitter Breakdown (Max) | 150V | |
| RoHS Status | RoHS Compliant |
Type: PNP
Collector-Emitter Voltage: -150 V
Collector-Base Voltage: -150 V
Emitter-Base Voltage: -5 V
Collector Current: -1.5 A
Collector Dissipation: 25 W
DC Current Gain (hfe): 40 to 140
Transition Frequency: 4 MHz
Operating and Storage Junction Temperature Range: -55 to +150 °C
Package: TO-220
Darlington Pair
Audio Amplifiers
Vertical Output Circuitry
Switching Loads under -1.5A
Many general-purpose applications
2SC2073, 2SA1304, 2SA740, 2SA940 A, 2SB546, 2SB546A, 2SB547, 2SB630, KSA1304, KSA940, KSB546, MJE15031, MJE15031G, MJE5850, MJE5850G, MJF15031, MJF15031G
The A940 is primarily intended for use in vertical output circuitry and general-purpose audio amplification, although it is not confined to these uses and can be utilized for a wide range of other applications. It can also be used as a switch to drive a wide range of loads under -1.5A, such as high-power transistors, high-power LEDs, Relays, ICs, and circuit components. Its general-purpose audio amplification applications include audio amplifiers and high-power audio amplifier stages.
It is recommended that you do not utilize a component to its absolute maximum ratings and instead use it 20 percent below those ratings for long-life performance. The same is true for the A940 transistor; the transistor's maximum collector current is -1.5A, therefore do not drive a load of more than 1.2A. Because the maximum collector to emitter voltage is -150V, do not drive loads higher than -120V. Use a proper heat sink with the transistor, and always store or operate it at temperatures between -55 and +150 degrees Celsius.

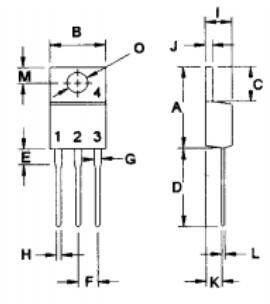

A940 Package Dimensions
Toshiba is a world leader and innovator in pioneering high technology, a diversified manufacturer and marketer of advanced electronic and electrical products spanning information & communications systems; digital consumer products; electronic devices and components; power systems, including nuclear energy; industrial and social infrastructure systems; and home appliances. Toshiba was founded in 1875, and today operates a global network of more than 740 companies, with 204,000 employees worldwide and annual sales surpassing 6.3 trillion yen (US$68 billion).
