Reliable AD5592RBRUZ Supplier and AD5592RBRUZ Distributor in China - Rantle East Electronic
Data Acquisition - ADCs/DACs - Special Purpose 16-TSSOP (0.173, 4.40mm Width) -40°C~105°C 2.7V~5.5V AD5592 Single IC DAC/ADC 12BIT OCT SPI 16TSSOP
AD5592RBRUZ is an integrated circuit. This article is going to introduce pinout, applications, features, and more details about AD5592RBRUZ.
AD5592RBRUZ
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $12.17728 | $12.18 |
| 10+ | $11.488 | $114.88 |
| 100+ | $10.83774 | $1083.77 |
| 500+ | $10.22428 | $5112.14 |
| 1000+ | $9.64555 | $9645.55 |
The AD5592RBRUZ has eight I/Ox pins (I/O0 to I/O7) that can be independently configured as digital-to-analog converter (DAC) outputs, analog-to-digital converter (ADC) inputs, digital outputs, or digital inputs. When an I/Ox pin is configured as an analog output, it is driven by a 12-bit DAC. The output range of the DAC is 0 V to VREF or 0 V to 2 × VREF. When an I/Ox pin is configured as an analog input, it is connected to a 12-bit ADC via an analog multiplexer.
8-channel, configurable ADC/DAC/GPIO
Configurable as any combination of 8 × 12-bit DAC channels, 8 × 12-bit ADC channels, 8 × general-purpose digital input/output pins
Integrated temperature sensor
SPI interface
Available in 16-ball, 2 mm × 2 mm WLCSP, 16-lead, 3 mm × 3 mm LFCSP, 16-lead TSSOP
AD5592RBRUZ Pinout

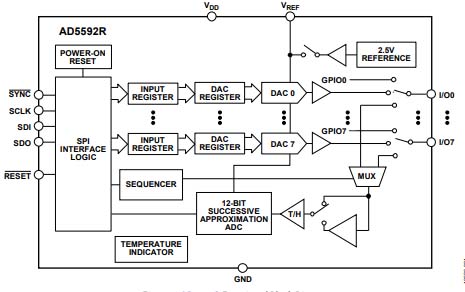

AD5592RBRUZ Block Diagram
AD5592RBRUZ 3D Model

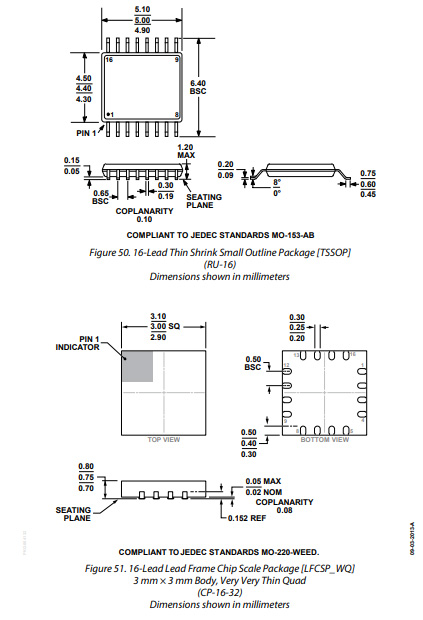

AD5592RBRUZ Outline Dimension
Control and monitoring
General-purpose analog and digital inputs/outputs
Data Acquisition Systems
Analog Devices (NASDAQ: ADI) is a world leader in the design, manufacture, and marketing of a broad portfolio of high-performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs) used in virtually all types of electronic equipment. Since our inception in 1965, we have focused on solving the engineering challenges associated with signal processing in electronic equipment. Used by over 100,000 customers worldwide, our signal processing products play a fundamental role in converting, conditioning, and processing real-world phenomena such as temperature, pressure, sound, light, speed, and motion into electrical signals to be used in a wide array of electronic devices.
Download datasheets and manufacturer documentation for Analog Devices Inc. AD5592RBRUZ.
Download datasheets and manufacturer documentation for AD5592RBRUZ
