AD5700 HART Modem: Pinout, Features and Datasheet

The following figure is the diagram of AD5700 pinout.

Pinout

The followings are AD5700 Symbol, Footprint, and 3D Model.

PCB Symbol

PCB Footprint

3D Model

The AD5700 is single-chip solution, designed and specified to operate as a HART® FSK half-duplex modem, complying with the HART physical layer requirements. The AD5700 integrates all of the necessary filtering, signal detection, modulating, demodulating and signal generation functions, thus requiring few external components. The maximum supply current consumption is 115µA, making the AD5700 an optimal choice for lowpower loop-powered applications. Transmit waveforms are phase continuous 1200 Hz and 2200 Hz sinusoids. The AD5700 contains accurate carrier detect circuitry and use a standard UART interface. The AD5700 enables quick and easy deployment of a robust HART-compliant system.

This article provides you with a basic overview of the AD5700 HART Modem, including its pin descriptions, features and specifications, etc., to help you quickly understand what AD5700 is.

● HART-compliant fully integrated FSK modem

● 1200 Hz and 2200 Hz sinusoidal shift frequencies

● 115 µA maximum supply current in receive mode

● Suitable for intrinsically safe applications

● Integrated receive band-pass filter

   ◆ Minimal external components required

● Clocking optimized for various system configurations

   ◆ Ultralow power crystal oscillator (60 µA maximum)

   ◆ External CMOS clock source

● Buffered HART output—extra drive capability

● 8 kV HBM ESD rating

● 1.71 V to 5.5 V power supply

● 1.71 V to 5.5 V interface

● −40°C to +125°C operation

● 4 mm × 4 mm LFCSP package

● HART physical layer compliant

● UART interface

Analog Devices Inc. AD5700BCPZ-R5 technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. AD5700BCPZ-R5.

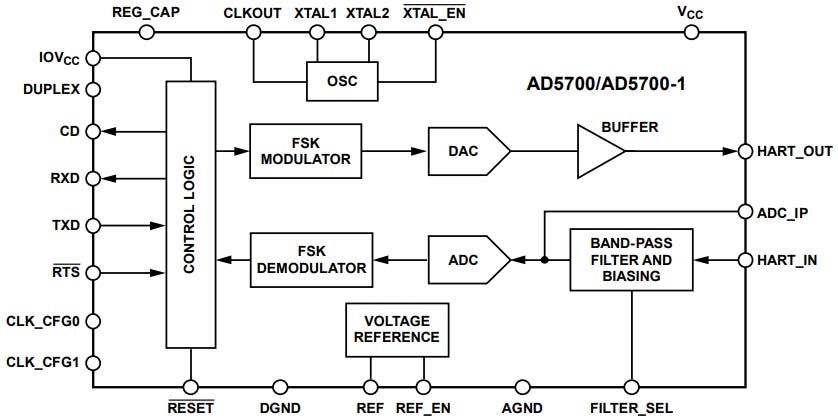

The following is the Block Diagram of AD5700.

Functional Block Diagram

● Field transmitters

● HART multiplexers

● PLC and DCS analog I/O modules

● HART network connectivity

The following diagram shows the AD5700 package.

24-Lead Lead Frame Chip Scale Package [LFCSP_WQ]

Analog Devices (NASDAQ: ADI) is a world leader in the design, manufacture, and marketing of a broad portfolio of high performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs) used in virtually all types of electronic equipment. Since our inception in 1965, we have focused on solving the engineering challenges associated with signal processing in electronic equipment. Used by over 100,000 customers worldwide, our signal processing products play a fundamental role in converting, conditioning, and processing real-world phenomena such as temperature, pressure, sound, light, speed, and motion into electrical signals to be used in a wide array of electronic devices.

Download datasheets and manufacturer documentation for Analog Devices Inc. AD5700BCPZ-R5.
