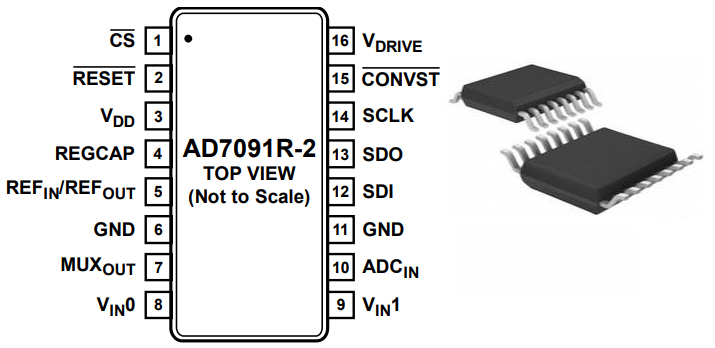

AD7091R-2 SAR ADC: Pinout, Features and Datasheet

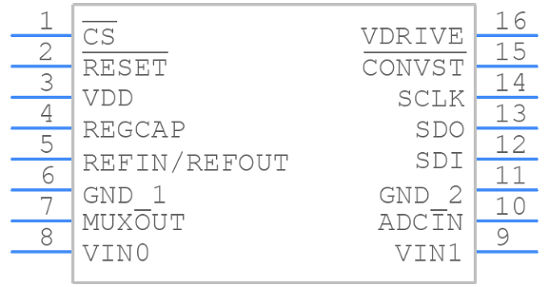

PCB Symbol

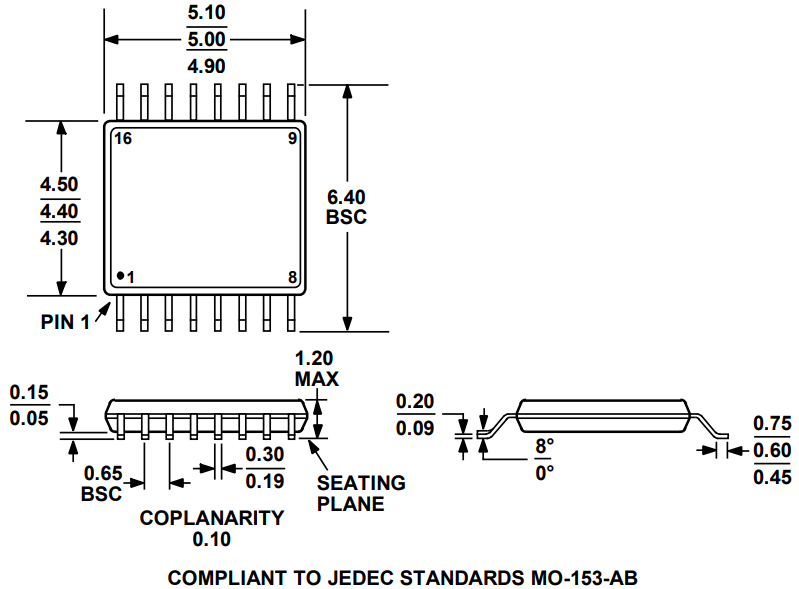

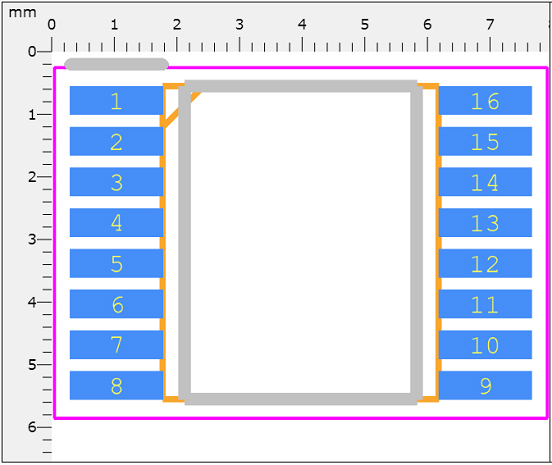

PCB Footprint

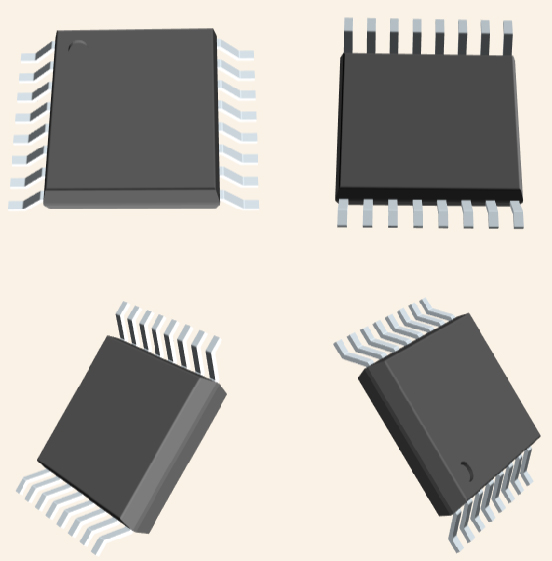

3D Model

The AD7091R-2 is a multichannel 12-bit, ultralow power, successive approximation analog-to-digital converter (ADC) that is available in two analog input channel options. The AD7091R-2 operates from a single 2.7 V to 5.25 V power supply and are capable of achieving a sampling rate of 1 MSPS. The AD7091R-2 offers up to eight single-ended analog input channels with a channel sequencer that allows a preprogrammed selection of channels to be converted sequentially. The AD7091R-2 also features an on-chip conversion clock, an on-chip accurate 2.5 V reference, and a high speed serial interface. The AD7091R-2 has a serial port interface (SPI) that allows data to be read after the conversion while achieving a 1 MSPS throughput rate. The AD7091R-2 uses advanced design techniques to achieve ultralow power dissipation at high throughput rates. It also features flexible power management options. An on-chip configuration register allows the user to set up different operating conditions. These include power management, alert functionality, busy indication, channel sequencing, and general-purpose output pins. The MUX_OUT and ADC_IN pins allow signal conditioning of the multiplexer output prior to acquisition by the ADC.

This article provides you with a basic overview of the AD7091R-2 SAR ADC, including its pin descriptions, features and specifications, etc., to help you quickly understand what AD7091R-2 is.

● Ultralow system power

   ◆ Flexible power/throughput rate management

   ◆ Normal mode

       ▼ 1.4 mW at 1 MSPS

   ◆ Power-down mode

       ▼ 550 nA typical at V_DD = 5.25 V

       ▼ 435 nA typical at V_DD = 3 V

● High performance

   ◆ 1 MSPS throughput with no latency/pipeline delay

   ◆ SNR: 70 dB typical at 10 kHz input frequency

   ◆ THD: −80 dB typical at 10 kHz input frequency

   ◆ INL: ±0.7 LSB typical, ±1.0 LSB maximum

● Small system footprint

   ◆ On-chip accurate 2.5 V reference, 5 ppm/°C typical drift

   ◆ MUX_OUT/ADC_IN to allow single buffer amplifier

   ◆ Daisy-chain mode

   ◆ 16-lead TSSOP package

● Easy to use

   ◆ SPI/QSPI™/MICROWIRE™/DSP compatible digital interface

   ◆ Integrated programmable channel sequencer

● Built in features for control and monitoring applications

● Wide operating range

   ◆ Temperature range: −40°C to +125°C

   ◆ Specified for V_DD of 2.7 V to 5.25 V

Analog Devices Inc. AD7091R-2BRUZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. AD7091R-2BRUZ.

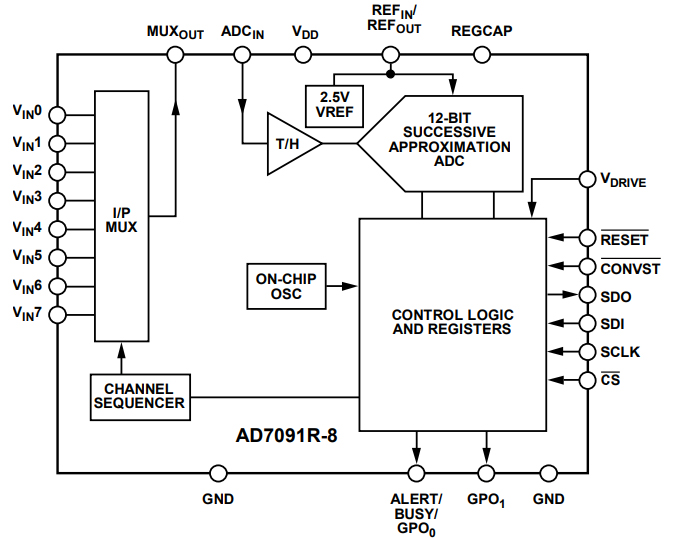

Functional Block Diagram
