ANALOG DEVICES AD7171BCPZ-500RL7Analogue to Digital Converter, 16 bit, 125 SPS, Single, 2.7 V, 5.25 V, LFCSP
AD7171BCPZ-500RL7 is a 16-Bit, Low Power, Sigma-Delta ADC. This article mainly covers datasheet, features, pinout, and more details about AD7171BCPZ-500RL7. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and ICs in stock. Welcome RFQ!

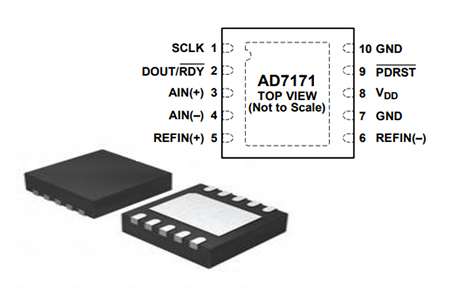

AD7171BCPZ-500RL7
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $4.25975 | $4.26 |
| 10+ | $4.01863 | $40.19 |
| 100+ | $3.79116 | $379.12 |
| 500+ | $3.57657 | $1788.29 |
| 1000+ | $3.37412 | $3374.12 |

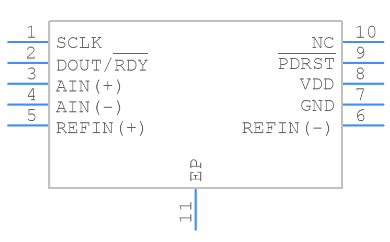

Symbol
Symbol

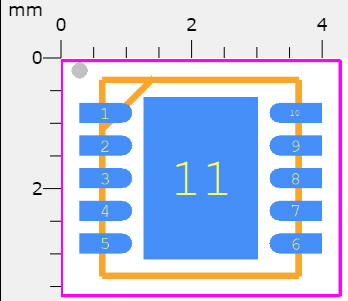

Footprint
Footprint

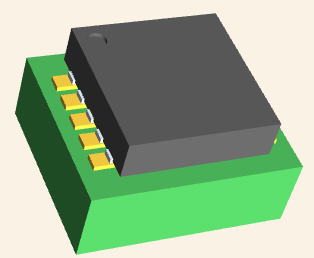

3D Model
3D Model
The AD7171BCPZ-500RL7 is a very low-power, 16-bit, analog-to-digital converter (ADC). It contains a precision, 16-bit, Σ-Δ ADC, and an on-chip oscillator. Consuming only 135 µA, the AD7171 is particularly suitable for portable or battery-operated products here very low power is a requirement. The AD7171 also has an owner-down mode in which the device consumes 5 μA, thus increasing the battery life of the product.

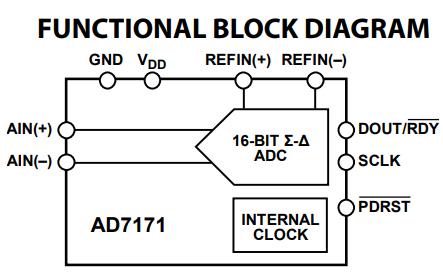

AD7171BCPZ-500RL7 Functional Block Diagram
Analog Devices Inc. AD7171BCPZ-500RL7 technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. AD7171BCPZ-500RL7.
Analog Devices Inc. AD7171BCPZ-500RL7 technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. AD7171BCPZ-500RL7.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | PRODUCTION (Last Updated: 1 month ago) | |
| Factory Lead Time | 8 Weeks | |
| Contact Plating | Tin | |
| Mounting Type | Surface Mount | |
| Package / Case | 10-VFDFN Exposed Pad, CSP | |
| Surface Mount | YES | |
| Number of Pins | 10Pins | |
| Operating Temperature | -40°C~105°C | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e3 | |
| Pbfree Code | no | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 10Terminations | |
| ECCN Code | EAR99 | |
| Max Power Dissipation | 675μW | |
| Terminal Position | DUAL | |
| Terminal Form | NO LEAD | |
| Peak Reflow Temperature (Cel) | 260 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Functions | 1Function | |
| Supply Voltage | 3V | |
| Terminal Pitch | 0.5mm | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | AD7171 | |
| Pin Count | 10 | |
| Qualification Status | Not Qualified | |
| Polarity | Bipolar | |
| Configuration | ADC | |
| Number of Channels | 1Channel | |
| Max Supply Voltage | 5.25V | |
| Min Supply Voltage | 2.7V | |
| Nominal Supply Current | 135μA | |
| Power Dissipation | 675μW | |
| Number of Bits | 16Bits | |
| Input Type | Differential | |
| Min Input Voltage | 500mV | |
| Architecture | Sigma-Delta | |
| Max Input Voltage | 5V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Supply Type | Single | |
| Reference Type | External | |
| Data Interface | SPI | |
| Resolution | 2 B | |
| Sampling Rate | 125 sps | |
| Voltage - Supply, Analog | 2.7V~5.25V | |
| Voltage - Supply, Digital | 2.7V~5.25V | |
| Number of Analog In Channels | 1Analog In Channel | |
| Output Bit Code | OFFSET BINARY | |
| Integral Nonlinearity (INL) | 0.4 LSB | |
| Output Format | SERIAL | |
| Height | 750μm | |
| Length | 3.1mm | |
| Width | 3.1mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Contains Lead |
Output data rate: 125 Hz
Pin-programmable power-down and reset
Status function
Internal clock oscillator
Current: 135 µA
Power supply: 2.7 V to 5.25 V
−40°C to +105°C temperature range
Package: 10-lead 3 mm × 3 mm LFCSP
Weigh scales
Pressure measurement
Industrial process control
Portable instrumentation
The AD7171BCPZ-500RL7 provides a low-cost, high-resolution analog-to-digital unction. Because the analog-to-digital function is provided y Σ-Δ architecture, the device is more immune to noisy environments, making it ideal for use in sensor measurement and industrial and process-control applications.

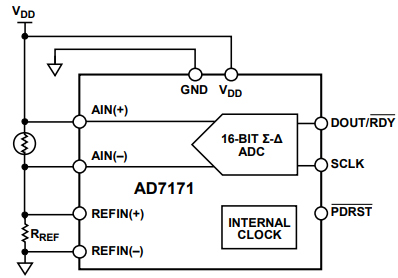

AD7171BCPZ-500RL7 Applications Diagram

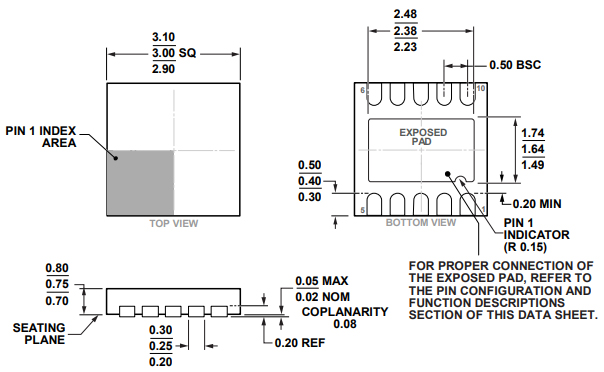

AD7171BCPZ-500RL7 Dimensions
Analog Devices is an international market leader in the design, production, and commercialization of a large range of high-performance integrated circuits (ICs) for analog, mixed-signal, and digital signals (DSP) processing of almost all electronic systems. Since we started in 1965, the focus has been on the engineering challenge in electronic equipment related to signal to process. Our signal processing solutions, utilized by over 100,000 customers worldwide, play a key role in the conversion, conditioning, and processing of real-world events such as temperature, pressure, sonority, illumination, speed, and movement to electric signals for a wide range of electronic devices.
Download datasheets and manufacturer documentation for Analog Devices Inc. AD7171BCPZ-500RL7.
Download datasheets and manufacturer documentation for AD7171BCPZ-500RL7
