AD822 FET-Input Op-Amp: Pinout, Equivalent and Datasheet

Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps 8-SOIC (0.154, 3.90mm Width) General Purpose 15V -40°C~85°C AD822 IC OPAMP GP 1.9MHZ RRO 8SOIC

1523

Nov 6, 2021

Basil Ramsden

Introduction to Operational Amplifier: Characteristics of Ideal Op-Amp



Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps 8-SOIC (0.154, 3.90mm Width) General Purpose 15V -40°C~85°C AD822 IC OPAMP GP 1.9MHZ RRO 8SOIC

The AD822 is a dual precision, low power FET input op amp that can operate from a single supply of 5 V to 30 V or from dual supplies of ±2.5 V to ±15 V. The AD822 is available in two performance grades. The A grade and B grade are rated over the industrial temperature range of −40°C to 85°C. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.

AD822AR

2500In Stock
Min.: 1 Mult.: 1
Price not displayed? Not available to buy online? Please send an RFQ, and we will respond immediately.
Quick Links

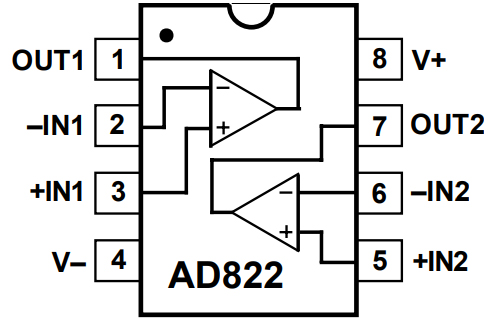

AD822 Pinout

AD822 CAD Model

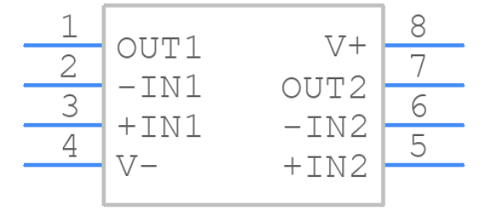

PCB Symbol

PCB Footprint

3D Model

AD822 Overview

The AD822 is a dual precision, low power FET input op amp that can operate from a single supply of 5 V to 30 V or from dual supplies of ±2.5 V to ±15 V. It has true single-supply capability with an input voltage range extending below the negative rail, allowing the AD822 to accommodate input signals below ground while in the single-supply mode. Output voltage swing extends to within 10 mV of each rail, providing the maximum output dynamic range.

The AD822 drives up to 350 pF of direct capacitive load as a follower and provides a minimum output current of 15 mA. This allows the amplifier to handle a wide range of load conditions. Its combination of ac and dc performance, plus the outstanding load drive capability, results in an exceptionally versatile amplifier for the single-supply user. The AD822 is available in two performance grades. The A grade and B grade are rated over the industrial temperature range of −40°C to +85°C. The AD822 is offered in three varieties of 8-lead packages: PDIP, MSOP, and SOIC_N.

This article provides you with a basic overview of the AD822 FET-Input Op-Amp, including its pin descriptions, features and specifications, etc., to help you quickly understand what AD822 is.

AD822 Features

● True single-supply operation

   ◆ Output swings rail-to-rail

   ◆ Input voltage range extends below ground

   ◆ Single-supply capability from 5 V to 30 V

   ◆ Dual-supply capability from ±2.5 V to ±15 V

● High load drive

   ◆ Capacitive load drive of 350 pF, G = +1

   ◆ Minimum output current of 15 mA

● Excellent ac performance for low power

   ◆ 800 µA maximum quiescent current per amplifier

   ◆ Unity-gain bandwidth: 1.8 MHz

   ◆ Slew rate of 3 V/μs

● Good dc performance

   ◆ 800 µV maximum input offset voltage

   ◆ 2 µV/°C typical offset voltage drift

   ◆ 25 pA maximum input bias current

● Low noise

   ◆ 13 nV/√Hz at 10 kHz

   ◆ No phase inversion

Specifications

Analog Devices Inc. AD822AR technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. AD822AR.

AD822AR Tech Specifications

Analog Devices Inc. AD822AR technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. AD822AR.

Product Attribute Attribute Value
Contact PlatingLead, Tin
Mounting TypeSurface Mount
Package / Case8-SOIC (0.154, 3.90mm Width)
Surface MountYES
Number of Pins8Pins
Operating Temperature-40°C~85°C
PackagingTube
JESD-609 Codee0
Pbfree Codeno
Part StatusObsolete
Moisture Sensitivity Level (MSL)1 (Unlimited)
Number of Terminations8Terminations
ECCN CodeEAR99
Terminal PositionDUAL
Terminal FormGULL WING
Peak Reflow Temperature (Cel)235
Number of Functions2Functions
Supply Voltage15V
Product Attribute Attribute Value
Time@Peak Reflow Temperature-Max (s)20
Base Part NumberAD822
Pin Count8
Output TypeRail-to-Rail
Number of Channels2Channels
Operating Supply Current1.8mA
Quiescent Current900μA
Slew Rate3V/μs
ArchitectureVOLTAGE-FEEDBACK
Amplifier TypeGeneral Purpose
Common Mode Rejection Ratio80 dB
Current - Input Bias2pA
Voltage - Supply, Single/Dual (±)5V~30V ±2.5V~15V
Output Current per Channel20mA
Input Offset Voltage (Vos)1.5mV
Bandwidth1.8MHz
Gain Bandwidth Product1.9MHz
Neg Supply Voltage-Nom (Vsup)-15V
Product Attribute Attribute Value
Unity Gain BW-Nom1900 kHz
Voltage Gain120dB
Power Supply Rejection Ratio (PSRR)80dB
Low-OffsetNO
Frequency CompensationYES
Voltage - Input Offset400μV
Settling Time4.5 μs
Low-BiasYES
MicropowerYES
Input Capacitance2.8pF
Input Voltage Noise Density25nV/sqrt Hz
Length4.9mm
Height Seated (Max)1.75mm
REACH SVHCNo SVHC
Radiation HardeningNo
RoHS StatusNon-RoHS Compliant
Lead FreeContains Lead
0 Products View Similar

D822 Functional Block Diagram

Connection Diagram

AD822 Equivalent

               Model number                       Manufacturer                                       Description
AD822ARZ Rochester Electronics LLC DUAL OP-AMP, 3000 uV OFFSET-MAX, 1.9 MHz BAND WIDTH, PDSO8, ROHS COMPLIANT, MS-012AA, SOIC-8
AD822BRZ-REEL7 Analog Devices Inc Single-Supply, Rail-to-Rail Low Power FET-Input Dual Op Amp
AD822BR-REEL7 Rochester Electronics LLC DUAL OP-AMP, 2500 uV OFFSET-MAX, 1.9 MHz BAND WIDTH, PDSO8, MS-012AA, SOIC-8
OPA2131UAG4 Texas Instruments Dual, 4-MHz, 50-pA bias current, 750-µA power, FET operational amplifier 8-SOIC -55 to 125
AD822AR-REEL7 Rochester Electronics LLC DUAL OP-AMP, 3000 uV OFFSET-MAX, 1.9 MHz BAND WIDTH, PDSO8, MS-012AA, SOIC-8
OPA2131UA/2K5 Texas Instruments Dual, 4-MHz, 50-pA bias current, 750-µA power, FET operational amplifier 8-SOIC -55 to 125
OPA2131UJ/2K5 Burr-Brown Corp Operational Amplifier, 2 Func, 1500uV Offset-Max, PDSO8, GREEN, PLASTIC, MS-012AA, SOIC-8
OPA2131UJ Texas Instruments Dual, 4-MHz, 50-pA bias current, 750-µA power, FET operational amplifier 8-SOIC
OPA2131UJ/2K5G4 Texas Instruments General Purpose FET-Input Operational Amplifiers 8-SOIC

AD822 Applications

● Battery-powered precision instrumentation

● Photodiode preamps

● Active filters

● 12-bit to 14-bit data acquisition systems

● Medical instrumentation

● Low power references and regulators

AD822 Package

8-Lead Standard Small Outline Package [SOIC_N]

AD822 Manufacturer

Analog Devices (NASDAQ: ADI) is a world leader in the design, manufacture, and marketing of a broad portfolio of high performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs) used in virtually all types of electronic equipment. Since our inception in 1965, we have focused on solving the engineering challenges associated with signal processing in electronic equipment. Used by over 100,000 customers worldwide, our signal processing products play a fundamental role in converting, conditioning, and processing real-world phenomena such as temperature, pressure, sound, light, speed, and motion into electrical signals to be used in a wide array of electronic devices.

Datasheet PDF

Download datasheets and manufacturer documentation for Analog Devices Inc. AD822AR.

AD822AR Documents

Download datasheets and manufacturer documentation for AD822AR

Frequently Asked Questions

Is the op amp AD822 the AD8221? What is the difference between these two?
AD822 and AD8221 are not the same, AD822 is an operational amplifier, and AD8221 is an instrumentation amplifier. Among them AD822 is suitable for low power consumption occasions, because its craft is FET craft. The AD8221 is suitable for high-precision amplification, industrial field amplification interfaces and other occasions, because it has excellent common-mode rejection capabilities.
Which of the op amp AD822 or AD823 has good sound quality, and what kind of capacitor does "NP" refer to?
The index of 823 is better than that of 822, but for audio signals, both are sufficient, so you don't need to consider this issue. The capacitor marked NP means that this capacitor is a non-polar capacitor, and the polarity does not need to be considered during installation. It is generally used as a coupling capacitor in the audio signal channel.
FAQ
Is the op amp AD822 the AD8221? What is the difference between these two?
AD822 and AD8221 are not the same, AD822 is an operational amplifier, and AD8221 is an instrumentation amplifier. Among them AD822 is suitable for low power consumption occasions, because its craft is FET craft. The AD8221 is suitable for high-precision amplification, industrial field amplification interfaces and other occasions, because it has excellent common-mode rejection capabilities.
Which of the op amp AD822 or AD823 has good sound quality, and what kind of capacitor does "NP" refer to?
The index of 823 is better than that of 822, but for audio signals, both are sufficient, so you don't need to consider this issue. The capacitor marked NP means that this capacitor is a non-polar capacitor, and the polarity does not need to be considered during installation. It is generally used as a coupling capacitor in the audio signal channel.
