AD8233ACBZ-R7 Heart Rate Monitor: Low Noise, 20WLCSP Monitor and AD8233 Datasheet

The AD8233ACBZ-R7 is available in a 2 mm × 1.7 mm, 20-ball WLCSP package and a 150 μm thin die for height-constrained applications. Performance is specified from 0°C to 70°C and is operational from −40°C to +85°C.

For electrocardiogram  (ECG) and other biopotential measurement applications, the AD8233  ACBZ-R7 is an integrated signal conditioning block. It's made to extract, amplify, and filter tiny biopotential signals in noisy environments like those caused by mobility or remote electrode placement. The output signal can be easily acquired using an ultralow-power analog-to-digital converter (ADC) or an embedded microcontroller with this architecture.

For removing motion artifacts and the electrode half-cell potential, the AD8233ACBZ-R7 uses a two-pole high-pass filter. This filter is strongly integrated with the instrumentation amplifier architecture allowing both big gain and high-pass filtering to be done in a single stage, saving space and money.

AD8233ACBZ-R7 Symbol

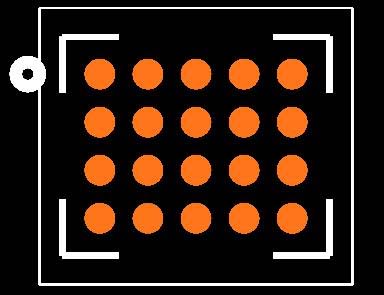

AD8233ACBZ-R7 Footprint

Analog Devices Inc. AD8233ACBZ-R7 technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. AD8233ACBZ-R7.

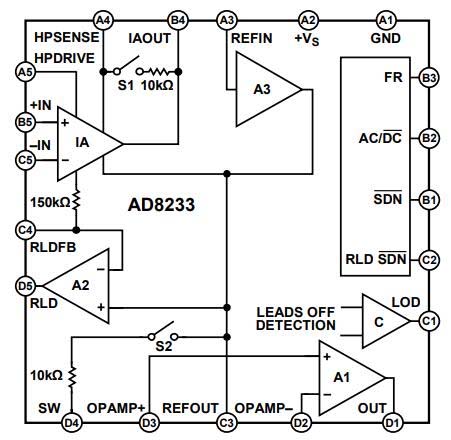

AD8233ACBZ-R7 Block Diagram

• Fully integrated, single-lead ECG  front end

• Low quiescent supply current: 50 μA (typical)

• Leads on/off detection while in shutdown (<1 μA)

• Common-mode rejection ratio: 80 dB (dc to 60 Hz)

• 2-electrode and 3-electrode configurations

• High signal gain (G = 100) with dc blocking capabilities

• 2-pole adjustable high-pass filter

• Accepts up to ±300 mV of half cell potential

• Fast restore feature improves filter settling

• Uncommitted op-amp

• 3-pole adjustable low-pass filter with adjustable gain

• Integrated RLD  amplifier with shutdown

• Single-supply operation: 1.7 V to 3.5 V

• Integrated reference buffer generates virtual ground

• Rail-to-rail output

• Internal RFI filter

• 8 kV HBM ESD rating

• Shutdown pin

• 2 mm × 1.7 mm WLCSP package

• Portable ECG

• Gaming peripherals

• Wearable and remote health monitors

• Fitness and activity heart rate monitors

• Biopotential signal acquisition, such as EMG or EEG

The AD8233ACBZ-R7 is an integrated front end for cardiac biopotential signal conditioning for heart rate monitoring. A specialized instrumentation amplifier (IA), an operational amplifier (A1), a right leg drive amplifier  (A2), and a mid-supply reference buffer make up this system (A3). The AD8233ACBZ-R7  also has circuitry to detect if the leads are on or off, as well as an automatic fast restore circuit that recovers the signal quickly when the leads are rejoined.

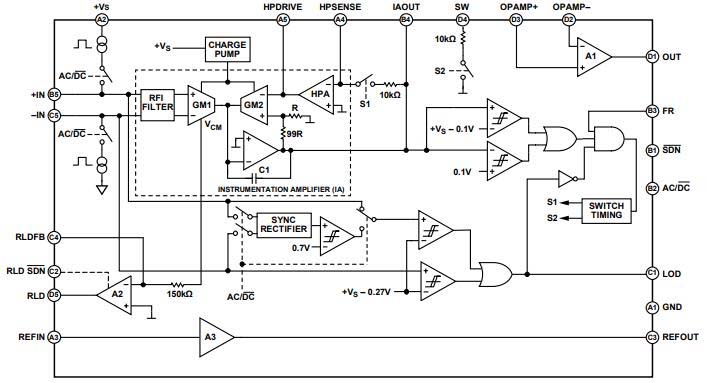

AD8233ACBZ-R7 Simplified Schematic

Instrumentation Amplifier

The instrumentation amplifier in the figure shows an instrumentation amplifier made up of two well-matched transconductance amplifiers (GM1 and GM2), a dc blocking amplifier (HPA), and an integrator made up of C1 and an op-amp. The current generated by the transconductance amplifier GM1 is proportional to the voltage present at its inputs.

Operational Amplifier

The general-purpose operational amplifier (A1) is a rail-to-rail device that can be used for low-pass filtering and to add additional gain. The following sections provide details and examples of circuits that use this amplifier.

RLD Amplifier

The RLD  amplifier inverts the common-mode signal that is present at the instrumentation amplifier inputs. When the right leg drive output current is injected into the subject, it counteracts common-mode voltage variations, thus improving the common-mode rejection of the system.

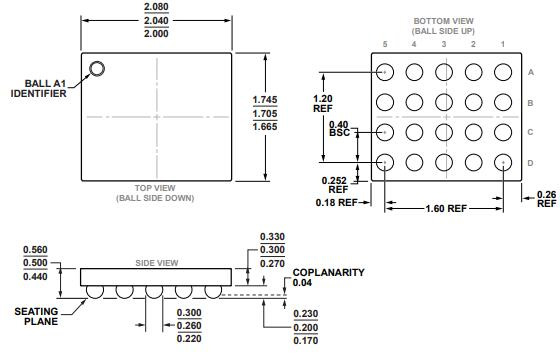

AD8233ACBZ-R7 Outline Dimensions
