AD827SQ Operational Amplifier: Feature, Specification, Datasheet

 Like the AD847, it provides high speed, low power performance at low cost. The AD827SQ achieves a 300 V/µs slew rate and 50 MHz unity-gain bandwidth while consuming only 100 mW when operating from ±5 volt power supplies. Performance is specified for operation using ±5 V to ±15 V power supplies.

The AD827SQ offers an open-loop gain of 3,500 V/V into 500 Ω loads. It also features a low input offset voltage of 2 mV maximum. The common-mode rejection ratio is a minimum of 80 dB. The power supply rejection ratio is maintained at better than 20 dB with input frequencies as high as 1 MHz, thus minimizing noise feedthrough from switching power supplies.

The AD827SQ is also ideal for use in demanding video applications, driving coaxial cables with less than 0.04% differential gain and 0.19° differential phase errors for 643 mV p-p into a 75 Ω reverse terminated cable.

The AD827SQ is also useful in multichannel, high-speed data conversion systems where its fast (120 ns to 0.1%) settling time is of importance. In such applications, the AD827 serves as an input buffer for 8-bit to 10-bit A/D converters and as an output amplifier for high-speed D/A converters.

High Speed

• 50 MHz Unity Gain Stable Operation
• 300 V/ms Slew Rate
• 120 ns Settling Time
• Drives Unlimited Capacitive Loads

Excellent Video Performance

• 0.04% Differential Gain @ 4.4 MHz
• 0.198 Differential Phase @ 4.4 MHz

Good DC Performance

• 2 mV max Input Offset Voltage
• 5 mV/8C Input Offset Voltage Drift
• Available in Tape and Reel in Accordance with EIA-481A Standard
• Low Power
• Only 10 mA Total Supply Current for Both Amplifiers ±5 V to±15 V Supplies

Performance is fully specified for operation using ±5 V to ±15 V supplies.

A 0.04% differential gain and 0.19° differential phase error at the 4.4 MHz color subcarrier frequency, together with its low cost, make it ideal for many video applications.

The AD827 can drive unlimited capacitive loads, while its 30 mA output current allows 50 Ω and 75 Ω reverse-terminated loads to be driven.

The AD827’s 50 MHz unity-gain bandwidth makes it an ideal candidate for multistage active filters.

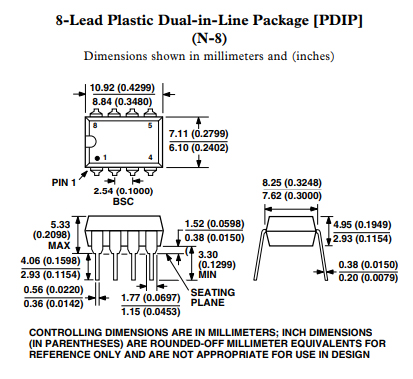

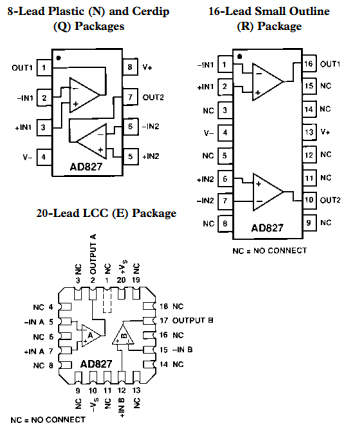

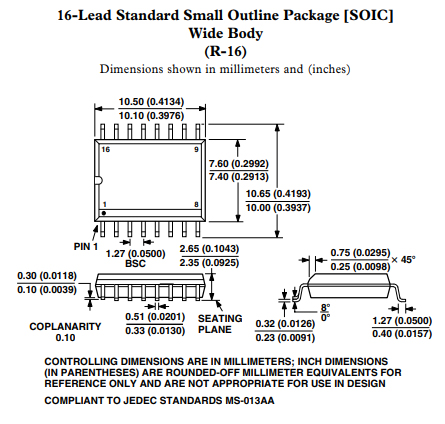

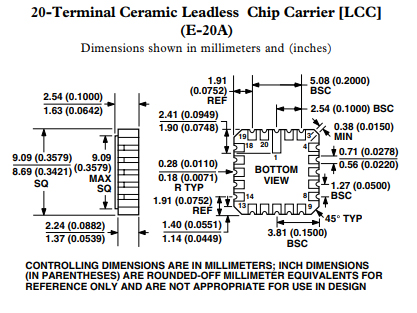

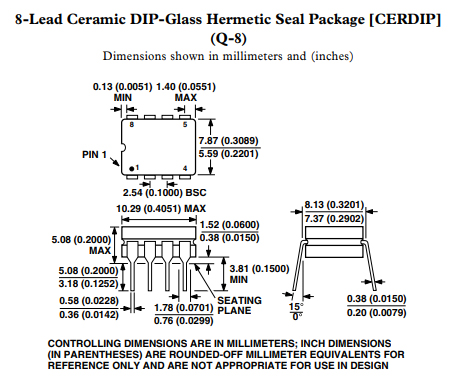

The AD827 is available in 8-lead plastic mini-DIP and cerdip, 20-lead LCC, and 16-lead SOIC packages. Chips and MIL-STD-883B processing are also available.
