AD9361 RF Agile Transceiver
RF Transceiver ICs ANALOG DEVICES AD9361BBCZRF TRANSCEIVER, 70MHZ-6GHZ, CSP_BGA-144
The AD9361 is a high-performance, highly integrated radio frequency (RF) Agile Transceiver™ designed for use in 3G and 4G base station applications. This article is going to explain details about the AD9361 rf transceiver.
AD9361BBCZ
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $400.34687 | $400.35 |
| 10+ | $377.68572 | $3776.86 |
| 100+ | $356.30729 | $35630.73 |
| 500+ | $336.13895 | $168069.48 |
| 1000+ | $317.11222 | $317112.22 |

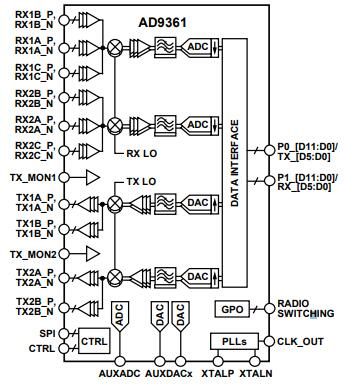

The AD9361 is a high-performance, high-integration radio frequency (RF) Agile Transceiver for 3G and 4G base station applications. It is suited for a wide range of transceiver applications because of its programmability and wideband capability. The device combines an RF front end with a flexible mixed-signal baseband section and built-in frequency synthesizers, making design-in easier by offering a customizable digital interface to a CPU.
The AD9361 operates in the 70MHz to 6.0GHz range, covering most licensed and unlicensed bands. Channel bandwidths from less than 200 kHz to 56MHz are supported. The AD9361 is packaged in a 10mm × 10mm, 144-ball chip-scale package ball grid array (CSP_BGA).

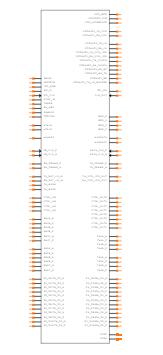

AD9361 Symbol

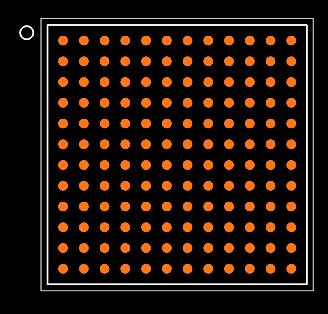

AD9361 Footprint

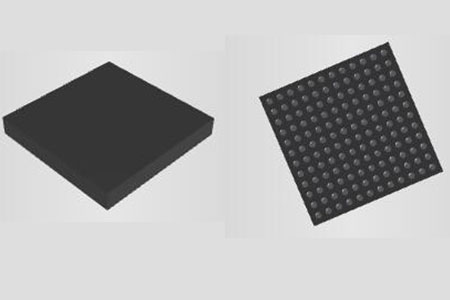

AD9361 3D Model
Analog Devices Inc. AD9361BBCZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. AD9361BBCZ.
Analog Devices Inc. AD9361BBCZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. AD9361BBCZ.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | PRODUCTION (Last Updated: 2 weeks ago) | |
| Factory Lead Time | 8 Weeks | |
| Contact Plating | Copper, Silver, Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 144-LFBGA, CSPBGA | |
| Number of Pins | 144Pins | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tray | |
| JESD-609 Code | e1 | |
| Pbfree Code | no | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 144Terminations | |
| ECCN Code | 5A991.B |
| Product Attribute | Attribute Value | |
|---|---|---|
| Type | TxRx Only | |
| Terminal Finish | Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5) | |
| Terminal Position | BOTTOM | |
| Terminal Form | BALL | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 1.3V | |
| Terminal Pitch | 0.8mm | |
| Depth | 10mm | |
| Frequency | 70MHz~6GHz | |
| Time@Peak Reflow Temperature-Max (s) | NOT SPECIFIED | |
| Base Part Number | AD9361 | |
| Pin Count | 144 | |
| Operating Supply Voltage | 1.3V | |
| Protocol | LTE |
| Product Attribute | Attribute Value | |
|---|---|---|
| Power - Output | 8dBm | |
| RF Family/Standard | Cellular | |
| Serial Interfaces | SPI | |
| Current - Receiving | 175mA~445mA | |
| Current - Transmitting | 240mA~820mA | |
| Number of Receivers | 2Receivers | |
| Noise Figure | 2.5 dB | |
| Height | 1mm | |
| Length | 10mm | |
| Width | 10mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Contains Lead |
RF 2 × 2 transceiver with integrated 12-bit DACs and ADCs
70MHz to 6.0GHz Band
Supports TDD and FDD operation
<200 kHz to 56MHz Tunable channel BW
6 Differential or 12 single-ended inputs dual receivers
Superior receiver sensitivity with a noise figure <2.5dB
Real-time monitor and control signals for manual gain control
Independent automatic gain control
Point to point communication systems
Femtocell/picocell/microcell base stations
General-purpose radio systems

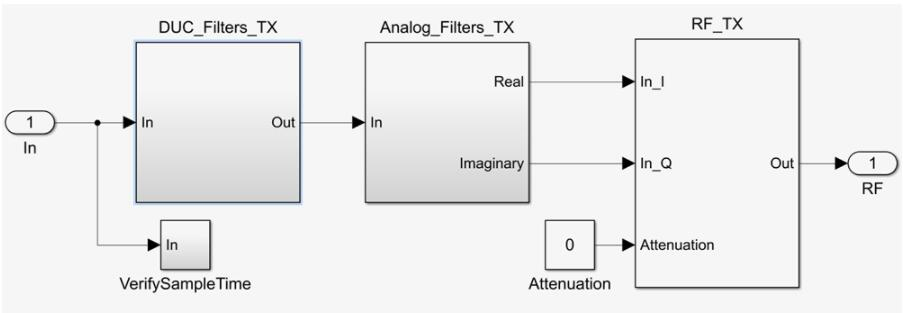

AD9361_TX Analog Devices Transmitter
There are three steps to the transmitter model:
Filters for digital up-conversion (DUC Filters TX)
(Analog Filters TX) Analog filters
(RF TX) RF front end
The transmitter model can be used to imitate the following behaviors:
Attenuation that can be adjusted
Noise in the phase of the oscillator
Noise floor based on carrier
Attenuation and carrier-dependent nonlinearities such as output-referred third-order intercept are examples of attenuation and carrier-dependent nonlinearities (OIP3)
Gain imbalance due to attenuation
Carrier leak in a local oscillator (LO) that is attenuation dependent

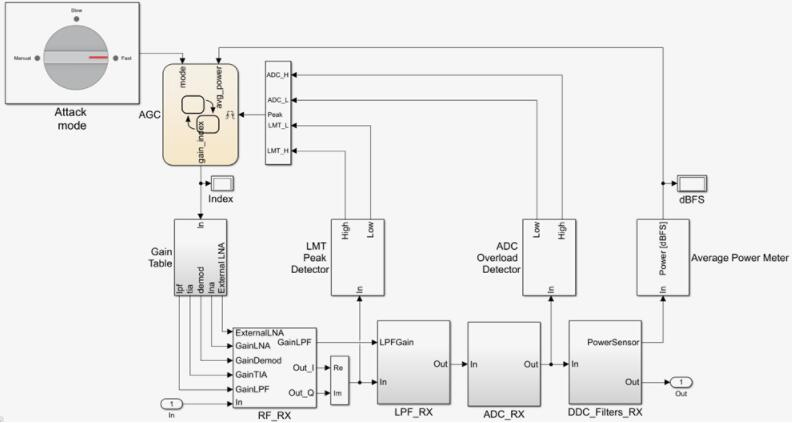

AD9361_RX Analog Devices Receiver
There are three steps to the transmitter model:
Filters for digital up-conversion (DUC Filters TX)
(Analog Filters TX) Analog filters
(RF TX) RF front end
The transmitter model can be used to imitate the following behaviors:
Attenuation that can be adjusted
Noise in the phase of the oscillator
Noise floor based on carrier
Attenuation and carrier-dependent nonlinearities such as output-referred third-order intercept are examples of attenuation and carrier-dependent nonlinearities (OIP3)
Gain imbalance due to attenuation
Carrier leak in a local oscillator (LO) that is attenuation dependent

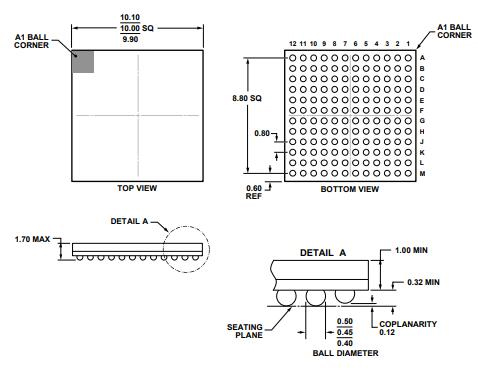

AD9361 Dimensions
Analog Devices (NASDAQ: ADI) is a world leader in the design, manufacture, and marketing of a broad portfolio of high-performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs) used in virtually all types of electronic equipment. Since our inception in 1965, we have focused on solving the engineering challenges associated with signal processing in electronic equipment. Used by over 100,000 customers worldwide, our signal processing products play a fundamental role in converting, conditioning, and processing real-world phenomena such as temperature, pressure, sound, light, speed, and motion into electrical signals to be used in a wide array of electronic devices.
Download datasheets and manufacturer documentation for Analog Devices Inc. AD9361BBCZ.
Download datasheets and manufacturer documentation for AD9361BBCZ
