AD9516-1 14-Output Clock Generator: Features, Equivalent and Datasheet

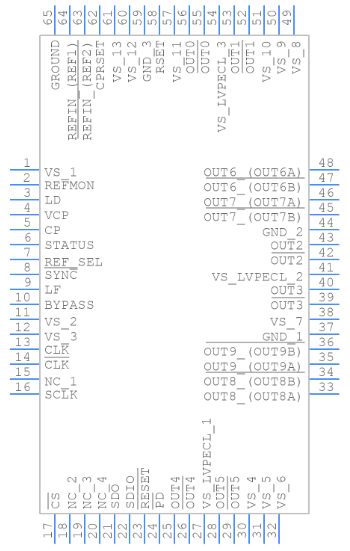

PCB Symbol

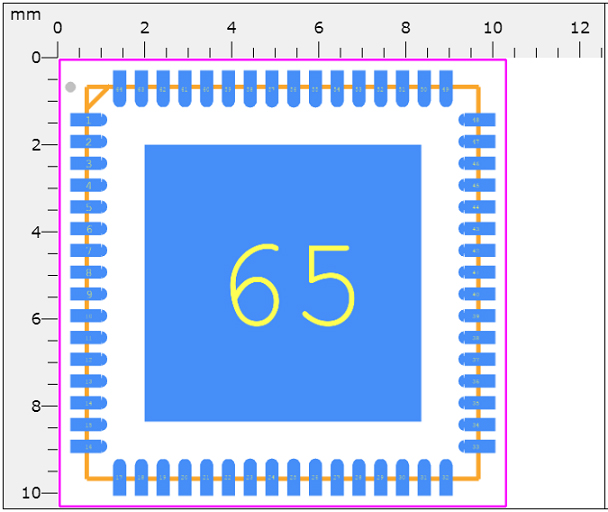

PCB Footprint

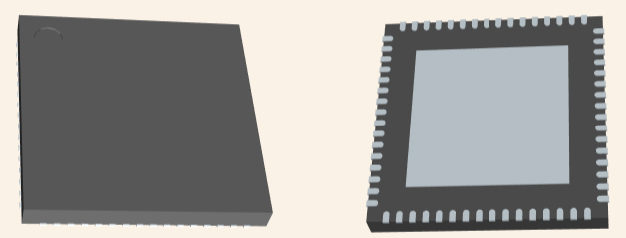

3D Model

The AD9516-1 emphasizes low jitter and phase noise to maximize data converter performance, and it can benefit other applications with demanding phase noise and jitter requirements. The AD9516-1 features six LVPECL outputs (in three pairs) and four LVDS outputs (in two pairs). Each LVDS output can be reconfigured as two CMOS outputs. The LVPECL outputs operate to 1.6 GHz, the LVDS outputs operate to 800 MHz, and the CMOS outputs operate to 250 MHz. The AD9516-1 is available in a 64-lead LFCSP and can be operated from a single 3.3 V supply. An external VCO, which requires an extended voltage range, can be accommodated by connecting the charge pump supply (VCP) to 5 V. A separate LVPECL power supply can be from 2.5 V to 3.3 V (nominal). The AD9516-1 is specified for operation over the industrial range of −40°C to +85°C.

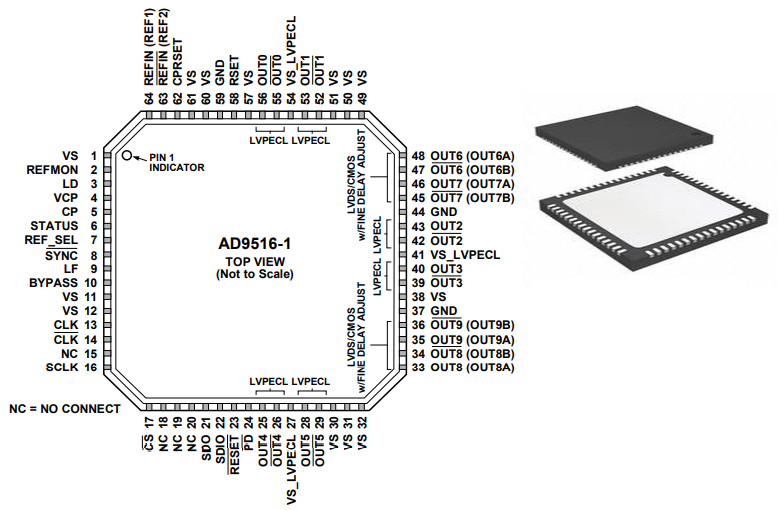

This article provides you with a basic overview of the AD9516-1 14-Output Clock Generator, including its pin descriptions, features and specifications, etc., to help you quickly understand what AD9516-1 is.

● Low phase noise, phase-locked loop (PLL)

● On-chip VCO tunes from 2.30 GHz to 2.65 GHz

● External VCO/VCXO to 2.4 GHz optional

● 1 differential or 2 single-ended reference inputs

● Reference monitoring capability

● Automatic revertive and manual reference switchover/holdover modes

● Accepts LVPECL, LVDS, or CMOS references to 250 MHz

● Programmable delays in path to PFD

● Digital or analog lock detect, selectable

● 6 pairs of 1.6 GHz LVPECL outputs

● Each output pair shares a 1-to-32 divider with coarse phase delay

● Additive output jitter: 225 fs rms

● Channel-to-channel skew paired outputs of <10 ps

● 4 pairs of 800 MHz LVDS clock outputs

● Each output pair shares two cascaded 1-to-32 dividers with coarse phase delay

● Additive output jitter: 275 fs rms

● Fine delay adjust (Δt) on each LVDS output

● Each LVDS output can be reconfigured as two 250 MHz

● CMOS outputs

● Automatic synchronization of all outputs on power-up

● Manual output synchronization available

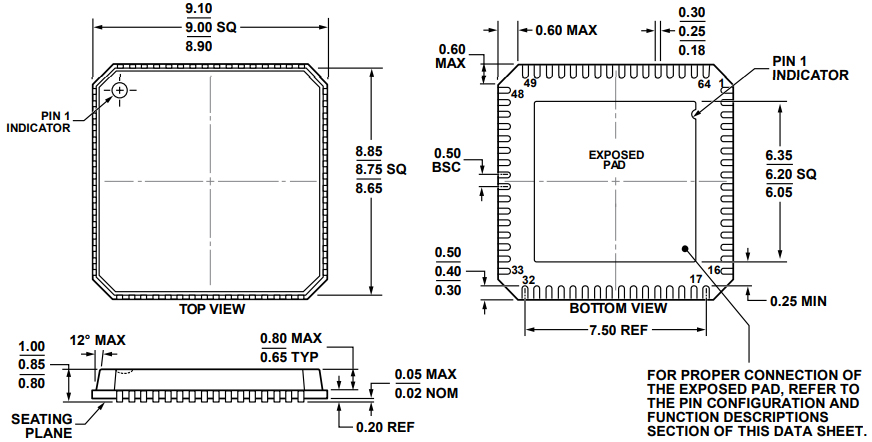

● 64-lead LFCSP

Analog Devices Inc. AD9516-1BCPZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. AD9516-1BCPZ.

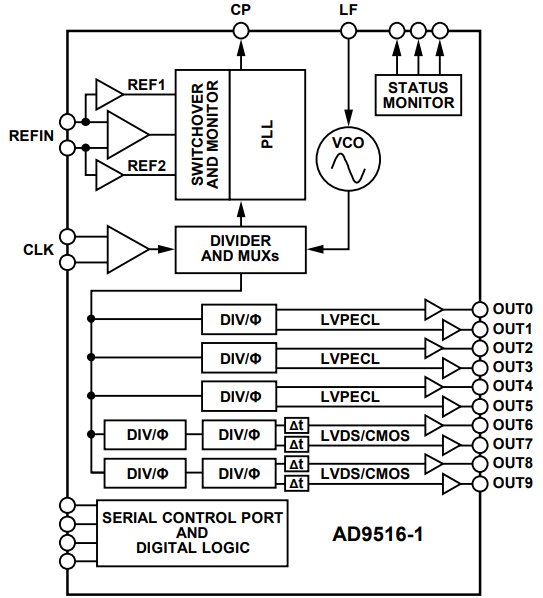

Functional Block Diagram

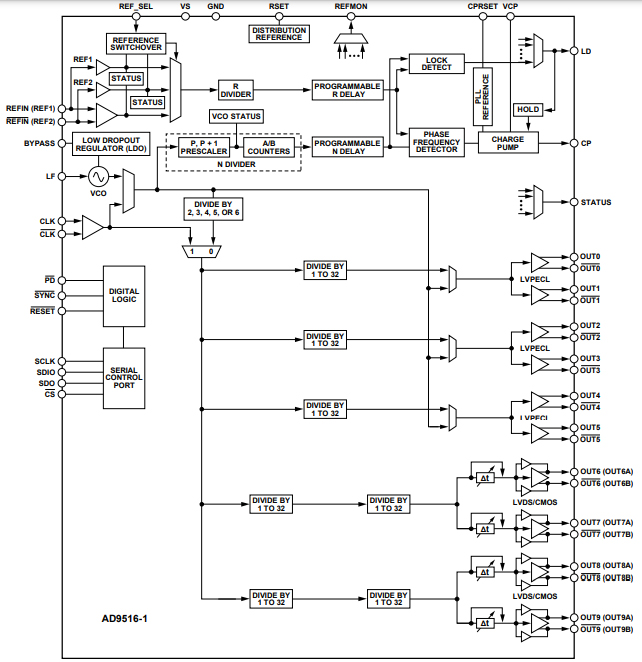

Detailed Block Diagram

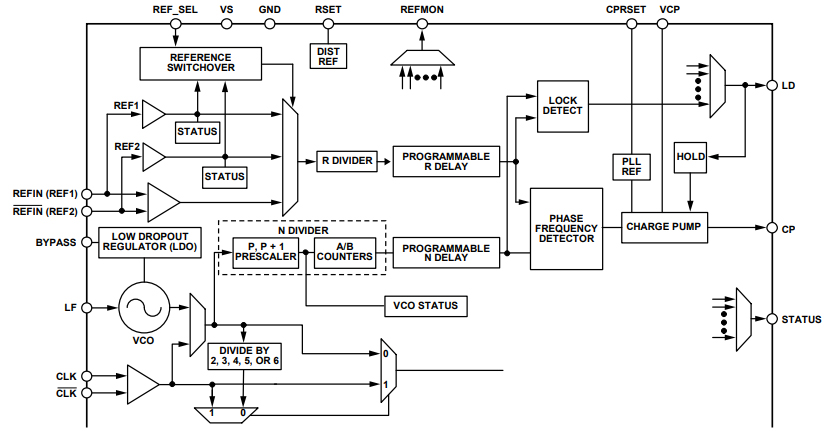

PLL Functional Blocks

● Low jitter, low phase noise clock distribution

● 10/40/100 Gb/sec networking line cards, including SONET, Synchronous Ethernet, OTU2/3/4

● Forward error correction (G.710)

● Clocking high speed ADCs, DACs, DDSs, DDCs, DUCs, MxFEs

● High performance wireless transceivers

● ATE and high performance instrumentation

Analog Devices (NASDAQ: ADI) is a world leader in the design, manufacture, and marketing of a broad portfolio of high performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs) used in virtually all types of electronic equipment. Since our inception in 1965, we have focused on solving the engineering challenges associated with signal processing in electronic equipment. Used by over 100,000 customers worldwide, our signal processing products play a fundamental role in converting, conditioning, and processing real-world phenomena such as temperature, pressure, sound, light, speed, and motion into electrical signals to be used in a wide array of electronic devices.
