AD9833 Digitally Programming Waveform Generator:Pinout,Datasheet,Description

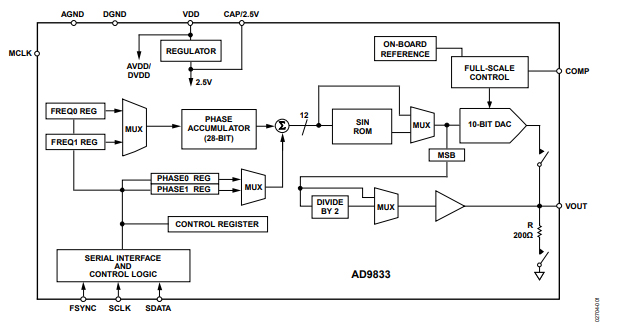

The AD9833 is a low-power, programmable waveform generator capable of producing sine, triangular, and square wave outputs. Waveform generation is required in different kinds of types of sensing, actuation, and time-domain reflectometry (TDR) applications.  No external components are needed. The frequency registers are 28 bits wide: with a 25 MHz clock rate, a resolution of 0.1 Hz can be achieved; with a 1 MHz clock rate, the AD9833 can be tuned to 0.004 Hz resolution.

The AD9833 is written via a 3-wire serial interface. This serial interface operates at clock rates up to 40 MHz and is compatible with DSP and microcontroller standards. The output frequency and phase are software programmable, allowing easy tuning. The device operates with a power supply from 2.3 V to 5.5 V.

The AD9833 has a power-down function. This function allows sections of the device that are not being used to be powered down, thus minimizing the current consumption of the part. For example, the DAC can be powered down when a clock output is being generated.

AD9833 Symbol

AD9833 Symbol

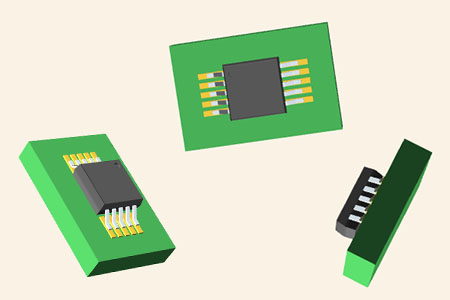

AD9833 3D Model

Digitally programmable frequency and phase

12.65 mW power consumption at 3 V

0 MHz to 12.5 MHz output frequency range

28-bit resolution: 0.1 Hz at 25 MHz reference clock

Sinusoidal, triangular, and square wave outputs

2.3 V to 5.5 V power supply

No external components required

3-wire SPI interface

Extended temperature range: −40°C to +105°C

Power-down option

10-lead MSOP package

AEC-Q100 qualified for automotive applications

Analog Devices Inc. AD9833BRMZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. AD9833BRMZ.

Frequency stimulus/waveform generation

Liquid and gas flow measurement

Sensory applications: proximity, motion, and defect detection

Line loss/attenuation

Test and medical equipment

Sweep/clock generators

Time-domain reflectometry (TDR) applications

AD9833 Package/Dimension
