ANALOG DEVICES - ADA4817-1ARDZ - IC, OP AMP, FET, 1GHZ, 8SOIC
The ADA4817 amplifier is a kind of unity-gain stable, ultrahigh-speed, voltage feedback amplifier with FET inputs. This article enforces datasheet, pinout, applications, and other details about ADA4817.
ADA4817-1ARDZ
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $14.06912 | $14.07 |
| 10+ | $13.27276 | $132.73 |
| 100+ | $12.52147 | $1252.15 |
| 500+ | $11.81271 | $5906.36 |
| 1000+ | $11.14406 | $11144.06 |
The ADA4817 amplifier is a kind of unity-gain stable, ultrahigh-speed, voltage feedback amplifier with FET inputs. The ADA4817 amplifier was developed with the Analog Devices, Inc., proprietary extra fast complementary bipolar (XFCB) process, which allows the amplifiers to achieve ultralow noise (4 nV/√Hz; 2.5 fA/√Hz) as well as very high input impedances.

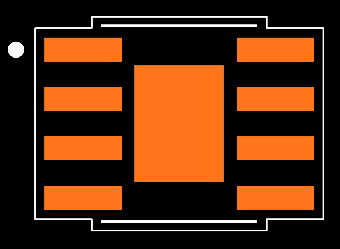

Footprint

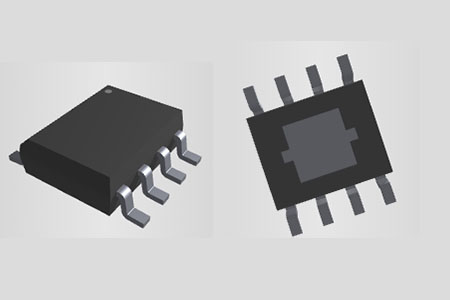

3D Model
Analog Devices Inc. ADA4817-1ARDZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADA4817-1ARDZ.
Analog Devices Inc. ADA4817-1ARDZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADA4817-1ARDZ.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | PRODUCTION (Last Updated: 3 weeks ago) | |
| Factory Lead Time | 8 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) Exposed Pad | |
| Surface Mount | YES | |
| Number of Pins | 8Pins | |
| Operating Temperature | -40°C~105°C | |
| Packaging | Tube | |
| Series | FastFET™ | |
| JESD-609 Code | e3 | |
| Pbfree Code | no | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Matte Tin (Sn) | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function |
| Product Attribute | Attribute Value | |
|---|---|---|
| Supply Voltage | 5V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | ADA4817 | |
| Pin Count | 8 | |
| Number of Channels | 1Channel | |
| Operating Supply Current | 21mA | |
| Nominal Supply Current | 21mA | |
| Output Current | 70mA | |
| Quiescent Current | 21mA | |
| Slew Rate | 870V/μs | |
| Amplifier Type | Voltage Feedback | |
| Common Mode Rejection Ratio | -90 dB | |
| Current - Input Bias | 2pA | |
| Voltage - Supply, Single/Dual (±) | 5V~10V ±2.5V~5V | |
| Output Current per Channel | 40mA | |
| Input Offset Voltage (Vos) | 2mV | |
| Bandwidth | 1.05 GHz | |
| Gain Bandwidth Product | 410MHz | |
| Neg Supply Voltage-Nom (Vsup) | -5V | |
| Unity Gain BW-Nom | 410000 kHz |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage Gain | 63dB | |
| Average Bias Current-Max (IIB) | 0.00002μA | |
| Power Supply Rejection Ratio (PSRR) | -72dB | |
| Low-Offset | NO | |
| Frequency Compensation | YES | |
| Voltage - Input Offset | 400μV | |
| Settling Time | 9 ns | |
| Low-Bias | YES | |
| Micropower | NO | |
| Bias Current-Max (IIB) @25C | 0.00002μA | |
| Programmable Power | NO | |
| Dual Supply Voltage | 3V | |
| Input Capacitance | 1.5pF | |
| Height | 900μm | |
| Length | 3.25mm | |
| Width | 3.25mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Contains Lead |
High speed
−3 dB bandwidth (G = 1, RL = 100 Ω): 1050 MHz
Slew rate: 870 V/µs
0.1% settling time: 9 ns
Input bias current: 2 pAtypical
Input capacitance
Common-mode capacitance: 1.3 pF typical
Differential mode capacitance: 0.1 pF typical
Low input noise
Voltage noise: 4 nV/√Hz at 100 kHz
Current noise: 2.5 fA/√Hz at 100 kHz
Low distortion: −90 dBc at 10 MHz (G = 1, RL = 1 kΩ)
Linear output current: 40 mA
Supply quiescent current per amplifier: 19 typical
Powered down supply quiescent current per amplifier: 1.5 typical
Photodiode amplifiers
Data acquisition front ends
Instrumentation
Filters
ADC drivers
Output buffers
The ADA4817 features a low distortion pinout from Analog Devices. The new pinout provides two advantages over the traditional pinout. The first advantage is improved second harmonic distortion performance, which is accomplished by the physical separation of the noninverting input pin and the negative power supply pin. The second advantage is the simplification of the layout due to the dedicated feedback pin and easy routing of the gain set resistor back to the inverting input pin. This pinout allows a compact layout, which helps to minimize parasitics and increase stability.
Analog Devices (NASDAQ: ADI) is a world leader in the design, manufacture, and marketing of a broad portfolio of high-performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs) used in virtually all types of electronic equipment. Since our inception in 1965, we have focused on solving the engineering challenges associated with signal processing in electronic equipment. Used by over 100,000 customers worldwide, our signal processing products play a fundamental role in converting, conditioning, and processing real-world phenomena such as temperature, pressure, sound, light, speed, and motion into electrical signals to be used in a wide array of electronic devices.
Download datasheets and manufacturer documentation for Analog Devices Inc. ADA4817-1ARDZ.
Download datasheets and manufacturer documentation for ADA4817-1ARDZ
