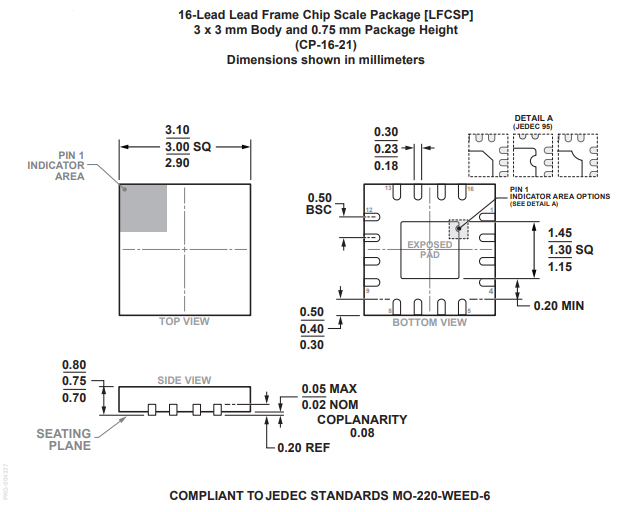

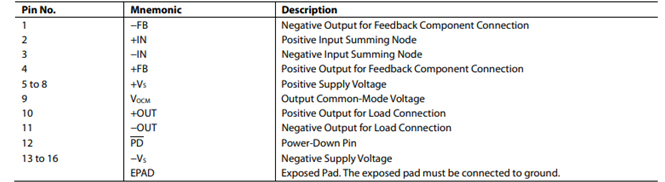

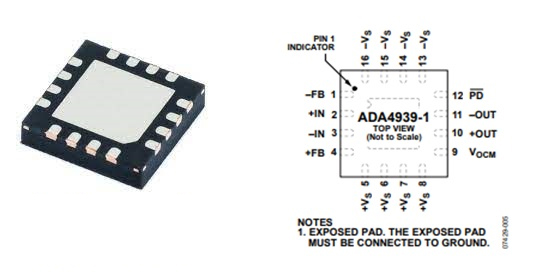

ADA4939-1YCPZ-R7 OPAMP: Pinout, Package, Datasheet

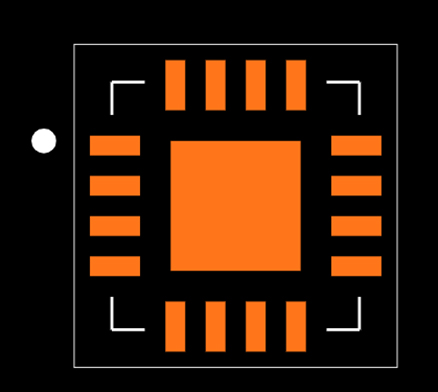

Footprint

1.Extremely low harmonic distortion

−102 dBc HD2 at 10 MHz

−83 dBc HD2 at 70 MHz

−77 dBc HD2 at 100 MHz

−101 dBc HD3 at 10 MHz −97 dBc HD3 at 70 MHz

−91 dBc HD3 at 100 MHz

2.Low input voltage noise: 2.3 nV/√Hz

3.High speed

−3 dB bandwidth of 1.4 GHz, G = 2

Slew rate: 6800 V/μs, 25% to 75% Fast overdrive recovery of＜1 ns

4.±0.5 mV typical offset voltage

5.Externally adjustable gain

6.Stable for differential gains ≥2

7.Differential-to-differential or single-ended-to-differential operation

8.Adjustable output common-mode voltage

9.Single-supply operation: 3.3 V to 5 V

The ADA4939-1differs from conventional op-amps in that they have two outputs whose voltages move in opposite directions and additional input, VOCM. Like op-amps, it relies on high open-loop gain and negative feedback to force these outputs to the desired voltages. The ADA4939-1 behaves much like standard voltage feedback op-amps and facilitates single-ended-to-differential conversions, common-mode level shifting, and amplifications of differential signals. Like op-amps, the ADA4939-1 has high input impedance and low output impedance. Because it uses voltage feedback, the ADA4939-1 manifests a nominally constant gain-bandwidth product. Two feedback loops are employed to control the differential and common-mode output voltages. The differential feedback, set with external resistors, controls only the differential output voltage. The common-mode feedback controls only the common-mode output voltage. This architecture makes it easy to set the output common-mode level to any arbitrary value within the specified limits. The output common-mode voltage is forced by the internal common-mode feedback loop to be equal to the voltage applied to the VOCM input. The internal common-mode feedback loop produces outputs that are highly balanced over a wide frequency range without requiring tightly matched external components. This results in differential outputs that are very close to the ideal of being identical in amplitude and are exactly 180° apart in phase.

ADC drivers

Single-ended-to-differential converters

IF and baseband gain blocks

Differential buffers

Line drivers
