ADALM2000 Analog Device: Advanced Active Learning Module USB

This ADALM2000  from Analog Devices packs an electronics lab full of traditional equipment into the palm of your hand, allowing enthusiasts and students to have the power of a full lab in a cost-effective, easy-to-use, hands-on environment. This USB-powered portable tool offers a function generator, digital 2-channel oscilloscope, logic analyzer, voltmeter, spectrum and network analyzer, digital bus analyzer, and two programmable power supplies. Use the active learning module to design and test analog circuits in real-time, exploring signals and systems into the tens of MHz without the limitations of a traditional lab. Plus, with the help of graphical application software, users have easy access to the most popular high-performance instrumentation functions.

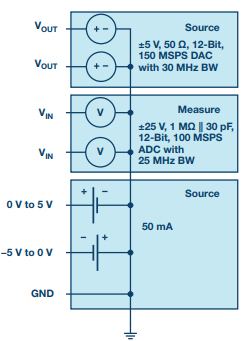

• Two-channel USB digital oscilloscope

• Two-channel arbitrary function generator

• 16-channel digital logic analyzer (3.3V  CMOS  and 1.8V or 5V tolerant, 100MS/s)

• 16-channel pattern generator (3.3V CMOS, 100MS/s)

• 16-channel virtual digital I/O

• Two input/output digital trigger signals for linking multiple instruments (3.3V CMOS)

• Single channel voltmeter (AC, DC, ±20V)

• Network analyzer – Bode, Nyquist, Nichols transfer diagrams of a circuit. Range: 1Hz to 10MHz

• Spectrum Analyzer – power spectrum and spectral measurements (noise floor,  SFDR, SNR, THD, etc.)

• Digital Bus Analyzers (SPI, I²C,  UART, Parallel)

• Two programmable power supplies (0…+5V, 0…-5V)

Analog Devices Inc. ADALM2000 technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADALM2000.

ADALM2000 Module

• Provides access to real circuits and concepts used in an actual real-time engineering environment

• Available online resources support educators and guide students to master difficult engineering concepts

• Hands-on activities stimulate interest and accelerate learning fundamental engineering concepts

• Helps to develop critical thinking skills needed for career development

• Free downloadable lectures, labs, and course materials make curriculum deployments a breeze

The ADALM2000 was designed for university students and self-learners interested in more advanced circuit and electronics classes. Teachers can leverage a catalog of lessons and labs for the ADALM2000 to create and support their own coursework.

Analog Devices (NASDAQ: ADI) is a world leader in the design, manufacture, and marketing of a broad portfolio of high-performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs) used in virtually all types of electronic equipment. Since our inception in 1965, we have focused on solving the engineering challenges associated with signal processing in electronic equipment. Used by over 100,000 customers worldwide, our signal processing products play a fundamental role in converting, conditioning, and processing real-world phenomena such as temperature, pressure, sound, light, speed, and motion into electrical signals to be used in a wide array of electronic devices.

Download datasheets and manufacturer documentation for Analog Devices Inc. ADALM2000.
