ADC120 Evaluation Tools: 12-bit A/D Converter
8-CHANNEL, 50KSPS TO 1MSPS, 12-B
This article will unlock more detailed information about ADC120, a low-power, eight-channel pure CMOS 12-bit analogue-to-digital converter.
ADC120 Converter：Datasheet, Application, Pinout
8-CHANNEL, 50KSPS TO 1MSPS, 12-B This article will unlock more detailed information about ADC120, a low-power, eight-channel pure CMOS 12-bit analogue-to-digital converter.
175
Sep 1, 2021
Egbert Reynolds
ADC120IPT
6000In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $7.31037 | $7.31 |
| 10+ | $6.89657 | $68.97 |
| 100+ | $6.5062 | $650.62 |
| 500+ | $6.13793 | $3068.97 |
| 1000+ | $5.7905 | $5790.5 |
Unit Price:$7.31037
Subtotal: $7.31
Quick Links
ADC120 Pinout
ADC120 CAD Model

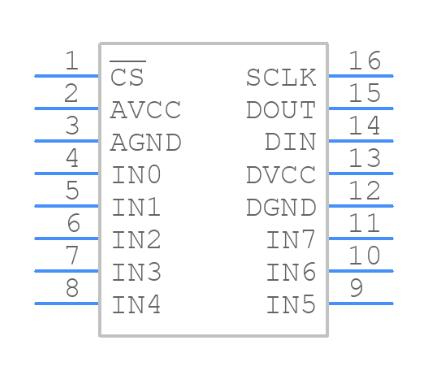

Symbol
Symbol

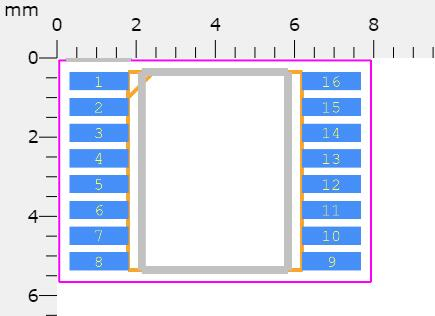

Footprint
Footprint

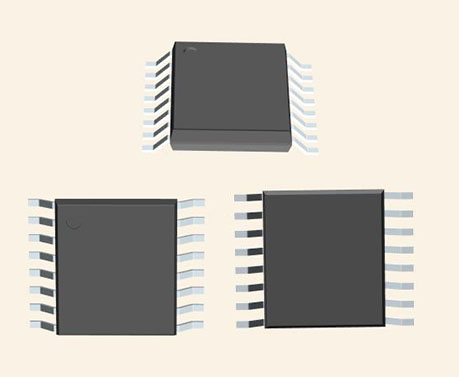

3D Model
3D Model
ADC120 Description
The ADC120 is a low-power, eight-channel pure CMOS 12-bit analogue-to-digital converter specified for conversion from 50 ksps to 1 Msps, tested at 1 Msps. The architecture is based on a successive approximation register with an internal track and hold cell. The ADC120 features 8 single-ended multiplexed inputs. The output serial data is straight binary and is SPI™ compatible.
Specifications
STMicroelectronics ADC120IPT technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics ADC120IPT.
ADC120IPT Tech Specifications
ADC120IPT Tech Specifications
STMicroelectronics ADC120IPT technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics ADC120IPT.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 18 Weeks | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-TSSOP (0.173, 4.40mm Width) | |
| Operating Temperature | -40°C~125°C | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Configuration | MUX-S/H-ADC | |
| Number of Bits | 12Bits | |
| Input Type | Single Ended | |
| Architecture | SAR | |
| Number of Inputs | 8Inputs | |
| Data Interface | SPI | |
| Voltage - Supply, Analog | 2.7V~3.6V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply, Digital | 2.7V~3.6V | |
| Sampling Rate (Per Second) | 1M | |
| Number of A/D Converters | 1A/D Converter | |
| Ratio - S/H:ADC | 1:1 | |
| RoHS Status | ROHS3 Compliant |
ADC120 Features
• 50 ksps to 1 Msps conversion rate
• 8-to-1-channel input MUX
• 3.3 V operating supply
• Pure CMOS
• Very low consumption
• SPI, serial digital output
• Power-down function
ADC120 Application
• Shunt resistor detector
• Analog multiplexing and conversion
• Telemetry

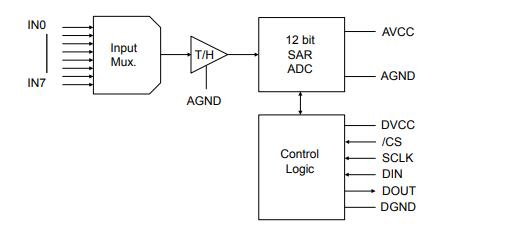

ADC120 Block Diagram

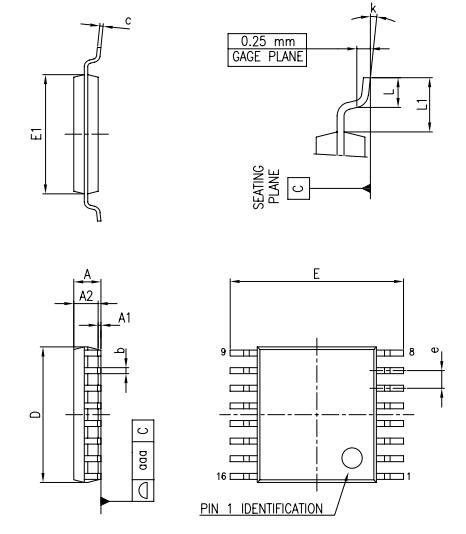

ADC120 Package
ADC120 Manufacturer
STMicroelectronics is a French-Italian multinational electronics and semiconductors manufacturer headquartered in Plan-les-Ouates near Geneva, Switzerland. ST believes the future should not be in the labs of a few, but in the hands of the many and we believe in open ecosystems and a partnership approach. ST provides easy-to-use software development tools, design kits, and support educational initiatives to make our technologies accessible to more engineers and enthusiasts today.
Datasheet PDF
Download datasheets and manufacturer documentation for STMicroelectronics ADC120IPT.
ADC120IPT Documents
ADC120IPT Documents
Download datasheets and manufacturer documentation for ADC120IPT
Frequently Asked Questions
What is ADC120?
The ADC120 is a low-power, eight-channel pure CMOS 12-bit analogue-to-digital converter specified for conversion from 50 ksps to 1 Msps, tested at 1 Msps. The architecture is based on a successive approximation register with an internal track and holding cell. The ADC120 features 8 single-ended multiplexed inputs. The output serial data is straight binary and is SPI™ compatible.
What does the ADC120 feature?
The ADC120 features 8 single-ended multiplexed inputs.
What package does the ADC120 come?
The ADC120 comes with plastic TSSOP-16.
FAQ
What is ADC120?
The ADC120 is a low-power, eight-channel pure CMOS 12-bit analogue-to-digital converter specified for conversion from 50 ksps to 1 Msps, tested at 1 Msps. The architecture is based on a successive approximation register with an internal track and holding cell. The ADC120 features 8 single-ended multiplexed inputs. The output serial data is straight binary and is SPI™ compatible.
What does the ADC120 feature?
The ADC120 features 8 single-ended multiplexed inputs.
What package does the ADC120 come?
The ADC120 comes with plastic TSSOP-16.
