35 MHz - 4.4 GHz RF Frequency Synthesizer ADF4351
ANALOG DEVICES - ADF4351BCPZ - PLL-Frequenzsynthesizer, 4.4GHz, 3V bis 3.6V Versorgungsspannung, LFCSP-32
ADF4351 is a wideband synthesizer with integrated VCO. This article enforces datasheet, pinout, applications, circuit, and other details about ADF4351.
ADF4351BCPZ
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $22.11738 | $22.12 |
| 10+ | $20.86545 | $208.65 |
| 100+ | $19.68439 | $1968.44 |
| 500+ | $18.57018 | $9285.09 |
| 1000+ | $17.51903 | $17519.03 |

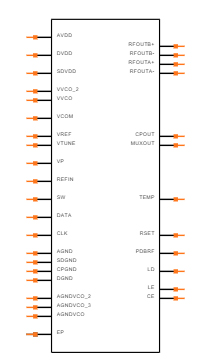

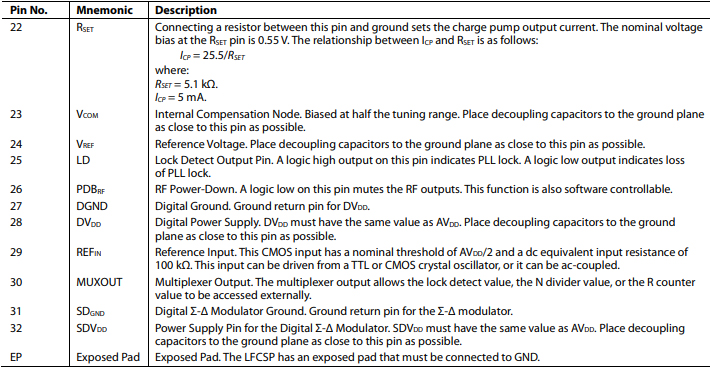

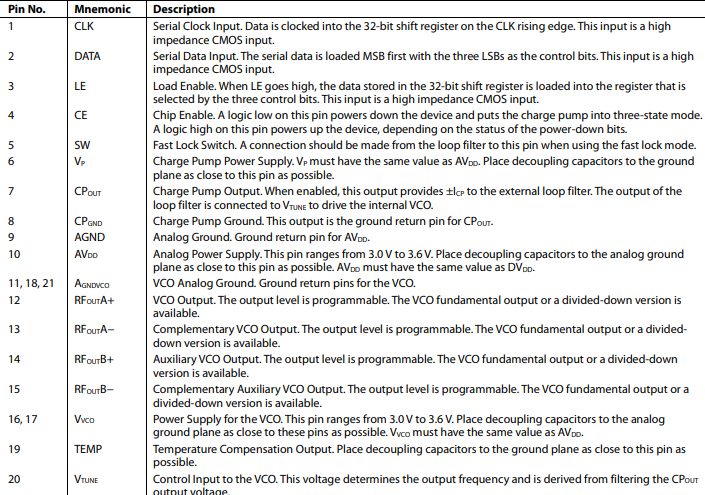

Symbol

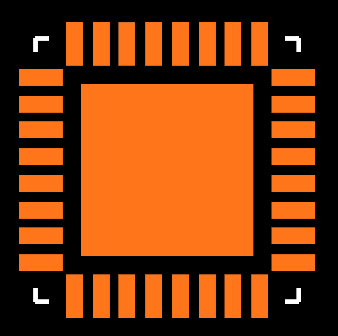

Footprint

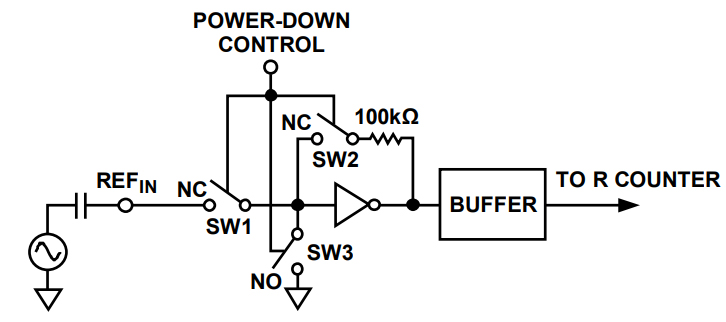

The ADF4351 allows the implementation of fractional-N or integer-N phase-locked loop (PLL) frequency synthesizers when used with an external loop filter and external reference frequency. The ADF4351 has an integrated voltage-controlled oscillator (VCO) with a fundamental output frequency ranging from 2200 MHz to 4400 MHz.

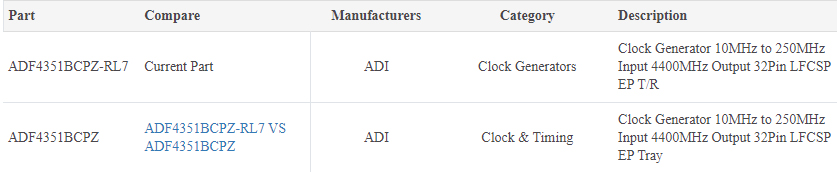

Analog Devices Inc. ADF4351BCPZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADF4351BCPZ.
Analog Devices Inc. ADF4351BCPZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADF4351BCPZ.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | PRODUCTION (Last Updated: 1 week ago) | |
| Factory Lead Time | 8 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 32-VFQFN Exposed Pad, CSP | |
| Number of Pins | 32Pins | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tray | |
| JESD-609 Code | e3 | |
| Pbfree Code | no | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 32Terminations | |
| ECCN Code | EAR99 | |
| Type | Fanout Distribution, Fractional N, Integer N, Clock/Frequency Synthesizer (RF) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 3V~3.6V | |
| Terminal Position | QUAD | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 3.3V | |
| Frequency | 4.4GHz | |
| Base Part Number | ADF4351 | |
| Output | Clock | |
| Pin Count | 32 | |
| Number of Outputs | 8Outputs | |
| Operating Supply Voltage | 3.3V | |
| Supply Voltage-Max (Vsup) | 3.6V | |
| Supply Voltage-Min (Vsup) | 3V | |
| Interface | SPI | |
| Number of Circuits | 1Circuit | |
| Operating Supply Current | 110mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Nominal Supply Current | 110mA | |
| Max Supply Current | 27mA | |
| Input | CMOS, TTL | |
| Ratio - Input:Output | 1:2 | |
| PLL | Yes | |
| Differential - Input:Output | No/Yes | |
| Divider/Multiplier | Yes/Yes | |
| Height | 950μm | |
| Length | 5mm | |
| Width | 4.75mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Contains Lead |
Output frequency range: 35 MHz to 4400 MHz
Fractional-N synthesizer and integer-N synthesizer
Low phase noise VCO
Programmable divide-by-1/-2/-4/-8/-16/-32/-64 output
Typical jitter: 0.3 ps RMS
Typical EVM at 2.1 GHz: 0.4%
Power supply: 3.0 V to 3.6 V
Logic compatibility: 1.8 V
Programmable dual-modulus Prescaler of 4/5 or 8/9
Programmable output power level
RF output mute function
3-wire serial interface
Analog and digital locks detect
Switched bandwidth fast lock mode
Cycle slip reduction
Wireless infrastructure (W-CDMA, TD-SCDMA, WiMAX,
GSM, PCS, DCS, DECT)
Test equipment
Wireless LANs, CATV equipment
Clock generation

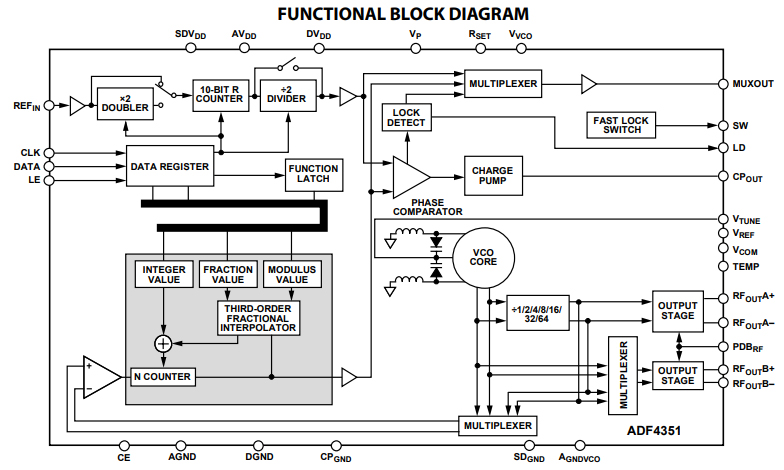

The ADF4351 allows the implementation of fractional-N or integer-N phase-locked loop (PLL) frequency synthesizers when used with an external loop filter and external reference frequency. The ADF4351has an integrated voltage-controlled oscillator (VCO) with a fundamental output frequency ranging from 2200 MHz to 4400 MHz.
Analog Devices is an international market leader in the design, production, and commercialization of a large range of high-performance integrated circuits (ICs) for analog, mixed-signal, and digital signals (DSP) processing of almost all electronic systems. Since we started in 1965, the focus has been on the engineering challenge in electronic equipment related to signal to process. Our signal processing solutions, utilized by over 100,000 customers worldwide, play a key role in the conversion, conditioning, and processing of real-world events such as temperature, pressure, sonority, illumination, speed, and movement to electric signals for a wide range of electronic devices.
Download datasheets and manufacturer documentation for Analog Devices Inc. ADF4351BCPZ.
Download datasheets and manufacturer documentation for ADF4351BCPZ
