ADG1204 Multiplexer: Pinout, Features and Datasheet

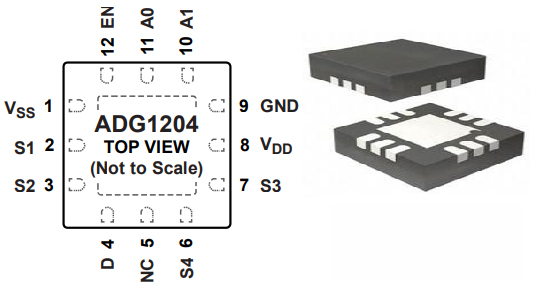

The following figure is the diagram of ADG1204 pinout.

Pinout

The followings are ADG1204 Symbol, Footprint.

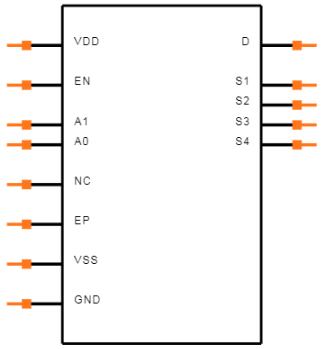

Symbol

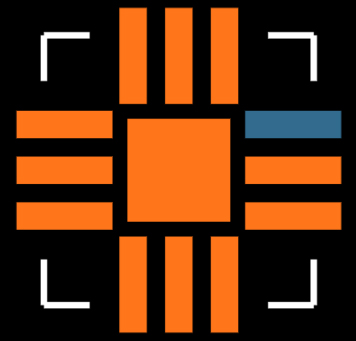

Footprint

The ADG1204 is a complementary metal-oxide semiconductor (CMOS) analog multiplexer, comprising four single channels designed on an iCMOS (industrial CMOS) process. iCMOS^® is a modular manufacturing process that combines high voltage CMOS and bipolar technologies. It enables the development of a wide range of high performance analog ICs capable of 33 V operation in a footprint that no previous generation of high voltage devices has been able to achieve. Unlike analog ICs using conventional CMOS processes, iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size. The ADG1204 switches one of four inputs to a common output, D, as determined by the 3-bit binary address lines: A0, A1, and EN. Logic 0 on the EN pin disables the device. Each switch conducts equally well in both directions when on and has an input signal range that extends to the supplies. In the off condition, signal levels up to the supplies are blocked. All switches exhibit breakbefore-make switching action.

This article provides you with a basic overview of the ADG1204 Multiplexer, including its pin descriptions, features and specifications, etc., to help you quickly understand what ADG1204 is.

● 1.5 pF off source capacitance

● <1 pC charge injection

● 33 V supply range

● 120 Ω on resistance

● Fully specified at ±15 V, +12 V

● No VL supply required

● 3 V logic-compatible inputs

● Rail-to-rail operation

● 14-lead TSSOP and 12-lead LFCSP

● Typical power consumption < 0.03 μW

Analog Devices Inc. ADG1204YCPZ-500RL7 technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADG1204YCPZ-500RL7.

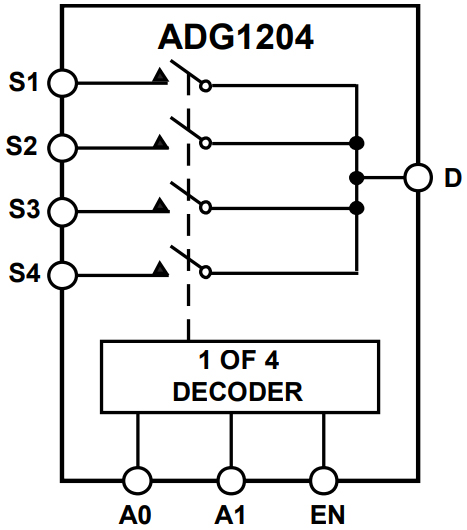

The following is the Functional Block Diagram of ADG1204.

Functional Block Diagram

● Automatic test equipment

● Data acquisition systems

● Battery-powered systems

● Sample-and-hold systems

● Audio signal routing

● Video signal routing

● Communication systems

The following diagram shows the ADG1204 package.

Top View

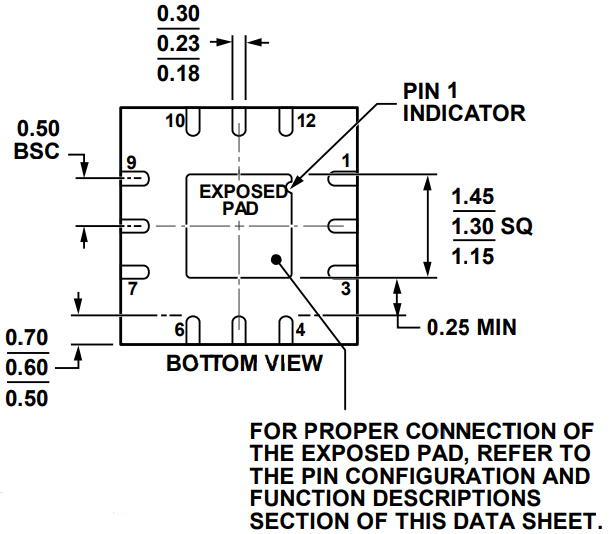

Bottom View

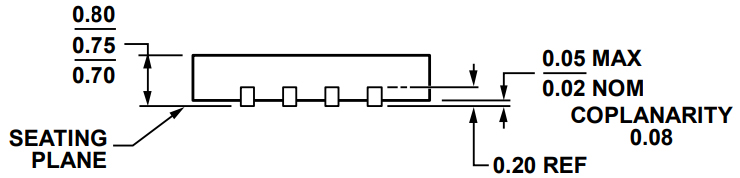

Side View
