Interface - Analog Switches, Multiplexers, Demultiplexers 16-TSSOP (0.173, 4.40mm Width) 4.7Ohm -40°C~125°C TA 5V ADG1408 4Ohm ANALOG DEVICES - ADG1408YRUZ - IC, MUX, 8-CH, SMD, TSSOP16, 1408
The ADG1408/ADG1409 are monolithic iCMOS® analogue multiplexers comprising eight single channels and four differential channels, respectively. This article will unlock more details about ADG1408. There is a huge range of Semiconductors, Capacitors, Resistors and ICs in stock.
ADG1408YRUZ
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $8.41435 | $8.41 |
| 10+ | $7.93806 | $79.38 |
| 100+ | $7.48874 | $748.87 |
| 500+ | $7.06485 | $3532.43 |
| 1000+ | $6.66495 | $6664.95 |

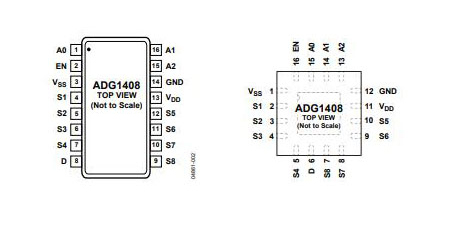

ADG1408 Pinout

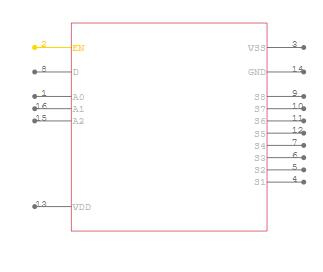

ADG1408 Symbol

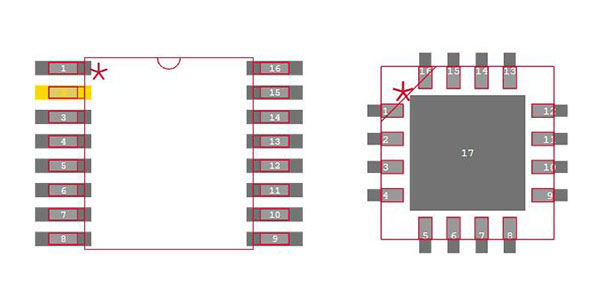

ADG1408 Footprint

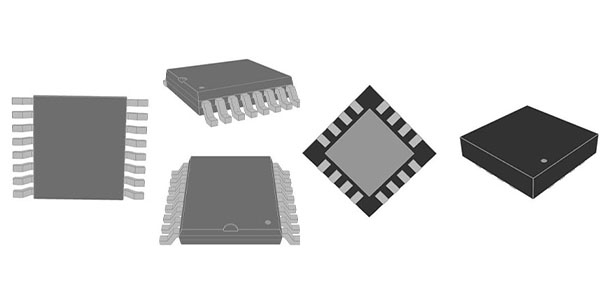

ADG1408 3D Model
The ADG1408/ADG1409 are monolithic iCMOS® analogue multiplexers comprising eight single channels and four differential channels, respectively.
The industrial CMOS (iCMOS) modular manufacturing process combines high voltage complementary metal-oxide-semiconductor (CMOS) and bipolar technologies. It enables the development of a wide range of high-performance analog ICs capable of 33 V operation in a footprint that no other generation of high voltage devices has been able to achieve. Unlike analogue ICs using conventional CMOS processes, iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduced package size.
Analog Devices is an international market leader in the design, production, and commercialization of a large range of high-performance integrated circuits (ICs) for analogue, mixed-signal, and digital signals (DSP) processing of almost all electronic systems. Since we started in 1965, the focus has been on the engineering challenge in electronic equipment related to signal to process. Our signal processing solutions, utilized by over 100,000 customers worldwide, play a key role in the conversion, conditioning, and processing of real-world events such as temperature, pressure, sonority, illumination, speed, and movement to electric signals for a wide range of electronic devices.
4.7 Ω maximum on resistance at 25°C
0.5 Ω on-resistance flatness
Up to 190 mA continuous current
Fully specified at ±15 V/+12 V/±5 V
3 V logic-compatible inputs
Rail-to-rail operation
Break-before-make switching action

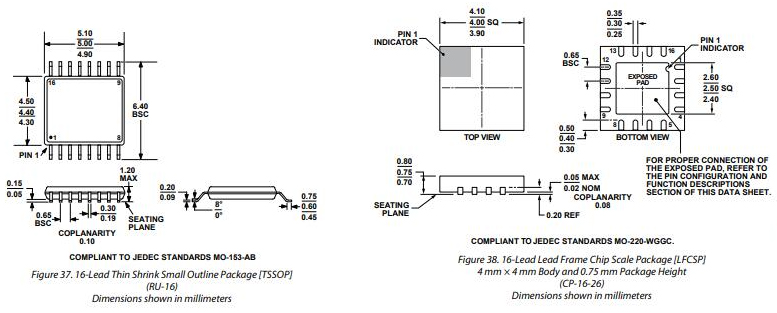

16-lead TSSOP and 4 mm × 4 mm LFCSP
Relay replacement
Audio and video routing
Automatic test equipment
Data acquisition systems
Temperature measurement systems
Avionics Battery-powered systems
Communication systems Medical equipment
The ADG1408 switches one of eight inputs to a common output, as determined by the 3-bit binary address lines, A0, A1, and A2.
The ADG1409 switches one of four differential inputs to a common differential output, as determined by the 2-bit binary address lines, A0 and A1. An EN input on both devices is used to enable or disable the device. When disabled, all channels are switched off.

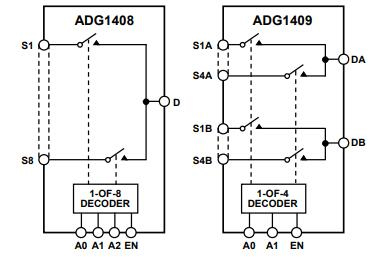

Functional Block Diagram
ADG1408 vs. ADG1409 Functional Block Diagram

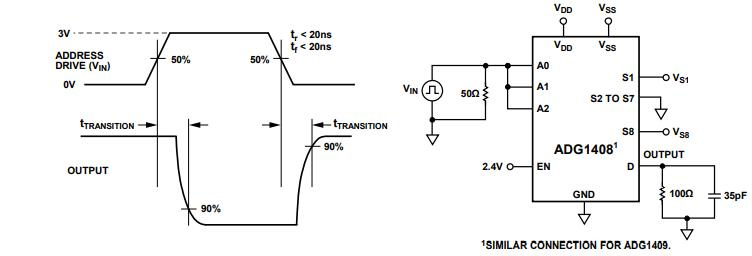

ADG1408-Address to Output Switching Times, tTRANSITION

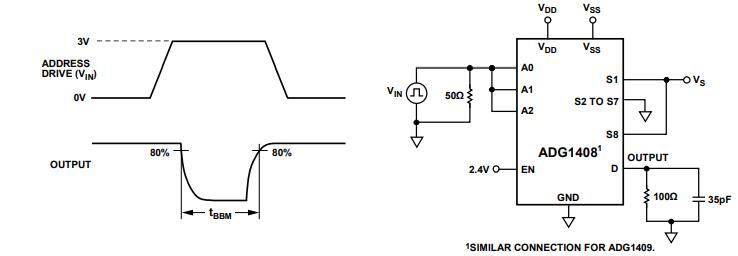

ADG1408-Break-Before-Make Delay, tBBM

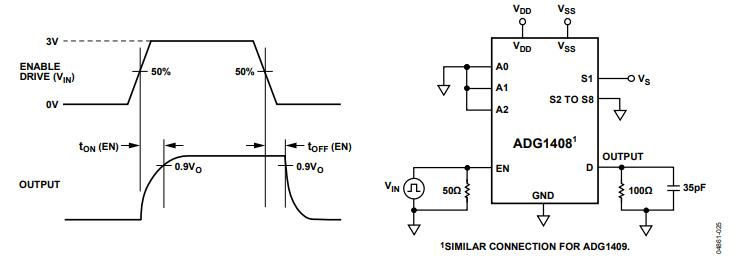

ADG1408 Enable Delay, tON (EN), tOFF (EN)

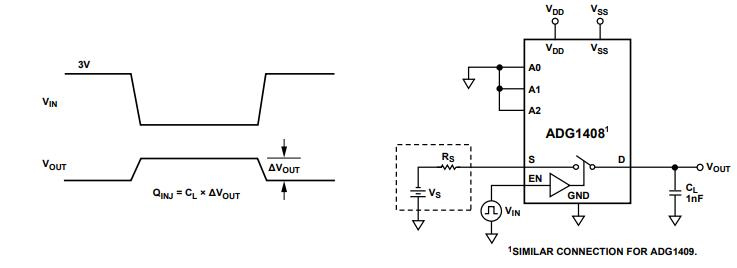

ADG1408 Charge Injection
Analog Devices Inc. ADG1408YRUZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADG1408YRUZ.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | PRODUCTION (Last Updated: 3 months ago) | |
| Factory Lead Time | 8 Weeks | |
| Contact Plating | Tin | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-TSSOP (0.173, 4.40mm Width) | |
| Surface Mount | YES | |
| Number of Pins | 16Pins | |
| Turn Off Delay Time | 100 ns | |
| Operating Temperature | -40°C~125°C TA | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Pbfree Code | no | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 16Terminations | |
| ECCN Code | EAR99 | |
| Resistance | 4Ohm | |
| Max Power Dissipation | 4.9mW | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Functions | 1Function | |
| Supply Voltage | 5V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | ADG1408 | |
| Pin Count | 16 | |
| Operating Supply Voltage | 12V | |
| Number of Channels | 8Channels | |
| Interface | Parallel | |
| Number of Circuits | 1Circuit | |
| Max Supply Voltage | 16.5V | |
| Min Supply Voltage | 5V | |
| Analog IC - Other Type | SINGLE-ENDED MULTIPLEXER | |
| Nominal Supply Current | 1μA | |
| Power Dissipation | 4.9mW | |
| Number of Bits | 8Bits | |
| Throw Configuration | SPST | |
| Voltage - Supply, Single/Dual (±) | 5V~16.5V ±4.5V~16.5V | |
| Neg Supply Voltage-Nom (Vsup) | -5V | |
| Max Dual Supply Voltage | 16.5V | |
| On-State Resistance (Max) | 4.7Ohm | |
| Min Dual Supply Voltage | 4.5V |
| Product Attribute | Attribute Value | |
|---|---|---|
| High Level Output Current | 30mA | |
| Dual Supply Voltage | 5V | |
| Multiplexer/Demultiplexer Circuit | 8:1 | |
| Off-state Isolation-Nom | 70 dB | |
| Current - Leakage (IS(off)) (Max) | 200pA | |
| Channel Capacitance (CS(off), CD(off)) | 14pF 80pF | |
| On-state Resistance Match-Nom | 0.78Ohm | |
| Switch Time (Ton, Toff) (Max) | 120ns, 120ns | |
| Charge Injection | -50pC | |
| Channel-to-Channel Matching (ΔRon) | 200m Ω | |
| Switching | BREAK-BEFORE-MAKE | |
| Switch-on Time-Max | 330ns | |
| Signal Current-Max | 0.03A | |
| Height | 1.05mm | |
| Length | 5mm | |
| Width | 4.4mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Contains Lead |
Download datasheets and manufacturer documentation for ADG1408YRUZ
