ADG1414 SPST Switches: Pinout, Features and Datasheet

Interface - Analog Switches, Multiplexers, Demultiplexers 24-WFQFN Exposed Pad, CSP 11.5Ohm -40°C~125°C TA 5V ADG1414 11.5Ohm 0.5mm IC SW SPST 9.5OHM RON 24LFCSP

1495

Dec 16, 2021

Edmund Acheson

Learn about switches (SPST,SPDT & DPDT)

Interface - Analog Switches, Multiplexers, Demultiplexers 24-WFQFN Exposed Pad, CSP 11.5Ohm -40°C~125°C TA 5V ADG1414 11.5Ohm 0.5mm IC SW SPST 9.5OHM RON 24LFCSP

The ADG1414 is a monolithic complementary metal-oxide semiconductor (CMOS) device containing eight independently selectable switches designed on an industrial CMOS (iCMOS®) process. The ADG1414 is a set of octal, single-pole, single-throw (SPST) switches controlled via a 3-wire serial interface. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.

ADG1414BCPZ-REEL7

3000In Stock
Min.: 1 Mult.: 1
Quantity Unit Price Ext. Price
1+ $20.13043$20.13
10+ $18.99097$189.91
100+ $17.91601$1791.6
500+ $16.9019$8450.95
1000+ $15.94519$15945.19
Unit Price:$20.13043
Subtotal: $20.13
Looking for a better price? Want a lower wholesale price? Please send an RFQ, and we will respond immediately.
Quick Links

ADG1414 Pinout

The following figure is the diagram of ADG1414 pinout.

ADG1414 CAD Model

The followings are ADG1414 Symbol, Footprint, and 3D Model.

PCB Symbol

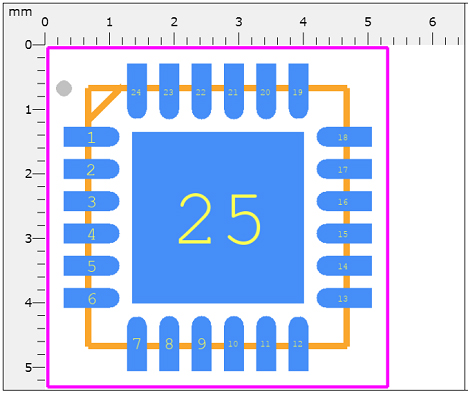

PCB Footprint



3D Model

ADG1414 Overview

The ADG1414 is a monolithic complementary metal-oxide semiconductor (CMOS) device containing eight independently selectable switches designed on an industrial CMOS (iCMOS®) process. iCMOS is a modular manufacturing process combining high voltage CMOS and bipolar technologies. iCMOS components can tolerate high supply voltages while providing increased performance, dramatically lower power consumption, and reduce the package size. The ADG1414 is a set of octal, single-pole, single-throw (SPST) switches controlled via a 3-wire serial interface. On resistance is matched closely between switches and is very flat over the full signal range. Each switch conducts equally well in both directions and the input signal range extends to the supplies. The ADG1414 uses a versatile 3-wire serial interface that operates at clock rates of up to 50 MHz and is compatible with standard SPI, QSPI™, MICROWIRE™, and DSP interface standards. The output of the shift register, SDO, enables a number of these devices to be daisy chained.

This article provides you with a basic overview of the ADG1414 SPST Switches, including its pin descriptions, features and specifications, etc., to help you quickly understand what ADG1414 is.

ADG1414 Features

● SPI interface

● Supports daisy-chain mode

● 9.5 Ω on resistance at 25°C and ±15 V dual supply

● 1.6 Ω on-resistance flatness at 25°C and ±15 V dual supply

● Fully specified at ±15 V, +12 V, ±5 V

● 3 V logic-compatible inputs

● Rail-to-rail operation

● 24-lead TSSOP and 24-lead, 4 mm × 4 mm LFCSP

ADG1414 Product Highlights

● 50 MHz serial interface.

● 9.5 Ω on resistance.

● 1.6 Ω on-resistance flatness.

● 24-lead TSSOP and 4 mm × 4 mm LFCSP packages.

Specifications

Analog Devices Inc. ADG1414BCPZ-REEL7 technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADG1414BCPZ-REEL7.

ADG1414BCPZ-REEL7 Tech Specifications

Analog Devices Inc. ADG1414BCPZ-REEL7 technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADG1414BCPZ-REEL7.

Product Attribute Attribute Value
Lifecycle StatusPRODUCTION (Last Updated: 1 week ago)
Factory Lead Time16 Weeks
Mounting TypeSurface Mount
Package / Case24-WFQFN Exposed Pad, CSP
Surface MountYES
Number of Pins24Pins
Turn Off Delay Time35 ns
Operating Temperature-40°C~125°C TA
PackagingTape & Reel (TR)
JESD-609 Codee3
Pbfree Codeno
Part StatusActive
Moisture Sensitivity Level (MSL)3 (168 Hours)
Number of Terminations24Terminations
ECCN CodeEAR99
Resistance11.5Ohm
Terminal FinishMatte Tin (Sn)
Max Power Dissipation2.8mW
Terminal PositionQUAD
Terminal FormNO LEAD
Peak Reflow Temperature (Cel)260
Number of Functions8Functions
Product Attribute Attribute Value
Supply Voltage5V
Terminal Pitch0.5mm
Time@Peak Reflow Temperature-Max (s)40
Base Part NumberADG1414
Pin Count24
Qualification StatusNot Qualified
Operating Supply Voltage12V
Number of Channels1Channel
InterfaceParallel
Max Supply Voltage16.5V
Min Supply Voltage4.5V
Test Frequency1MHz
Power Dissipation2.8mW
Max Supply Current1μA
Turn On Delay Time93 ns
Number of Inputs8Inputs
Voltage - Supply, Single/Dual (±)12V ±4.5V~16.5V
Supply TypeDual, Single
Neg Supply Voltage-Nom (Vsup)-5V
Max Dual Supply Voltage16.5V
On-State Resistance (Max)11.5Ohm
Min Dual Supply Voltage4.5V
Product Attribute Attribute Value
Dual Supply Voltage15V
Multiplexer/Demultiplexer Circuit1:1
Off-state Isolation-Nom70 dB
Current - Leakage (IS(off)) (Max)150pA
Channel Capacitance (CS(off), CD(off))8pF
On-state Resistance Match-Nom0.6Ohm
Switch CircuitSPST - NO
Switch Time (Ton, Toff) (Max)93ns, 35ns
Insertion Loss (dB)0.55 dB
Charge Injection10pC
Channel-to-Channel Matching (ΔRon)550m Ω
SwitchingBREAK-BEFORE-MAKE
Switch-on Time-Max320ns
Switch-off Time-Max70ns
Normal PositionNO
Length4mm
Height Seated (Max)1mm
REACH SVHCNo SVHC
RoHS StatusROHS3 Compliant
Lead FreeContains Lead
0 Products View Similar

ADG1414 Functional Block Diagram

The following is the Functional Block Diagram of ADG1414.

Functional Block Diagram

ADG1414 Equivalent

ADG1414 Applications

● Automatic test equipment

● Data acquisition systems

● Battery-powered systems

● Sample-and-hold systems

● Audio signal routing

● Video signal routing

● Communication systems

ADG1414 Package

The following diagrams show the ADG1414 package.

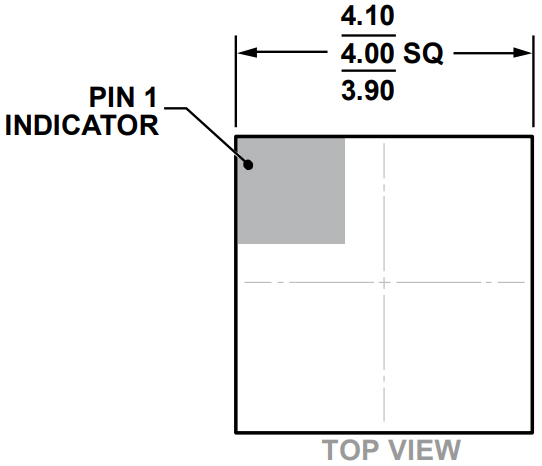

Top View



Bottom View

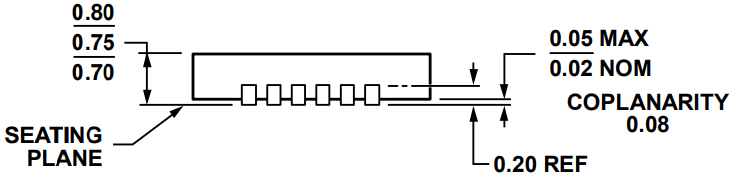

Side View

ADG1414 Manufacturer

Analog Devices (NASDAQ: ADI) is a world leader in the design, manufacture, and marketing of a broad portfolio of high performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs) used in virtually all types of electronic equipment. Since our inception in 1965, we have focused on solving the engineering challenges associated with signal processing in electronic equipment. Used by over 100,000 customers worldwide, our signal processing products play a fundamental role in converting, conditioning, and processing real-world phenomena such as temperature, pressure, sound, light, speed, and motion into electrical signals to be used in a wide array of electronic devices.
