ANALOG DEVICES ADG202AKNZAnalogue Switch, Quad Channel, SPST, 4 Channels, 90 ohm,15V, DIP, 16 Pins
The ADG202AKNZ is a monolithic CMOS device comprising four independently selectable switches.
ADG202AKNZ Analog Switch: Feature, Specification, Datasheet
ANALOG DEVICES ADG202AKNZAnalogue Switch, Quad Channel, SPST, 4 Channels, 90 ohm,15V, DIP, 16 Pins The ADG202AKNZ is a monolithic CMOS device comprising four independently selectable switches.
182
Apr 20, 2021
Prudence
ADG202AKNZ
1576In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $11.62964 | $11.63 |
| 10+ | $10.97136 | $109.71 |
| 100+ | $10.35034 | $1035.03 |
| 500+ | $9.76447 | $4882.23 |
| 1000+ | $9.21176 | $9211.76 |
Unit Price:$11.62964
Subtotal: $11.63
Quick Links
ADG202AKNZ Description
They are designed on an enhanced LC2MOS process which gives an increased signal handling capacity of ±15V. These switches also feature high switching speeds and low RON.
The ADG202AKNZ consists of four SPST switches. They differ only in that the digital control logic is inverted. All devices exhibit break before makes switching action. Inherent in the design is low charge injection for minimum transients when switching the digital inputs.
ADG202AKNZ Features
44V supply maximum rating
±15V analog signal range
Low RON (60Ω)
Low leakage (0.5nA)
Break before make switching
Extended plastic temperature range (-40℃ to +85℃)
Low power dissipation (33mW)
Available in 16-lead DIP/SOIC and 20-lead PLCC/LCCC Packages
Superior second source: ADG201A replaces DG201A, HI-201; ADG202A replaces DG202
ADG202AKNZ Advantages
Extended signal range:
These switches are fabricated on an enhanced LC2MOS process, resulting in high breakdown and an increased analog signal range of ±15V.
Single supply operation:
For applications where the analog signal is unipolar (0V to 15V), the switches can be operated from a single +15V supply.
Low leakage:
Leakage currents in the range of 500pA make these switches suitable for high precision circuits. The added feature of Break before Make allows for multiple outputs to be tied together for multiplexer applications while keeping leakage errors to a minimum.
ADG202AKNZ CAD Model

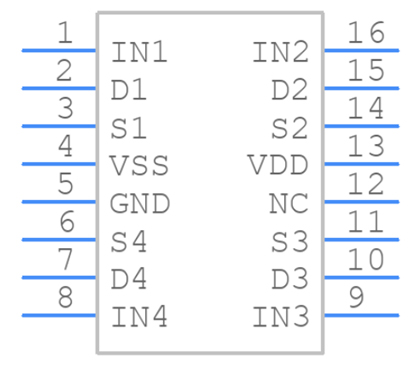

Symbol

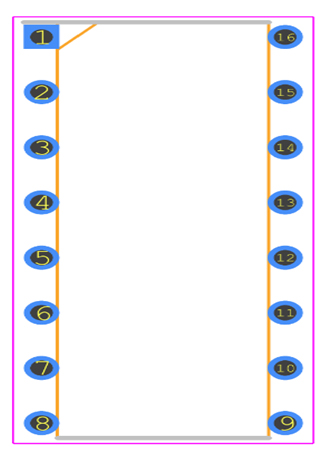

Footprint

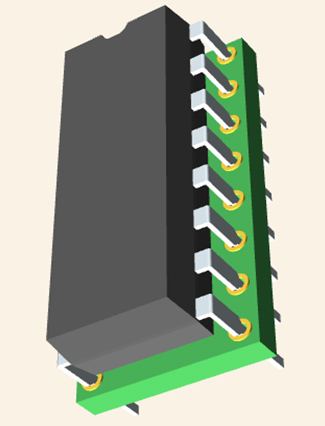

3D Model
Specifications
Analog Devices Inc. ADG202AKNZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADG202AKNZ.
ADG202AKNZ Tech Specifications
ADG202AKNZ Tech Specifications
Analog Devices Inc. ADG202AKNZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADG202AKNZ.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | PRODUCTION (Last Updated: 3 months ago) | |
| Factory Lead Time | 8 Weeks | |
| Contact Plating | Tin | |
| Mounting Type | Through Hole | |
| Package / Case | 16-DIP (0.300, 7.62mm) | |
| Surface Mount | NO | |
| Number of Pins | 16Pins | |
| Turn Off Delay Time | 250 ns | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Pbfree Code | no | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 16Terminations | |
| ECCN Code | EAR99 | |
| Resistance | 90Ohm | |
| Max Power Dissipation | 470mW | |
| Number of Functions | 1Function | |
| Supply Voltage | 15V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Base Part Number | ADG202 | |
| Pin Count | 16 | |
| Operating Supply Voltage | 15V | |
| Polarity | Non-Inverting | |
| Number of Channels | 4Channels | |
| Interface | Parallel | |
| Max Supply Voltage | 25V | |
| Operating Supply Current | 600μA | |
| Power Dissipation | 33mW | |
| Max Supply Current | 2mA | |
| Throw Configuration | SPST | |
| Turn On Delay Time | 300 ns | |
| Voltage - Supply, Single/Dual (±) | 10V~15V ±10V~15V | |
| Supply Type | Dual | |
| Neg Supply Voltage-Nom (Vsup) | -15V | |
| Max Dual Supply Voltage | 22V | |
| On-State Resistance (Max) | 90Ohm | |
| High Level Output Current | 30mA | |
| Dual Supply Voltage | 15V | |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Off-state Isolation-Nom | 80 dB | |
| Current - Leakage (IS(off)) (Max) | 2nA | |
| Channel Capacitance (CS(off), CD(off)) | 5pF | |
| On-state Resistance Match-Nom | 5Ohm | |
| Switch Circuit | SPST - NO | |
| Switch Time (Ton, Toff) (Max) | 300ns, 250ns | |
| Charge Injection | 20pC | |
| Channel-to-Channel Matching (ΔRon) | 4.5 Ω | |
| Switching | BREAK-BEFORE-MAKE | |
| Drain to Source Resistance | 60mOhm | |
| Normal Position | NO | |
| Height | 3.3mm | |
| Length | 20.07mm | |
| Width | 6.35mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Contains Lead |
ADG202AKNZ Functional Block Diagram

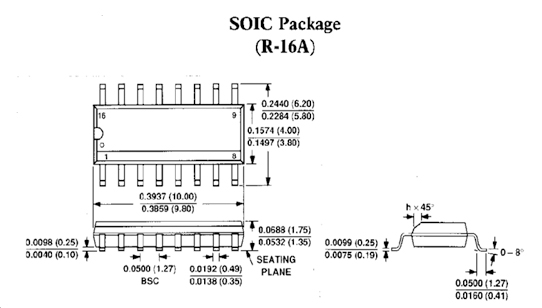

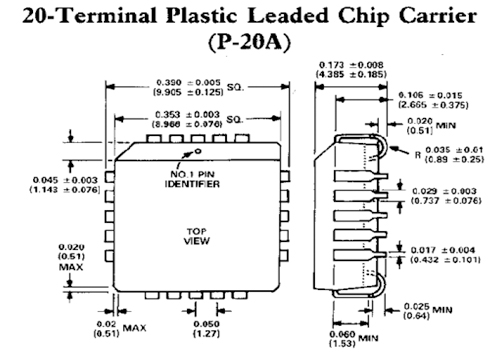

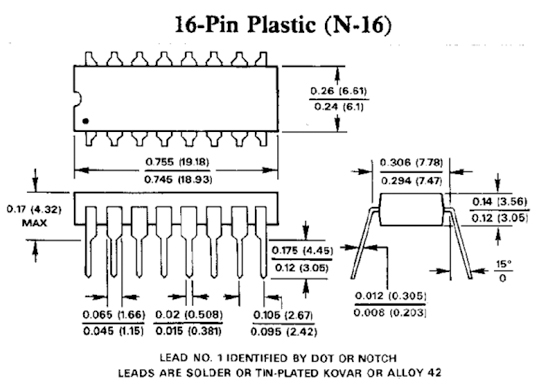

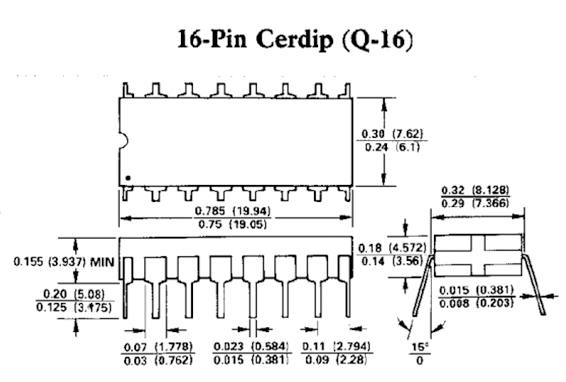

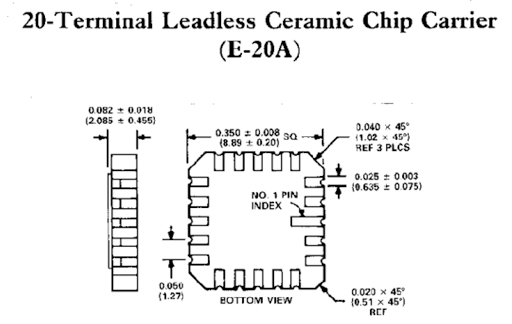

ADG202AKNZ Outline Dimension

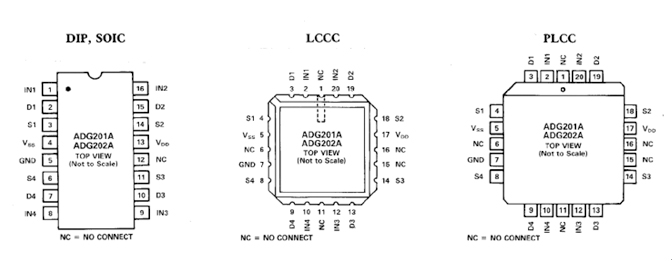

ADG202AKNZ Pin Configurations
