IC TRANSCEIVER FULL 2/2 18DIP
The ADM242ANZ belongs to the family of high-speed RS-232 line drivers/receivers offering transmission rates up to 200 kB/s.
ADM242ANZ Receiver： Pinout, Specification, and Datasheet
IC TRANSCEIVER FULL 2/2 18DIP The ADM242ANZ belongs to the family of high-speed RS-232 line drivers/receivers offering transmission rates up to 200 kB/s.
166
Apr 11, 2021
Cynthia
ADM242ANZ
158In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $10.13811 | $10.14 |
| 10+ | $9.56425 | $95.64 |
| 100+ | $9.02288 | $902.29 |
| 500+ | $8.51215 | $4256.08 |
| 1000+ | $8.03033 | $8030.33 |
Unit Price:$10.13811
Subtotal: $10.14
Quick Links
ADM242ANZ Pinout
ADM242ANZ 3D Model
Symbol

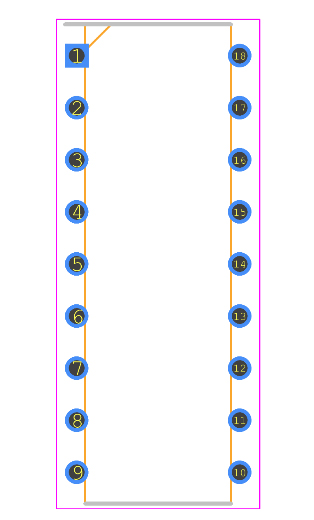

Footprint

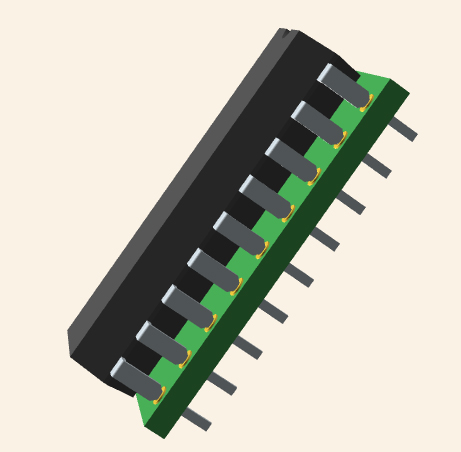

3D Model
ADM242ANZ Description
Operating from a single 5 V power supply, a highly efficient on-chip charge pump using small (0.1 µF) external capacitors allows RS-232 bipolar levels to be developed. Two RS-232 drivers and two RS-232 receivers are provided on each device.
The devices are fabricated on BiCMOS, an advanced mixed technology process that combines low-power CMOS with high-speed bipolar circuitry. This allows for transmission rates up to 200 kB/s, yet minimizes the quiescent power supply current to under 5 mA.
The ADM242 combines both shutdowns (SHDN) and enable (EN) functions. The shutdown function reduces the supply current to 0.1 mA. During the shutdown, the transmitters are disabled but the receivers continue to operate normally. The enable function allows the receiver outputs to be disabled thereby facilitating sharing a common bus. The ADM242 is available in 18-lead DIP and in a wide surface-mount (SOIC) package.
ADM242ANZ Features
200 kB/s Transmission Rate
Small (0.1 F) Charge Pump Capacitors
Single 5 V Power Supply
Meets All EIA-232-E and V.28 Specifications
Two Drivers and Two Receivers
On-Board DC-DC Converters
±9 V Output Swing with 5 V Supply
±30 V Receiver Input Levels
Pin Compatible with MAX222/MAX232A/MAX242
ADM242ANZ Applications
Computers
Peripherals
Modems
Printers
Instruments
Specifications
Analog Devices Inc. ADM242ANZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADM242ANZ.
ADM242ANZ Tech Specifications
ADM242ANZ Tech Specifications
Analog Devices Inc. ADM242ANZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADM242ANZ.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | PRODUCTION (Last Updated: 3 weeks ago) | |
| Factory Lead Time | 8 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 18-DIP (0.300, 7.62mm) | |
| Number of Pins | 18Pins | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Pbfree Code | no | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 18Terminations | |
| ECCN Code | EAR99 | |
| Type | Transceiver |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 4.5V~5.5V | |
| Terminal Position | DUAL | |
| Number of Functions | 2Functions | |
| Supply Voltage | 5V | |
| Base Part Number | ADM242 | |
| Pin Count | 18 | |
| Operating Supply Voltage | 5V | |
| Operating Supply Current | 8mA | |
| Nominal Supply Current | 8mA | |
| Max Supply Current | 8mA | |
| Logic Function | Receiver, Transceiver | |
| Data Rate | 200kbps | |
| Output Characteristics | 3-STATE | |
| Differential Output | NO | |
| Output Polarity | INVERTED | |
| Protocol | RS232 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Input Characteristics | SCHMITT TRIGGER | |
| Number of Drivers/Receivers | 2/2Drivers/Receiver | |
| Receiver Number of Bits | 2Bits | |
| Duplex | Full | |
| Receiver Hysteresis | 400mV | |
| Number of Drivers | 2Drivers | |
| Number of Transceivers | 1Transceiver | |
| ESD Protection | No | |
| Receive Delay-Max | 500 ns | |
| Simplex/Duplex | Full Duplex | |
| Transmit Delay-Max | 3500 ns | |
| Height | 3.3mm | |
| Length | 22.86mm | |
| Width | 6.35mm | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Contains Lead |

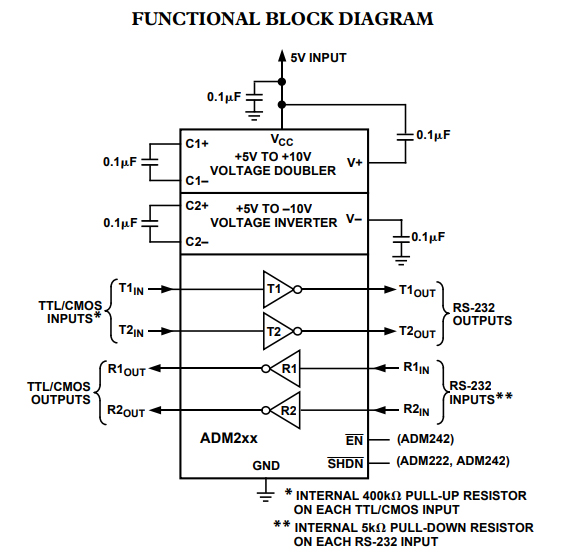

ADM242ANZ Functional Block Diagram

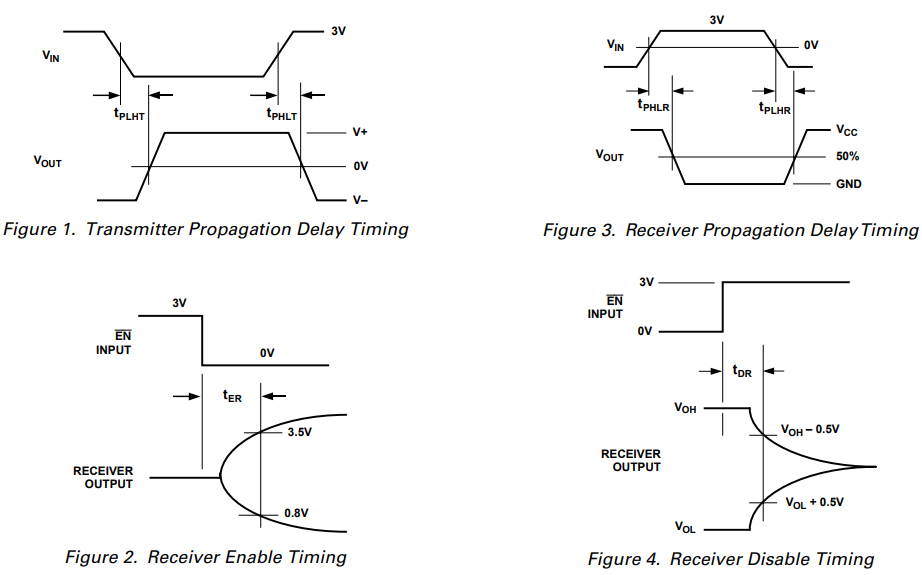

ADM242ANZ Test Circuit

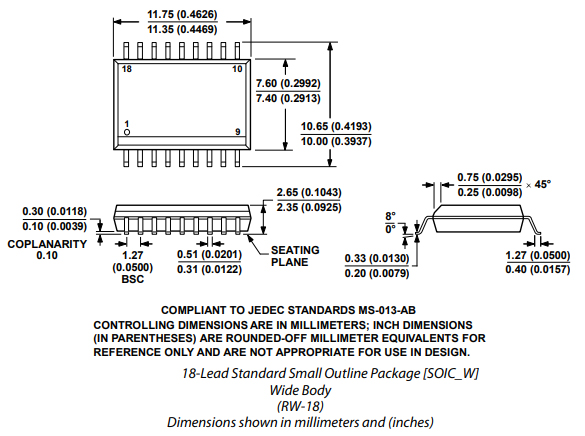

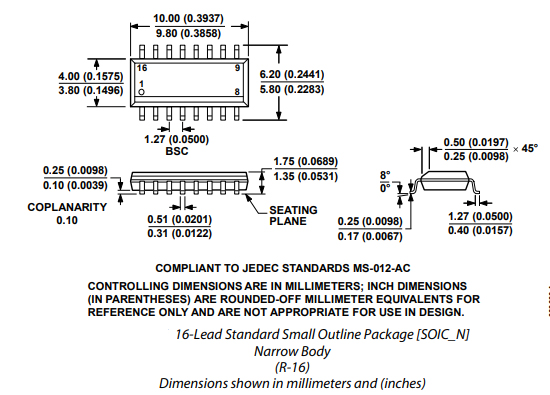

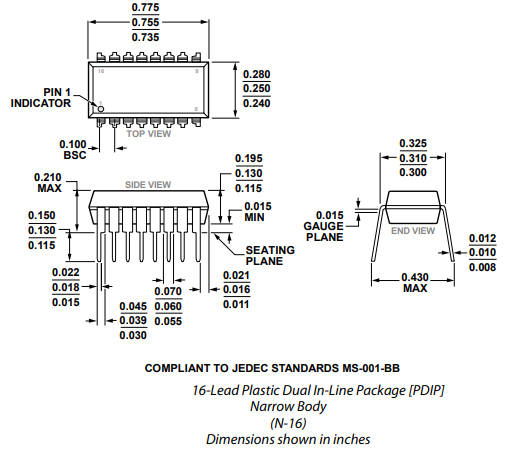

ADM242ANZ Outline Dimension
ADM242ANZ Manufacturer
Analog Devices (NASDAQ: ADI) is a world leader in the design, manufacture, and marketing of a broad portfolio of high performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs) used in virtually all types of electronic equipment. Since our inception in 1965, we have focused on solving the engineering challenges associated with signal processing in electronic equipment. Used by over 100,000 customers worldwide, our signal processing products play a fundamental role in converting, conditioning, and processing real-world phenomena such as temperature, pressure, sound, light, speed, and motion into electrical signals to be used in a wide array of electronic devices.
Datasheet PDF
Download datasheets and manufacturer documentation for Analog Devices Inc. ADM242ANZ.
ADM242ANZ Documents
ADM242ANZ Documents
Download datasheets and manufacturer documentation for ADM242ANZ
PCN Assembly/Origin
Mult Dev Assembly Trsf 7/Mar/2019
ConflictMineralStatement
Analog-Devices-company-33.pdf
