ADM2582E: Signal and Power Isolated RS-485 Transceiver
Digital Isolators ANALOG DEVICES - ADM2587EBRWZ - RS422/RS485 Transceiver Isolated, 3V to 5.5V Supply, SOIC-20
The ADM2587EBRWZ is a fully integrated signal and power isolated data transceiver with ±15 kV ESD protection and is suitable for high-speed communication on multipoint transmission lines. This article is going to explain details about the ADM2587EBRWZ transceiver.
ADM2587EBRWZ

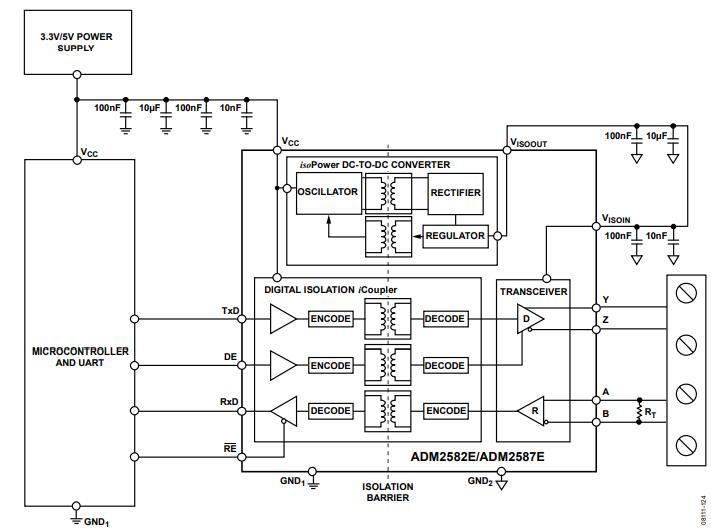

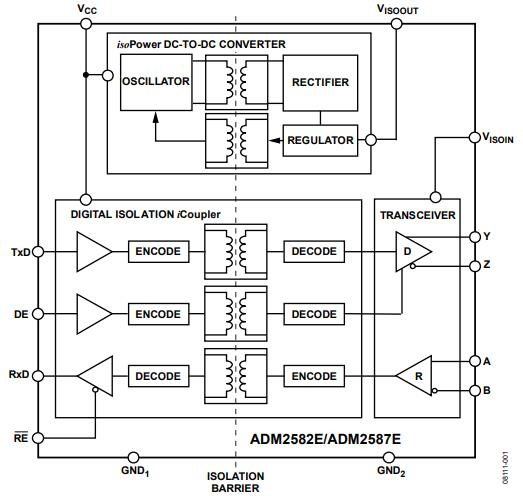

The ADM2587EBRWZ is a fully integrated signal and power isolated data transceiver with ±15 kV ESD protection and is suitable for high-speed communication on multipoint transmission lines. The ADM2587EBRWZ includes an integrated isolated dc-to-dc power supply, which eliminates the need for an external dc-to-dc isolation block.

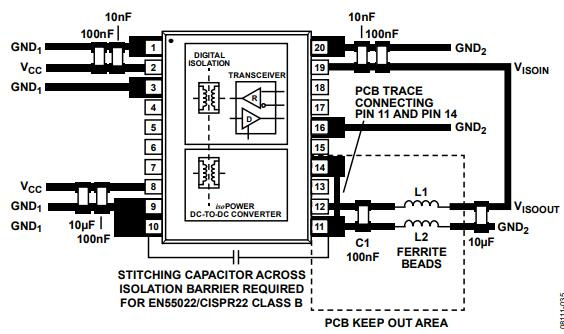

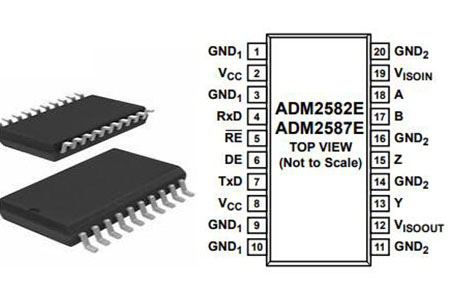

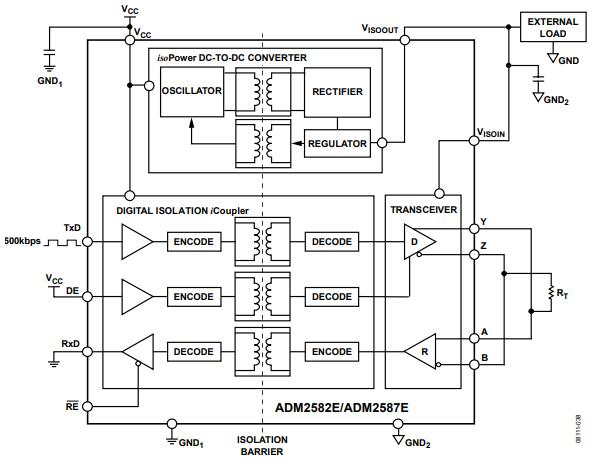

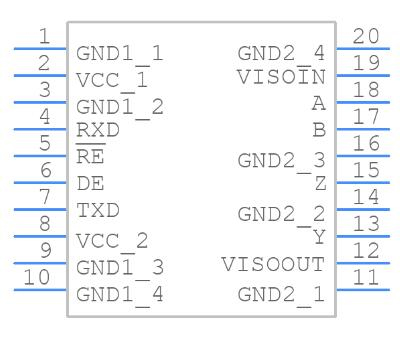

ADM2587EBRWZ Symbol

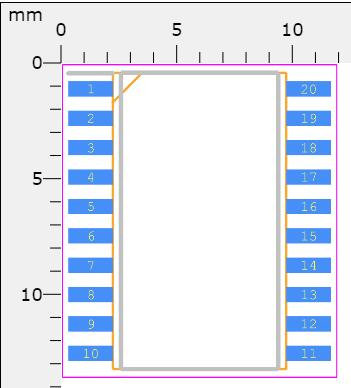

ADM2587EBRWZ Footprint

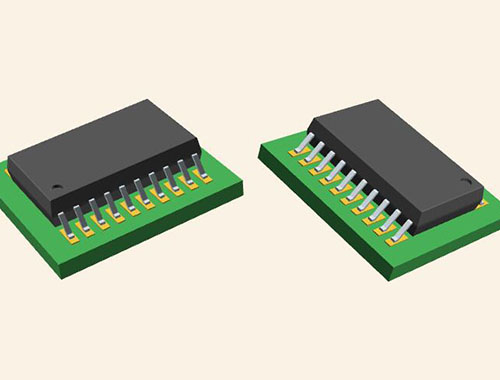

ADM2587EBRWZ 3D Model
Analog Devices Inc. ADM2587EBRWZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADM2587EBRWZ.
Analog Devices Inc. ADM2587EBRWZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADM2587EBRWZ.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | PRODUCTION (Last Updated: 3 weeks ago) | |
| Factory Lead Time | 20 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 20-SOIC (0.295, 7.50mm Width) | |
| Number of Pins | 20Pins | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| Series | IsoPower®, iCoupler® | |
| JESD-609 Code | e3 | |
| Pbfree Code | no | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 20Terminations | |
| ECCN Code | EAR99 | |
| Type | RS422, RS485 | |
| Voltage - Supply | 3.3V 5V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING |
| Product Attribute | Attribute Value | |
|---|---|---|
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 3.3V | |
| Frequency | 500kHz | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | ADM2587 | |
| Pin Count | 20 | |
| Voltage - Isolation | 2500Vrms | |
| Operating Supply Voltage | 5V | |
| Number of Channels | 3Channels | |
| Interface | RS-422, RS-485 | |
| Operating Supply Current | 125mA | |
| Nominal Supply Current | 125mA | |
| Max Supply Current | 125mA | |
| Propagation Delay | 200 ns | |
| Logic Function | Transceiver | |
| Data Rate | 500kbps | |
| Differential Output | YES | |
| Input Characteristics | DIFFERENTIAL SCHMITT TRIGGER | |
| Rise / Fall Time (Typ) | 1.1μs 1.1μs Max |
| Product Attribute | Attribute Value | |
|---|---|---|
| Driver Number of Bits | 1Bit | |
| Channel Type | Unidirectional | |
| Receiver Number of Bits | 1Bit | |
| Number of Transceivers | 1Transceiver | |
| Simplex/Duplex | Full Duplex | |
| Common Mode Transient Immunity (Min) | 25kV/μs | |
| Transmit Delay-Max | 700 ns | |
| Inputs - Side 1/Side 2 | 2/1 | |
| Max Junction Temperature (Tj) | 120°C | |
| Isolated Power | Yes | |
| Ambient Temperature Range High | 85°C | |
| Height | 2.65mm | |
| Length | 13mm | |
| Width | 7.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Contains Lead |
Isolated RS-485 /RS-422 transceiver, configurable as half or full-duplex
IsoPower integrated isolated dc-to-dc converter
±15 kV ESD protection on RS-485 input/output pins
Complies with ANSI/TIA/EIA-485-A-98 and ISO 8482:1987(E)
ADM2587EBRWZ data rate: 500 kbps
5 V or 3.3 V operations
Connect up to 256 nodes on one bus
Open- and short-circuit, fail-safe receiver inputs
High common-mode transient immunity: >25 kV/µs
Thermal shutdown protection
Safety and regulatory approvals
UL recognition: 2500 V RMS for 1 minute per UL 1577
VDE Certificates of Conformity
DIN EN 60747-5-2 (VDE 0884 Part 2): 2003-01
VIORM = 560 V peak
Operating temperature range: −40°C to +85°C
Highly integrated, 20-lead, wide-body SOIC package
Isolated RS-485 /RS-422 interfaces
Industrial field networks
Multipoint data transmission systems

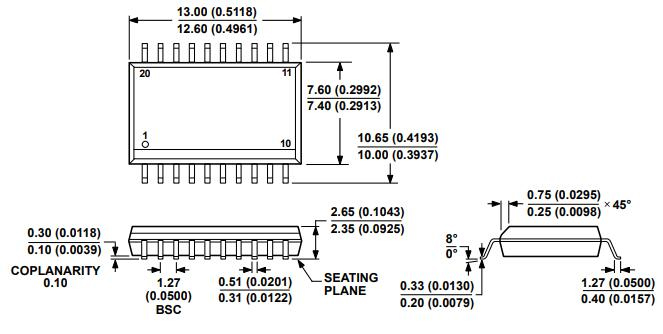

ADM2587EBRWZ Package Outline
Analog Devices (NASDAQ: ADI) is a world leader in the design, manufacture, and marketing of a broad portfolio of high-performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs) used in virtually all types of electronic equipment. Since our inception in 1965, we have focused on solving the engineering challenges associated with signal processing in electronic equipment, Used by over 100,000 customers worldwide, our signal processing products play a fundamental role in converting, conditioning, and processing real-world phenomena such as temperature, pressure, sound, light, speed, and motion into electrical signals to be used in a wide array of electronic devices.
Hot sale parts from ADI are as follows: adm3053brwz, adm2483brwz, ad8495armz, adv7513bswz, ad620anz, etc.
Download datasheets and manufacturer documentation for ADM2587EBRWZ
