The ADM3053BRWZ is an isolated controller area network (CAN) physical layer transceiver with an integrated isolated dc-to-dc converter. This article is going to introduce functions and stock about ADM3053BRWZ transceivers.
ADM3053BRWZ
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $16.08113 | $16.08 |
| 10+ | $15.17088 | $151.71 |
| 100+ | $14.31215 | $1431.22 |
| 500+ | $13.50203 | $6751.02 |
| 1000+ | $12.73776 | $12737.76 |
The ADM3053BRWZ is a physical layer transceiver for the isolated controller area network (CAN) with an integrated isolated dc-to-dc converter.
The device combines a 2-channel isolator, a CAN transceiver, and an Analog Devices isoPower® dc-to-dc converter into a single SOIC surface mount package using Analog Devices ' iCoupler ® technology. A pair of square waveforms are output by an on-chip oscillator, which drives an internal transformer to supply isolated power. The device is powered by a single 5 V supply realizing a fully isolated CAN solution.

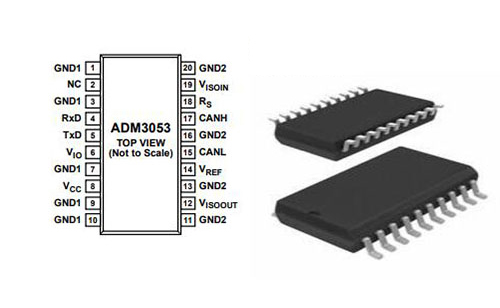

ADM3053BRWZ Symbol

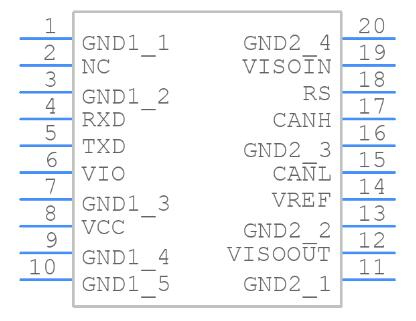

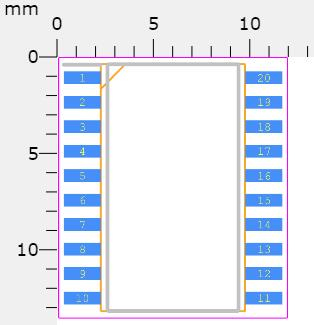

ADM3053BRWZ Footprint

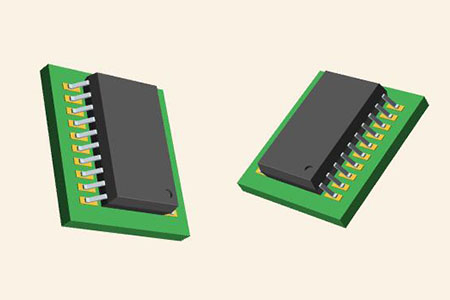

ADM3053BRWZ 3D Model
Analog Devices Inc. ADM3053BRWZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADM3053BRWZ.
Analog Devices Inc. ADM3053BRWZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADM3053BRWZ.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | PRODUCTION (Last Updated: 3 weeks ago) | |
| Factory Lead Time | 8 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 20-SOIC (0.295, 7.50mm Width) | |
| Number of Pins | 20Pins | |
| Weight | 800.987426mg | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| Series | IsoPower®, iCoupler® | |
| JESD-609 Code | e3 | |
| Pbfree Code | no | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 20Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Type | CAN | |
| Voltage - Supply | 3.3V 5V | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 5V | |
| Time@Peak Reflow Temperature-Max (s) | 30 | |
| Base Part Number | ADM3053 | |
| Pin Count | 20 | |
| Voltage - Isolation | 2500Vrms | |
| Operating Supply Voltage | 5V | |
| Number of Channels | 2Channels | |
| Interface | CAN, Serial | |
| Operating Supply Current | 232mA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Max Supply Current | 232mA | |
| Data Rate | 1Mbps | |
| Channel Type | Unidirectional | |
| Number of Transceivers | 1Transceiver | |
| Common Mode Transient Immunity (Min) | 25kV/μs | |
| Inputs - Side 1/Side 2 | 1/1 | |
| Isolated Power | Yes | |
| Height | 2.35mm | |
| Length | 13mm | |
| Width | 7.6mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Contains Lead |

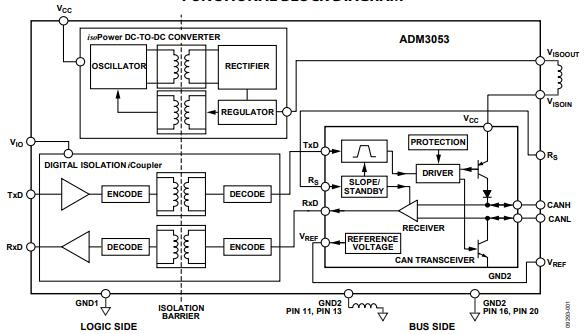

ADM3053BRWZ Functional Block Diagram
2.5 kV RMS signal and power isolated CAN transceiver
isoPower integrated isolated dc-to-dc converter
5 V operations on VCC
5 V or 3.3 V operations on VIO
Complies with ISO 11898 standard
High-speed data rates of up to 1 Mbps
Unpowered nodes do not disturb the bus
Connect 110 or more nodes on the bus
Slope control for reduced EMI
Thermal shutdown protection
High common-mode transient immunity : >25 kV/μs
Safety and regulatory approvals
UL recognition
2500 V RMS for 1 minute per UL 1577
CSA Component Acceptance Notice 5A
VDE Certificate of Conformity
DIN EN 60747-5-2 (VDE 0884 Part 2): 2003-01
VIORM = 560 V peak
Industrial operating temperature range (−40°C to +85°C)
Available in a wide-body, 20-lead SOIC package
CAN data buses
Industrial field networks

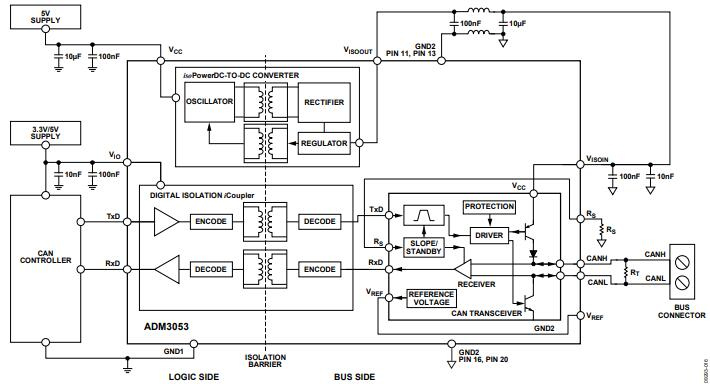

ADM3053BRWZ Applications Circuit

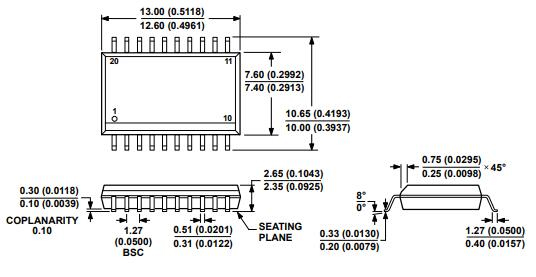

ADM3053BRWZ Package Outline
