ANALOG DEVICES ADM3222ANZ RS232 Transceiver, 2-drivers, 3V-5.5V Supply, DIP-18
The ADM3222 transceiver is high-speed, 2-channel RS-232/V.28 interface devices that operate from a single 3.3 V power supply.
ADM3222ANZ Transceivers: Pinout, Specification, Datasheet
ANALOG DEVICES ADM3222ANZ RS232 Transceiver, 2-drivers, 3V-5.5V Supply, DIP-18 The ADM3222 transceiver is high-speed, 2-channel RS-232/V.28 interface devices that operate from a single 3.3 V power supply.
165
Apr 29, 2021
Grace
ADM3222ANZ
4In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $8.95626 | $8.96 |
| 10+ | $8.4493 | $84.49 |
| 100+ | $7.97104 | $797.1 |
| 500+ | $7.51985 | $3759.93 |
| 1000+ | $7.0942 | $7094.2 |
Unit Price:$8.95626
Subtotal: $8.96
Quick Links

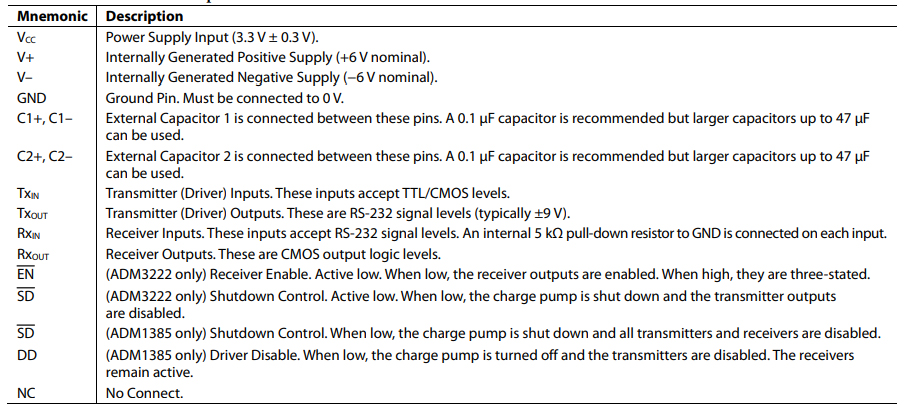

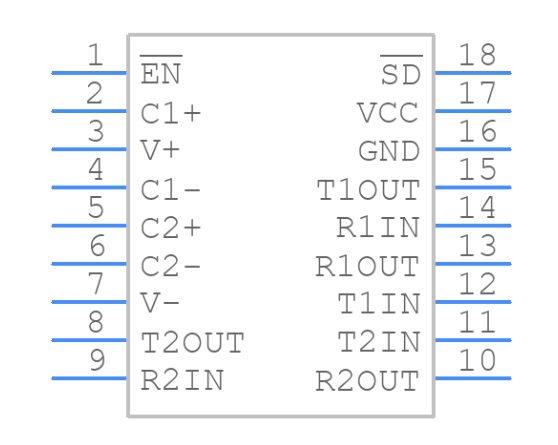

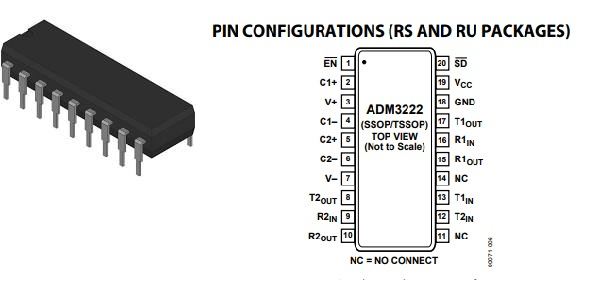

ADM3222ANZ Pinout

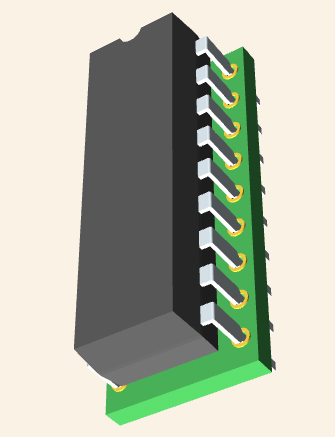

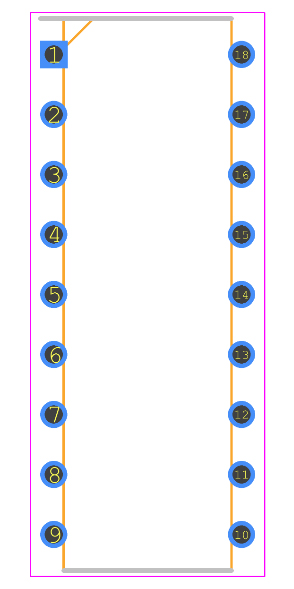

ADM3222ANZ CAD Model
ADM3222ANZ Description
Low power consumption and a shutdown facility (ADM3222) make them ideal for battery-powered portable instruments. The ADM3222 parts conform to the EIA-232E and CCITT V.28 specifications and operate at data rates up to 460 kbps. Four external 0.1 μF charge pump capacitors are used for the voltage doubler/inverter, permitting operation from a single 3.3 V supply. The ADM3222 contains additional enable and shutdown circuitry. The EN input can be used to three-state the receiver outputs. The SD input is used to power down the charge pump and transmitter outputs, reducing the quiescent current to less than 0.5 μA. The receivers remain enabled during shutdown unless disabled using EN. The ADM3222 is available in 18-lead PDIP and SOIC_W and in 20-lead SSOP and TSSOP.
ADM3222ANZ Features
460 kbps data rate
Specified at 3.3 V
Meets EIA-232E specifications
0.1 μF charge pump capacitors
Low power shutdown (ADM3222 and ADM1385)
PDIP, SOIC_N, SOIC_W, SSOP, and TSSOP options
Upgrade for MAX3222/MAX3232 and LTC1385
ESD protection to IEC 1000-4-2 (801.2) on RS-232 pins (ADM3202 only)
±8 kV: contact discharge
±15 kV: air gap discharge
ADM3222ANZ Applications
General-purpose RS-232 data link
Portable instruments
Printers, palmtop computers, PDAs
Specifications
Analog Devices Inc. ADM3222ANZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADM3222ANZ.
ADM3222ANZ Tech Specifications
ADM3222ANZ Tech Specifications
Analog Devices Inc. ADM3222ANZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADM3222ANZ.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | PRODUCTION (Last Updated: 1 month ago) | |
| Factory Lead Time | 8 Weeks | |
| Contact Plating | Tin | |
| Mount | Through Hole | |
| Mounting Type | Through Hole | |
| Package / Case | 18-DIP (0.300, 7.62mm) | |
| Number of Pins | 18Pins | |
| Operating Temperature | -40°C~85°C | |
| Packaging | Tube | |
| JESD-609 Code | e3 | |
| Pbfree Code | no | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 18Terminations | |
| ECCN Code | EAR99 | |
| Type | Transceiver |
| Product Attribute | Attribute Value | |
|---|---|---|
| Voltage - Supply | 3V~5.5V | |
| Terminal Position | DUAL | |
| Number of Functions | 2Functions | |
| Supply Voltage | 3.3V | |
| Base Part Number | ADM3222 | |
| Pin Count | 18 | |
| Operating Supply Voltage | 3.3V | |
| Interface | RS-232 | |
| Operating Supply Current | 2.1mA | |
| Nominal Supply Current | 12mA | |
| Max Supply Current | 12mA | |
| Logic Function | Receiver, Transceiver | |
| Data Rate | 460Kbps | |
| Differential Output | NO | |
| Protocol | RS232 | |
| Input Characteristics | SCHMITT TRIGGER |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Drivers/Receivers | 2/2Drivers/Receiver | |
| Receiver Number of Bits | 2Bits | |
| Duplex | Full | |
| Receiver Hysteresis | 400mV | |
| Number of Drivers | 2Drivers | |
| Number of Transceivers | 1Transceiver | |
| ESD Protection | No | |
| Simplex/Duplex | Full Duplex | |
| Height | 3.3mm | |
| Length | 22.86mm | |
| Width | 6.35mm | |
| REACH SVHC | No SVHC | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Contains Lead |

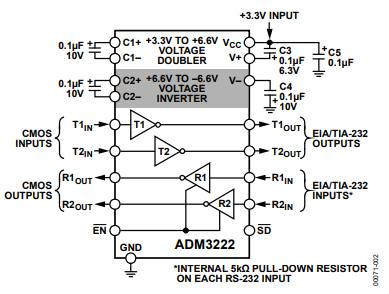

ADM3222ANZ Functional Block Diagram

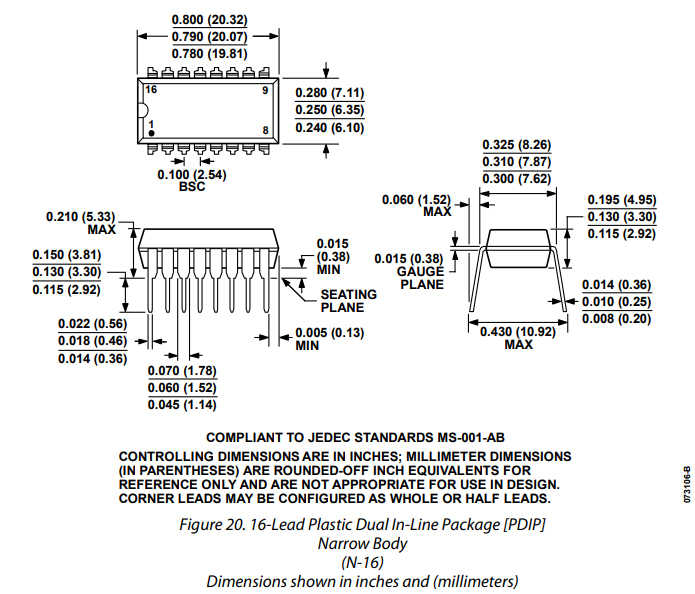

ADM3222ANZ Ourline Dimension
ADM3222ANZ Manufacturer
Analog Devices (NASDAQ: ADI) is a world leader in the design, manufacture, and marketing of a broad portfolio of high-performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs) used in virtually all types of electronic equipment. Since our inception in 1965, we have focused on solving the engineering challenges associated with signal processing in electronic equipment. Used by over 100,000 customers worldwide, our signal processing products play a fundamental role in converting, conditioning, and processing real-world phenomena such as temperature, pressure, sound, light, speed, and motion into electrical signals to be used in a wide array of electronic devices.
Datasheet PDF
Download datasheets and manufacturer documentation for Analog Devices Inc. ADM3222ANZ.
ADM3222ANZ Documents
ADM3222ANZ Documents
Download datasheets and manufacturer documentation for ADM3222ANZ
PCN Assembly/Origin
Mult Dev Assembly Trsf 7/Mar/2019
ConflictMineralStatement
Analog-Devices-company-33.pdf
Frequently Asked Questions
1.What ' s The difference between adm3222 and adm1385?
The ADM3222/ADM1385 contain additional enable and shutdown circuitry. The EN input may be used to three-state the receiver outputs. The SD input is used to power down the charge pump and transmitter outputs reducing the quiescent current to less than 1 µA. The receivers remain enabled during shutdown unless disabled using EN.
2.What is an ADM transceiver?
The ADM3202/ADM3222/ADM1385 transceivers are high speed, 2-channel RS-232/V.28 interface devices that operate from a single 3.3 V power supply. Low power consumption and a shutdown facility (ADM3222/ADM1385) make them ideal for battery-powered portable instruments.
FAQ
1.What ' s The difference between adm3222 and adm1385?
The ADM3222/ADM1385 contain additional enable and shutdown circuitry. The EN input may be used to three-state the receiver outputs. The SD input is used to power down the charge pump and transmitter outputs reducing the quiescent current to less than 1 µA. The receivers remain enabled during shutdown unless disabled using EN.
2.What is an ADM transceiver?
The ADM3202/ADM3222/ADM1385 transceivers are high speed, 2-channel RS-232/V.28 interface devices that operate from a single 3.3 V power supply. Low power consumption and a shutdown facility (ADM3222/ADM1385) make them ideal for battery-powered portable instruments.
