Quad Channel Single ADC Delta-Sigma 3.3ksps 12-bit Serial 10-Pin VSSOP T/R
ADS1015 is an ultra-small, low-power, 12-bit analog-to-digital converter with internal reference. This article enforces pinout, datasheet, applications, and other details about ADS1015.
ADS1015IDGSR

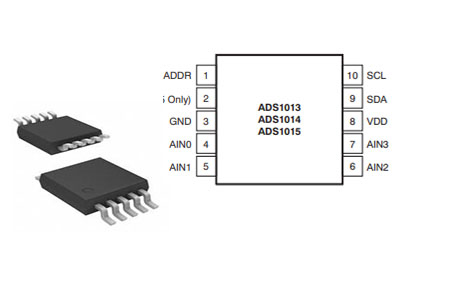

Symbol

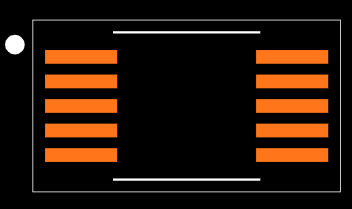

Footprint
3D Model

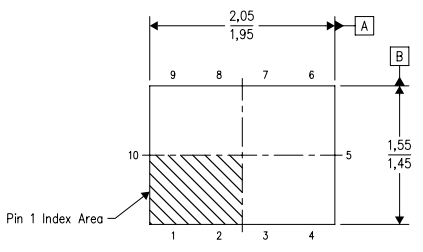

The ADS1015 is a 2mm × 1,5mm × 0,4mm precision analog-to-digital converter (ADCs) with 12 bits of resolution offered in an ultra-small, leadless MSOP-10 package. The ADS1015 is designed with precision, power, and ease of implementation in mind. The ADS105 features an onboard reference and oscillator.
Texas Instruments ADS1015IDGSR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments ADS1015IDGSR.
Texas Instruments ADS1015IDGSR technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments ADS1015IDGSR.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 6 Weeks | |
| Lifecycle Status | ACTIVE (Last Updated: 3 days ago) | |
| Surface Mount | YES | |
| Package / Case | 10-TFSOP, 10-MSOP (0.118, 3.00mm Width) | |
| Mounting Type | Surface Mount | |
| Contact Plating | Gold | |
| Number of Pins | 10Pins | |
| Number of Elements | 1 Element | |
| Packaging | Tape & Reel (TR) | |
| Operating Temperature | -40°C~125°C | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Number of Terminations | 10Terminations | |
| ECCN Code | EAR99 | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 3.3V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Pitch | 0.5mm | |
| Base Part Number | ADS1015 | |
| Pin Count | 10 | |
| Operating Supply Voltage | 3.3V | |
| Polarity | Bipolar | |
| Configuration | MUX-PGA-ADC | |
| Max Supply Voltage | 5.5V | |
| Min Supply Voltage | 2V | |
| Power Dissipation | 900μW | |
| Number of Bits | 12Bits | |
| Input Type | Differential, Single Ended | |
| Architecture | Sigma-Delta | |
| Number of Inputs | 2, 4Input | |
| Converter Type | ADC, DELTA-SIGMA | |
| Supply Type | Single | |
| Reference Type | Internal | |
| Data Interface | I2C | |
| Resolution | 1.5 B | |
| Sampling Rate | 3.3 ksps | |
| Voltage - Supply, Analog | 2V~5.5V | |
| Voltage - Supply, Digital | 2V~5.5V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Analog In Channels | 4Analog In Channels | |
| Sampling Rate (Per Second) | 3.3k | |
| Output Bit Code | 2'S COMPLEMENT BINARY | |
| Integral Nonlinearity (INL) | 0.5 LSB | |
| Conversion Rate | 3.3 ksps | |
| Analog Input Voltage-Max | 4.096V | |
| Output Format | SERIAL | |
| Max Supply Voltage (DC) | 5.5V | |
| Min Supply Voltage (DC) | 2V | |
| Analog Input Voltage-Min | -4.096V | |
| Features | PGA, Selectable Address | |
| Width | 3mm | |
| Length | 3mm | |
| Height | 1.07mm | |
| Thickness | 1.02mm | |
| RoHS Status | ROHS3 Compliant | |
| Radiation Hardening | No | |
| REACH SVHC | No SVHC | |
| Lead Free | Lead Free |
• Ultra-Small X2QFN Package: 2 mm × 1.5 mm × 0.4 mm
• 12-Bit Noise-Free Resolution
• Wide Supply Range: 2.0 V to 5.5 V
• Low Current Consumption: 150 μA (Continuous-Conversion Mode)
• Programmable Data Rate: 128 SPS to 3.3 kSPS
• Single-Cycle Settling
• Internal Low-Drift Voltage Reference
• Internal Oscillator
• I2C Interface: Four Pin-Selectable Addresses
• Four Single-Ended or Two Differential Inputs (ADS1015)
• Programmable Comparator (ADS1014 and ADS1015)
• Operating Temperature Range:–40°C to +125°C
• PORTABLE INSTRUMENTATION
• CONSUMER GOODS
• BATTERY MONITORING
• TEMPERATURE MEASUREMENT
• FACTORY AUTOMATION AND PROCESS CONTROLS
