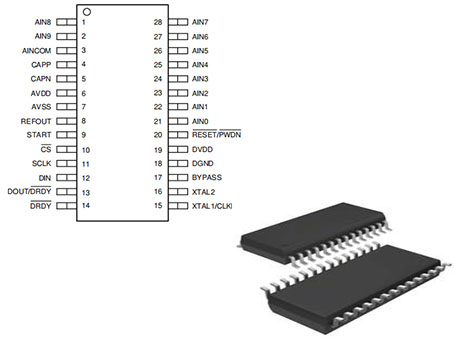

ADS1262 ADC: Feature, Pinout and Datasheet

The ADS1262 is low-noise, low-drift, 38.4-kSPS, delta-sigma (ΔΣ) ADCs with an integrated PGA, reference, and internal fault monitors. The ADS1262 integrates an auxiliary, 24-bit, ΔΣ ADC intended for background measurements. The sensor-ready ADCs provide complete, highaccuracy, one-chip measurement solutions for the most-demanding sensor applications, including weigh scales, strain-gauge sensors, thermocouples, and resistance temperature devices (RTD). The ADCs are comprised of a low-noise, CMOS PGA (gains 1 to 32), a ΔΣ modulator, followed by a programmable digital filter. The flexible analog frontend (AFE) incorporates two sensor-excitation current sources suitable for direct RTD measurement. A single-cycle settling digital filter maximizes multipleinput conversion throughput, while providing 130-dB rejection of 50-Hz and 60-Hz line cycle interference. The ADS1262 is pin and functional compatible. These devices are available in a 28-pin TSSOP package and are fully specified over the –40°C to +125°C temperature range.

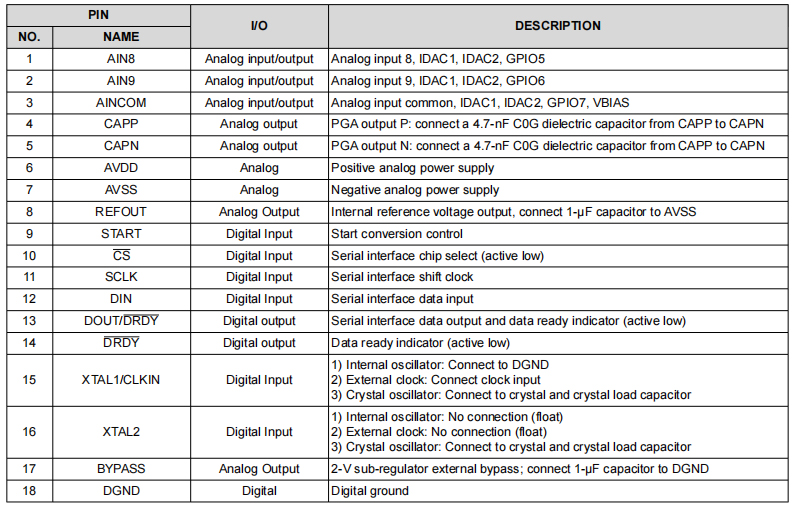

Pin Functions

• Precision, 32-bit, ΔΣ ADC

• Auxiliary 24-bit, ΔΣ ADC (ADS1263)

• Data rates: 2.5 SPS to 38400 SPS

• Differential input, CMOS PGA

• 11 multifunction analog inputs

• High-accuracy architecture:

– Offset drift: 1 nV/°C

– Gain drift: 0.5 ppm/°C

– Noise: 7 nVRMS (2.5 SPS, gain = 32)

– Linearity: 3 ppm

• 2.5-V internal voltage reference:

– Temperature drift: 2 ppm/°C

• 50-Hz and 60-Hz rejection

• Single-cycle settled conversions

• Dual sensor excitation current sources

• Internal fault monitors

• Internal ADC test signal

• 8 general-purpose inputs/outputs

• Factory automation and control:

– Analog input modules

– Temperature controllers

– Weigh modules

• Instrumentation:

– Process analytics

– Lab and field instrumentation

– Weigh scales

Symbol

Footprint

Texas Instruments ADS1262IPW technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments ADS1262IPW.

Texas Instruments Incorporated (TI) is an American technology company headquartered in Dallas, Texas, that designs and manufactures semiconductors and various integrated circuits, which it sells to electronics designers and manufacturers globally. It is one of the top 10 semiconductor companies worldwide based on sales volume.The company's focus is on developing analog chips and embedded processors, which account for more than 80% of its revenue.TI also produces TI digital light processing technology and education technology products including calculators, microcontrollers and multi-core processors. The company holds 45,000 patents worldwide as of 2016.

Download datasheets and manufacturer documentation for Texas Instruments ADS1262IPW.
