ADXL 326 accelerometer punch analysis
ANALOG DEVICES - ADXL326BCPZ - MEMS Accelerometer, 3-Axis, Analogue, X, Y, Z, ± 16g, 1.8 V, 3.6 V, LFCSP
ADXL326 is a small and low-power accelerometer with 3-axis ±16 g. This article enforces datasheet, pinout, applications, and other details about ADXL326.
ADXL326BCPZ
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $9.01485 | $9.01 |
| 10+ | $8.50457 | $85.05 |
| 100+ | $8.02318 | $802.32 |
| 500+ | $7.56904 | $3784.52 |
| 1000+ | $7.1406 | $7140.6 |

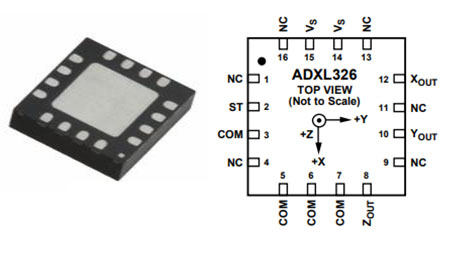

Symbol

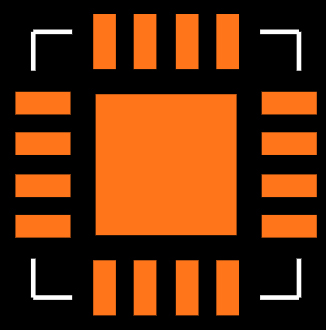

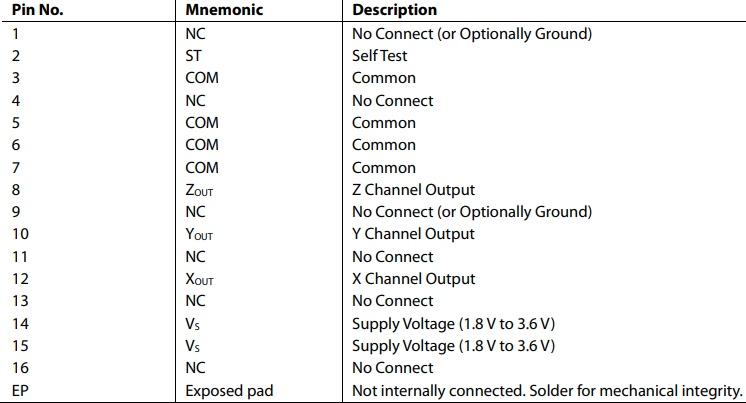

Footprint

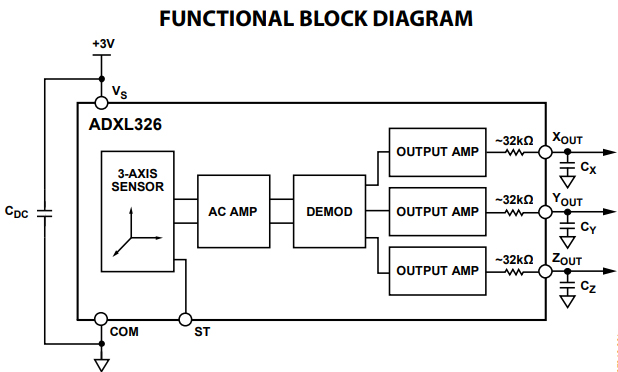

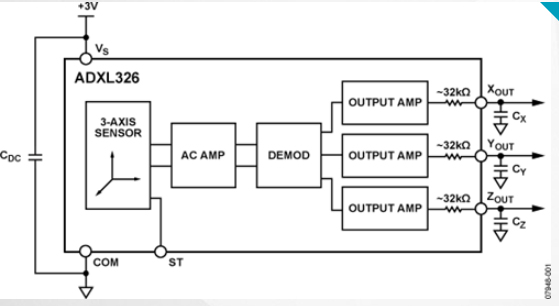

The ADXL326 is a small, low-power, complete 3-axis accelerometer with signal conditioned voltage outputs. The product measures acceleration with a minimum full-scale range of ±16 g. It can measure the static acceleration of gravity in tilt sensing applications, as well as dynamic acceleration, resulting from motion, shock, or vibration.
Analog Devices Inc. ADXL326BCPZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADXL326BCPZ.
Analog Devices Inc. ADXL326BCPZ technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADXL326BCPZ.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | PRODUCTION (Last Updated: 1 month ago) | |
| Factory Lead Time | 26 Weeks | |
| Contact Plating | Tin | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-LQFN Exposed Pad, CSP | |
| Surface Mount | YES | |
| Number of Pins | 16Pins | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tray | |
| JESD-609 Code | e3 | |
| Pbfree Code | no | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 16Terminations | |
| Termination | SMD/SMT | |
| ECCN Code | EAR99 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Type | Analog | |
| HTS Code | 9031.80.80.85 | |
| Voltage - Supply | 1.8V~3.6V | |
| Terminal Position | QUAD | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 3V | |
| Terminal Pitch | 0.65mm | |
| Depth | 4mm | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | ADXL326 | |
| Pin Count | 16 | |
| Output Type | Analog Voltage | |
| Supply Voltage-Max (Vsup) | 3.6V | |
| Power Supplies | 3V | |
| Supply Voltage-Min (Vsup) | 1.8V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Operating Supply Current | 350μA | |
| Nominal Supply Current | 350μA | |
| -3db Bandwidth | 1.6 kHz | |
| Axis | X, Y, Z | |
| Acceleration Range | ±19g | |
| Sensitivity (mV/G) | 57 | |
| Features | Adjustable Bandwidth | |
| Height | 1.43mm | |
| Length | 4mm | |
| Width | 4mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Contains Lead |
3-axis sensing
Small, low profile package

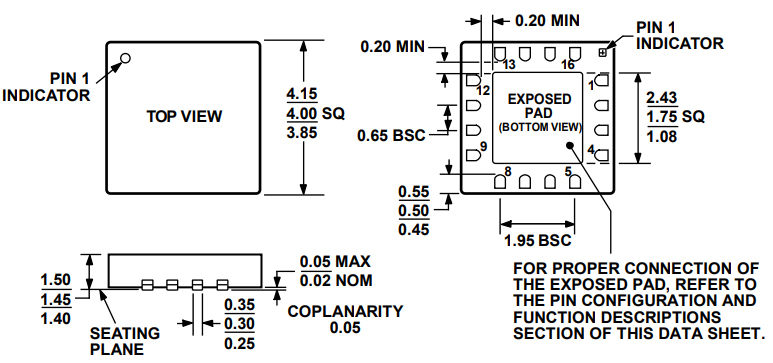

4 mm × 4 mm × 1.45 mm LFCSP
Low power: 350 μA typical
Single-supply operation: 1.8 V to 3.6 V
10,000 g shock survival
Excellent temperature stability
Bandwidth adjustment with a single capacitor per axis
RoHS/WEEE lead-free compliant
Cost-sensitive, low power, motion- and tilt-sensing applications
Mobile devices
Gaming systems
Disk drive protection
Image stabilization
Sports and health devices
Analog Devices (NASDAQ: ADI) is a world leader in the design, manufacture, and marketing of a broad portfolio of high-performance analog, mixed-signal, and digital signal processing (DSP) integrated circuits (ICs) used in virtually all types of electronic equipment. Since our inception in 1965, we have focused on solving the engineering challenges associated with signal processing in electronic equipment. Used by over 100,000 customers worldwide, our signal processing products play a fundamental role in converting, conditioning, and processing real-world phenomena such as temperature, pressure, sound, light, speed, and motion into electrical signals to be used in a wide array of electronic devices.
Download datasheets and manufacturer documentation for Analog Devices Inc. ADXL326BCPZ.
Download datasheets and manufacturer documentation for ADXL326BCPZ
