The ADXL337 is a small, thin, low power, complete 3-axis accelerometer with signal conditioned voltage outputs. This article mainly covers pinout, cad model, application and other details about ADXL337.
ADXL337BCPZ-RL7
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $7.48489 | $7.48 |
| 10+ | $7.06122 | $70.61 |
| 100+ | $6.66153 | $666.15 |
| 500+ | $6.28446 | $3142.23 |
| 1000+ | $5.92873 | $5928.73 |

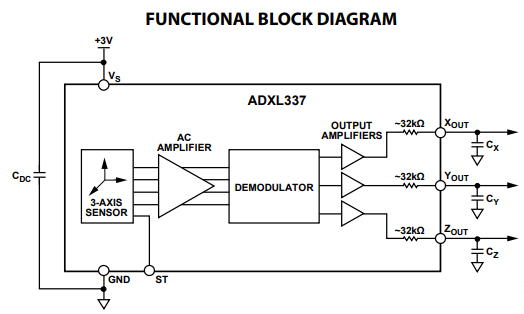

The ADXL337 is a small, thin, low power, complete 3-axis accelerometer with signal conditioned voltage outputs. The product measures acceleration with a minimum full-scale range of ±3 g. It can measure the static acceleration of gravity in tiltsensing applications, as well as dynamic acceleration resulting from motion, shock, or vibration.
Symbol

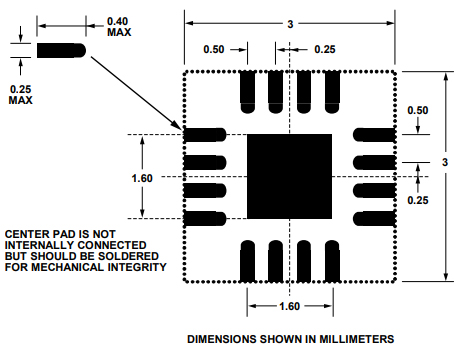

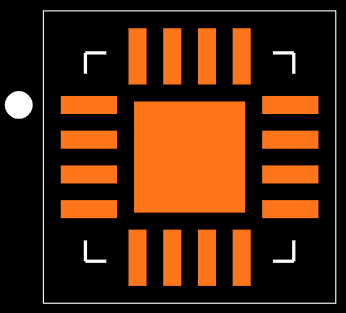

Footprint
3D Model
Analog Devices Inc. ADXL337BCPZ-RL7 technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADXL337BCPZ-RL7.
Analog Devices Inc. ADXL337BCPZ-RL7 technical specifications, attributes, parameters and parts with similar specifications to Analog Devices Inc. ADXL337BCPZ-RL7.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | PRODUCTION (Last Updated: 1 week ago) | |
| Factory Lead Time | 12 Weeks | |
| Contact Plating | Tin | |
| Mounting Type | Surface Mount | |
| Package / Case | 16-LFQFN Exposed Pad, CSP | |
| Surface Mount | YES | |
| Number of Pins | 16Pins | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e3 | |
| Pbfree Code | no | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 16Terminations |
| Product Attribute | Attribute Value | |
|---|---|---|
| ECCN Code | EAR99 | |
| Type | Analog | |
| HTS Code | 9031.80.80.85 | |
| Voltage - Supply | 1.8V~3.6V | |
| Terminal Position | QUAD | |
| Number of Functions | 1Function | |
| Supply Voltage | 3V | |
| Terminal Pitch | 0.5mm | |
| Base Part Number | ADXL337 | |
| Pin Count | 16 | |
| Output Type | Analog Voltage | |
| Supply Voltage-Max (Vsup) | 3.6V | |
| Power Supplies | 3V | |
| Supply Voltage-Min (Vsup) | 1.8V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Operating Supply Current | 300μA | |
| Nominal Supply Current | 300μA | |
| -3db Bandwidth | 1.6 kHz | |
| Axis | X, Y, Z | |
| Acceleration Range | ±3g | |
| Sensitivity (mV/G) | 300 | |
| Features | Adjustable Bandwidth | |
| Length | 3mm | |
| Height Seated (Max) | 1.5mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Contains Lead |
3-axis sensing
Small, low profile package
3 mm × 3 mm × 1.45 mm LFCSP
Low power: 300 μA (typical)
Single-supply operation: 1.8 V to 3.6 V
10,000 g shock survival
Excellent temperature stability
Bandwidth adjustment with a single capacitor per axis
RoHS/WEEE and lead-free compliant
Cost-sensitive, low power, motion- and tilt-sensing applications
Mobile devices
Gaming systems
Disk drive protection
Image stabilization
Sports and health devices
ADXL337 accelerometers can be used to measure vibration on cars, machines, buildings, process control systems and safety installations. They can also be used to measure seismic activity, inclination, machine vibration, dynamic distance and speed with or without the influence of gravity.
ADXL337 accelerometer works using an electromechanical sensor that is designed to measure either static or dynamic acceleration. Static acceleration is the constant force acting on a body, like gravity or friction. These forces are predictable and uniform to a large extend.
