Data Acquisition - ADCs/DACs - Special Purpose 48-VFQFN Exposed Pad -40°C~105°C 1.7V~5.5V IC DAC 32BIT 768KHZ 8CH 48QFN
120
Dec 9, 2021
Mamie Hubbard
Data Acquisition - ADCs/DACs - Special Purpose 48-VFQFN Exposed Pad -40°C~105°C 1.7V~5.5V IC DAC 32BIT 768KHZ 8CH 48QFN
The AK4458VN is a premium 32-bit DAC with 8 channels of AKM's VELVET SOUND architecture, which has been widely adopted by well-known high-end audio businesses. This article is going to introduce more details about AK4458VN DAC.

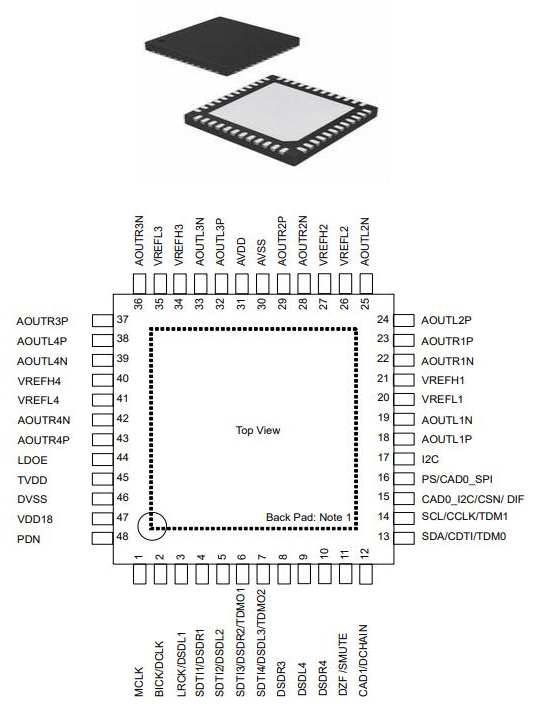

AK4458VN
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $14.14663 | $14.15 |
| 10+ | $13.34588 | $133.46 |
| 100+ | $12.59045 | $1259.05 |
| 500+ | $11.87778 | $5938.89 |
| 1000+ | $11.20546 | $11205.46 |
The AK4458VN is a premium 32-bit DAC with 8 channels of AKM 's VELVET SOUND architecture, which has been widely adopted by well-known high-end audio businesses. With its low-distortion architecture and 32-bit resolution digital filter processing; this technology achieves exquisite sound details. For high-resolution audio source playback, the digital input supports up to 768 kHz PCM and 11.2 MHz DSD (Direct Stream Digital). With a TDM interface and up to 8 channel variations, this premium multi-channel DAC series delivers a simple and best solution to a wide range of applications.

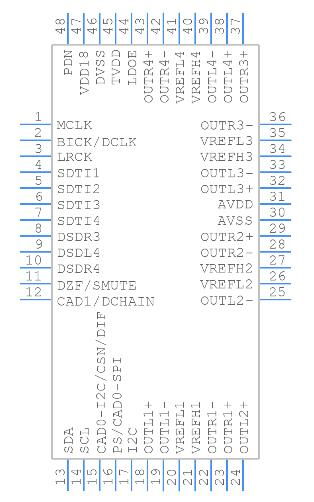

AK4458VN Symbol

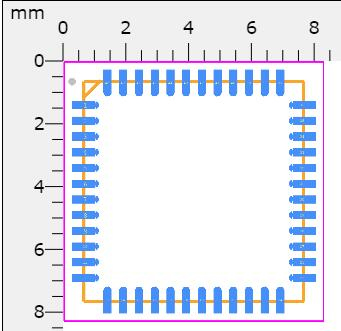

AK4458VN Footprint
AK4458VN 3D Model
AKM Semiconductor Inc. AK4458VN technical specifications, attributes, parameters and parts with similar specifications to AKM Semiconductor Inc. AK4458VN.
AKM Semiconductor Inc. AK4458VN technical specifications, attributes, parameters and parts with similar specifications to AKM Semiconductor Inc. AK4458VN.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 12 Weeks | |
| Mounting Type | Surface Mount | |

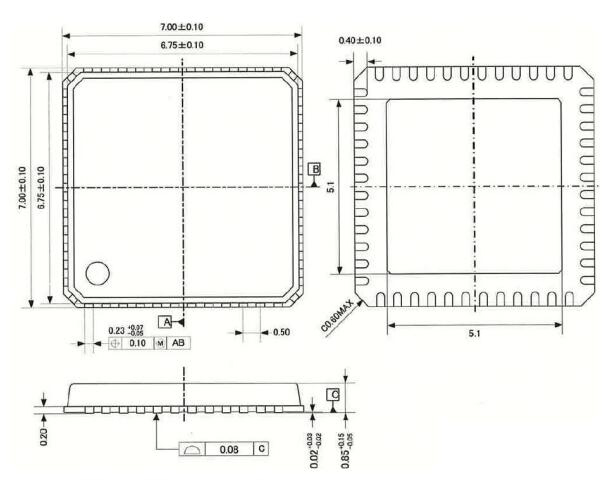

| Package / Case | 48-VFQFN Exposed Pad | |
| Supplier Device Package | 48-QFN (7x7) | |
| Operating Temperature | -40°C~105°C | |
| Packaging | Cut Tape (CT) |
| Product Attribute | Attribute Value | |
|---|---|---|
| Published | 2015 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 2 (1 Year) | |
| Type | DAC, Audio | |
| Voltage - Supply | 1.7V~5.5V | |
| Number of Channels | 8Channels |
| Product Attribute | Attribute Value | |
|---|---|---|
| Data Interface | DSD, I2S | |
| Sampling Rate (Per Second) | 768k | |
| Voltage Supply Source | Analog Digital | |
| Resolution (Bits) | 32 b | |
| RoHS Status | ROHS3 Compliant |
TDM and Daisy Chain configurations for multi-channel applications
USB DACs
USB Headphones Sound
Plate/Bars
Car Audios
AV Receivers
CD/SACD Players
Network Audios
Automotive External Amplifiers
Measuring Instruments and Control Systems
AKM Semiconductor is a wholly-owned subsidiary of Asahi Kasei Microdevices (AKM), Tokyo, Japan. AKMS, located in San Jose, California offers sales, marketing, and design support for North American customers. AKM designs and manufactures CMOS mixed-signal integrated circuits for applications including audio, multimedia, data storage, and telecommunications.
Hot sale parts from AKM are as follows: ak4490eq, ak4556vt, ak4118aeq, etc.
