The AK4490EQ is a new generation Premium 32-bit 2ch DAC that incorporates innovative technology to provide industry-leading low distortion and broad dynamic range. This article is going to cover applications, features, dimensions, and other detail about AK4490EQ DAC.

AK4490EQ

245In Stock

Min.: 1 Mult.: 1

Quantity	Unit Price	Ext. Price
1+	$8.3023	$8.3
10+	$7.83236	$78.32
100+	$7.38902	$738.9
500+	$6.97077	$3485.39
1000+	$6.5762	$6576.2

Unit Price:$8.3023

Subtotal: $8.3

Quick Links

The Introduction to AK4490EQ

The AK4490EQ is a new generation Premium 32-bit 2ch DAC that incorporates innovative technology to provide industry-leading low distortion and broad dynamic range. The AK4490EQ includes a newly invented switching capacitor filter called the "OSR Doubler," which allows it to support a wide spectrum of signals.

The AK4490EQ also has five types of 32-bit digital filters, allowing for simple and flexible sound tuning across a wide range of applications. The AK4490EQ supports PCM data up to 768 kHz and DSD data up to 11.2MHz, making it perfect for high-resolution audio source playback in network audio, USB-DACs, and car audio systems.

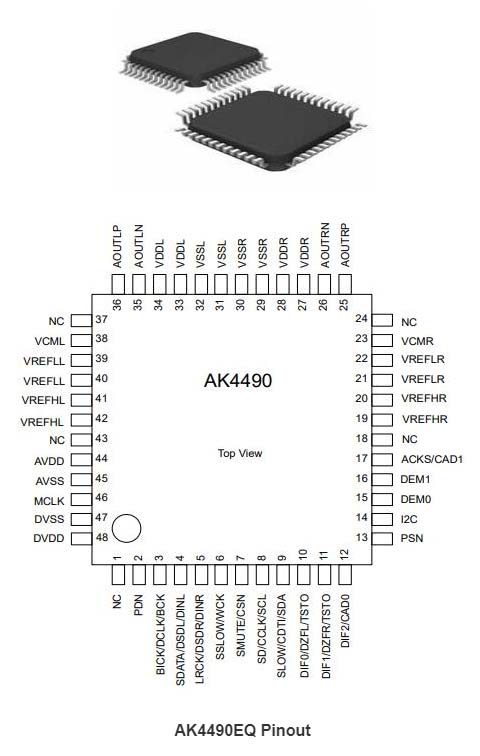

AK4490EQ Pinout

AK4490EQ CAD Model

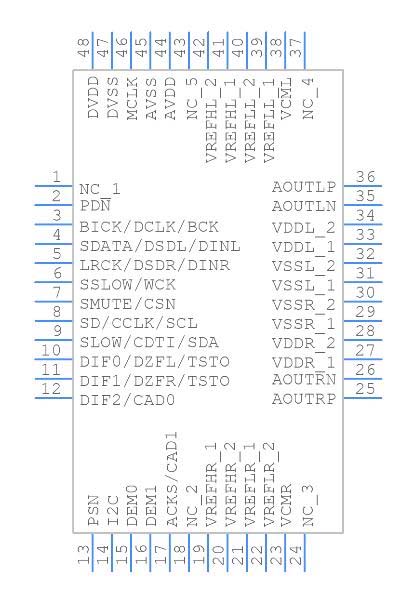

AK4490EQ Symbol

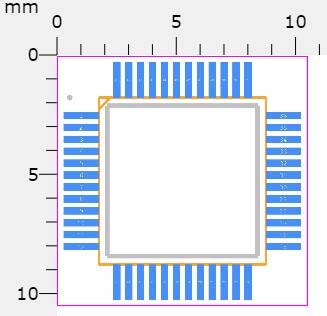

AK4490EQ Footprint

AK4490EQ 3D Model

Specifications

AKM Semiconductor Inc. AK4490EQ technical specifications, attributes, parameters and parts with similar specifications to AKM Semiconductor Inc. AK4490EQ.

AK4490EQ Tech Specifications

AKM Semiconductor Inc. AK4490EQ technical specifications, attributes, parameters and parts with similar specifications to AKM Semiconductor Inc. AK4490EQ.

Product Attribute	Attribute Value
Factory Lead Time	12 Weeks
Mounting Type	Surface Mount
Package / Case	48-LQFP
Supplier Device Package	48-LQFP (7x7)
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)

Product Attribute	Attribute Value
Published	2014
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Type	DAC, Audio
Voltage - Supply	3V~3.6V 4.75V~7.2V
Base Part Number	AK4490

Product Attribute	Attribute Value
Number of Channels	2Channels
Data Interface	DSD, I2S
Sampling Rate (Per Second)	768k
Voltage Supply Source	Analog Digital
Resolution (Bits)	32 b
RoHS Status	ROHS3 Compliant

View Similar

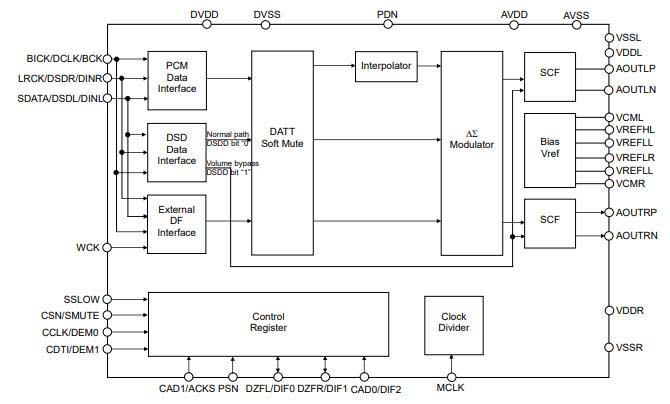

AK4490EQ Block Diagram

AK4490EQ Block Diagram

AK4490EQ Features

256x Oversampling

Sampling Rate: 30 kHz~768 kHz

32-bit 8x Digital Filter

- Ripple: 0.005dB, Attenuation: 100dB

- Short Delay Sharp Roll-off, GD=6.25/fs

- Short Delay Slow Roll-off, GD=5.3/fs

- Sharp Roll-off

- Slow Roll-off

- Super Slow Roll-off

High Tolerance to Clock Jitter

Low Distortion Differential Output

2.8MHz, 5.6MHz, and 11.2MHz DSD Input Support

- Filter (fc=50 kHz, fc=150 kHz, 2.8 MHz mode)

Digital De-emphasis for 32, 44.1, 48 kHz sampling

Soft Mute

Digital Attenuator (255 levels and 0.5dB step)

Mono Mode

External Digital Filter Mode

THD+N: -112dB

DR, S/N: 120dB (Mono mode: 123dB)

I/F Format: 24/32bit MSB justified, 16/20/24/32bit LSB justified, I2

S, DSD

Master Clock:

30 kHz ~ 32 kHz: 1152fs

30 kHz ~ 54 kHz: 512fs or 768fs

30 kHz ~ 108 kHz: 256fs or 384fs

108 kHz ~ 216 kHz: 128fs or 192fs

~ 384 kHz: 64fs or 128fs

~ 768 kHz: 64fs

Power Supply: DVDD=AVDD=3.0~3.6V, VDD1/2=4.75~7.2V

Digital Input Level: CMOS

Package: 48-pin LQFP

AK4490EQ Applications

AV Receivers
CD/SACD player
Network Audios
USB DAC s
USB Headphones
Sound
Plates/Bars
Car Audios
Automotive External Amplifiers
Measurement Equipment
Control Systems
Public Audios (PA)
Smart Cellular Phones
IC-Recorders
Bluetooth Headphones
HD Audio/Voice Conference Systems

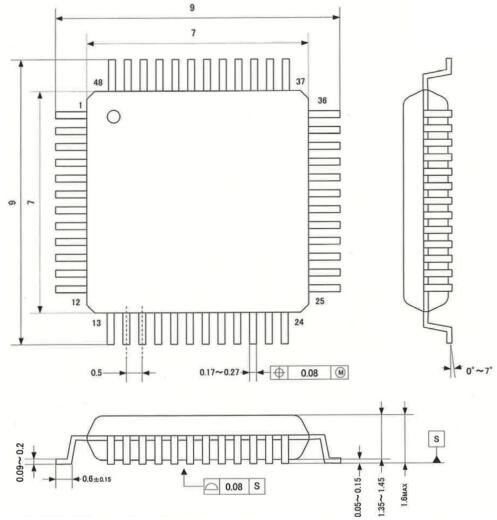

AK4490EQ Package Dimensions

AK4490EQ Manufacturer

AKM Semiconductor is a wholly-owned subsidiary of Asahi Kasei Microdevices (AKM), Tokyo, Japan. AKMS, located in San Jose, California offers sales, marketing, and design support for North American customers. AKM designs and manufactures CMOS mixed-signal integrated circuits for applications including audio, multimedia, data storage, and telecommunications.

Hot sale parts from AKM are as follows: ak4458vn, ak4556vt, ak4118aeq, etc.

Frequently Asked Questions

What type of digital filters does the AK4490EQ have?

32-bit

What does the AK4490 support?

PCM data up to 768 kHz and DSD data up to 11.2MHz

What is AK4490EQ used for?

The AK4490EQ accepts up to 768 kHz PCM data and 11.2 MHz DSD data, ideal for a high-resolution audio source playback that is becoming widespread in network audios, USB-DACs, and car audio systems.
