IC LED DRVR LIN PWM 20MA SOD123 The AL5809 is a constant current linear LED driver and it provides a cost-effective two pin solution. It has an excellent temperature stability of 20ppm/°C and the current accuracy ± 5% regulated over a wide voltage and temperature range.
122
Mar 3, 2022
Moore Garcia
LED Driver circuit explained - Constant current vs Constant Voltage - Let there be light
IC LED DRVR LIN PWM 20MA SOD123
The AL5809 is a constant current linear LED driver and it provides a cost-effective two pin solution. It has an excellent temperature stability of 20ppm/°C and the current accuracy ± 5% regulated over a wide voltage and temperature range. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
AL5809-20S1-7
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.3538 | $0.35 |
| 10+ | $0.33378 | $3.34 |
| 100+ | $0.31488 | $31.49 |
| 500+ | $0.29706 | $148.53 |
| 1000+ | $0.28025 | $280.25 |
The following figure is the diagram of AL5809 Pinout.
Pinout
The followings are AL5809 Symbol, Footprint, and 3D Model.
PCB Symbol
PCB Footprint

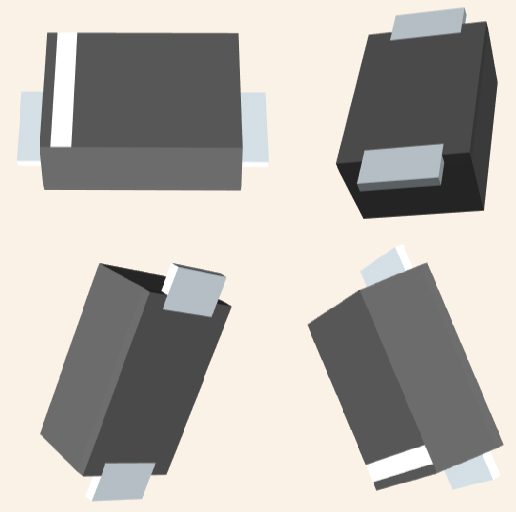

3D Model
The AL5809 is a constant current linear LED driver and it provides a cost-effective two pin solution. It has an excellent temperature stability of 20ppm/°C and the current accuracy ± 5% regulated over a wide voltage and temperature range. The AL5809 comes in various fixed output current versions removing the need for external current setting resistors creating a simple solution for the linear driving of LEDs. It supports both the high-side and low-side driving of LED chains. The AL5809 turns on when the voltage between IN and OUT swings from 2.5V up to 60V enabling it drive long LED chains. The floating ground, 60V Voltage rating between Input and Output pins designed to withstand the high peak voltage incurred in offline applications. The AL5809 is available in either thermally robust package PowerDI123 or SOD-123 package.
This article will introduce AL5809 systematically from its features, pinout to its specifications, applications, also including AL5809 datasheet and so much more.
● 2.5V to 60V Operating Voltage Between Two Terminals
● Robust Power Package Up to 1.2W for PowerDI®-123
● -40°C to +125°C Temperature Range
● ± 5% LED Current Tolerance Over-Temperature
● 15mA, 20mA, 25mA, 30mA, 40mA, 50mA, 60mA, 90mA, 100mA, 120mA, and 150mA Available in PowerDI123 Package
● 15mA, 20mA, 25mA, 30mA, 40mA and 50mA available in SOD123 Package, Other Current Options Available by Request
● Constant Current with Low Temperature Drift and High Power Supply Rejection Ratio
● Totally Lead-Free & Fully RoHS Compliant
● Halogen and Antimony Free. “Green” Device
Diodes Incorporated AL5809-20S1-7 technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated AL5809-20S1-7.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 19 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | SOD-123 | |
| Number of Pins | 2Pins | |
| Operating Temperature | -40°C~125°C TA | |
| Packaging | Tape & Reel (TR) | |
| Published | 2014 | |
| JESD-609 Code | e3 | |
| Part Status | Active |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 2Terminations | |
| ECCN Code | EAR99 | |
| Type | Linear | |
| Applications | Signage | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Supply Voltage | 3.5V | |
| Time@Peak Reflow Temperature-Max (s) | 30 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Number of Outputs | 1Output | |
| Max Output Current | 21mA | |
| Max Supply Voltage | 60V | |
| Min Input Voltage | 2.5V | |
| Max Input Voltage | 60V | |
| Output Current per Channel | 20mA | |
| Internal Switch(s) | Yes | |
| Dimming | PWM | |
| Number of Segments | 2Segments | |
| Multiplexed Display Capability | NO | |
| RoHS Status | ROHS3 Compliant |
The following is the Functional Block Diagram of AL5809.
Functional Block Diagram
The following diagrams show the AL5809 Typical Applications Circuit.
Low Side LED String
High Side LED String
● Offline LED Lamps
● LED Power Supplies
● White Goods
● LED Signs
● Instrumentation Illumination
The following is the Marking Information of AL5809.
Marking Information
The following diagram shows the AL5809 Suggested Pad Layout.
Suggested Pad Layout
Diodes Incorporated delivers high-quality semiconductor products to the world's leading companies in the consumer electronics, computing, communications, industrial, and automotive markets. They leverage their expanded product portfolio of discrete, analog, and mixed-signal products and leading-edge packaging technology to meet customers' needs. Their broad range of application-specific solutions and solutions-focused sales, coupled with worldwide operations of 25 sites, including engineering, testing, manufacturing, and customer service, enables us to be a premier provider for high-volume, high-growth markets.
Download datasheets and manufacturer documentation for AL5809-20S1-7
