IC REG CTRLR BUCK BST 38HTSSOP
TPS43337QDAPRQ1 is a fixed-voltage dual synchronous buck controller. This article will unlock its datasheet, pinout, application, circuit and more details about TPS43337QDAPRQ1.
An Overview of TPS43337QDAPRQ1[FAQ]
IC REG CTRLR BUCK BST 38HTSSOP TPS43337QDAPRQ1 is a fixed-voltage dual synchronous buck controller. This article will unlock its datasheet, pinout, application, circuit and more details about TPS43337QDAPRQ1.
62
Mar 28, 2022
Perry Jim
TPS43337QDAPRQ1
90713In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $9.04845 | $9.05 |
| 10+ | $8.53628 | $85.36 |
| 100+ | $8.05309 | $805.31 |
| 500+ | $7.59726 | $3798.63 |
| 1000+ | $7.16722 | $7167.22 |
Unit Price:$9.04845
Subtotal: $9.05
Quick Links

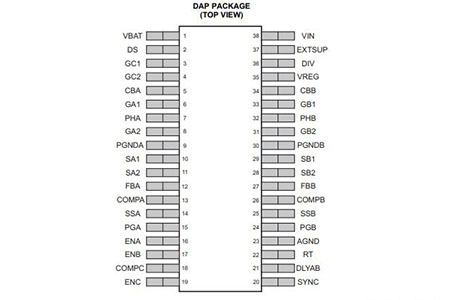

TPS43337QDAPRQ1 Pinout
TPS43337QDAPRQ1 Pinout
TPS43337QDAPRQ1 CAD Model

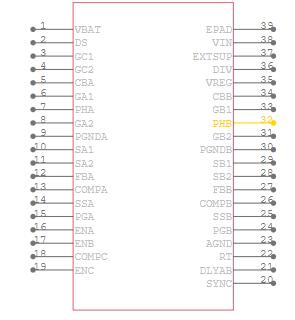

Symbol
TPS43337QDAPRQ1 Symbol

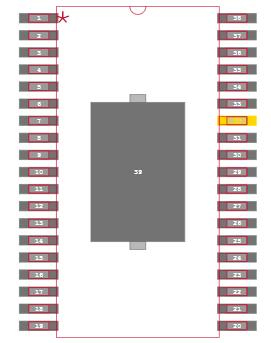

Footprint
TPS43337QDAPRQ1 Footprint

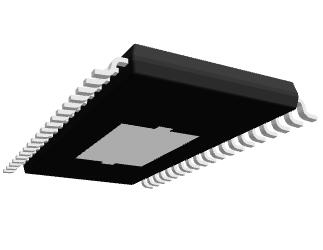

3D Model
TPS43337QDAPRQ1 3D Model
TPS43337QDAPRQ1 General Description
The TPS43337QDAPRQ1 includes two current-mode synchronous buck controllers and a voltage-mode boost controller. The device is ideally suited as a pre-regulator stage with low IQ requirements and for systems that must survive supply drops due to cranking events. The integrated boost controller allows the device to operate down to 2 V at the input without seeing a drop in the buck regulator output stages. At light loads, the buck controllers enable to operate automatically in low power mode, consuming just 34 μA of quiescent current.
The buck controllers have the independent soft-start capability and power-good indicators. Current foldback in the buck controllers and cycle-by-cycle a current limitation in the boost controller provides external MOSFET protection. The switching frequency is programable over 150 to 600 kHz or is synchronized to an external clock in the same range.
TPS43337QDAPRQ1 Feature
●Qualified for Automotive Applications
●AEC-Q100 Qualified With the Following
Results:
- Device Temperature Grade 1: -40°C to +125°C Ambient Operating Temperature
- Device HBM ESD Classification Level H2
- Device CDM ESD Classification Level C2
●Two Synchronous Buck Controllers
●Buck A: Fixed Output Voltage of 3.4 V
●Buck B: Fixed Output Voltage of 1.235 V
●One Pre-Boost Controller
●Input Range up to 40 V, (Transients up to 60 V), Operation Down to 2 V When Boost Is Enabled
●Low-Power Mode IQ: 34 μA (One Buck On), 43 μA (Two Bucks On)
●Low Shutdown Current Ish < 4 μA
●Boost Output Selectable: 7 V, 8.85 V, or 10 V
●Programmable Frequency and External Synchronization Range: 150 to 600 kHz
●Separate Enable Inputs (ENA, ENB, ENC)
●Selectable Forced Continuous Mode or Automatic Low-Power Mode at Light Loads
●Sense Resistor or Inductor DCR Sensing for Buck Controllers
●Out-of-Phase Switching Between Buck Channels

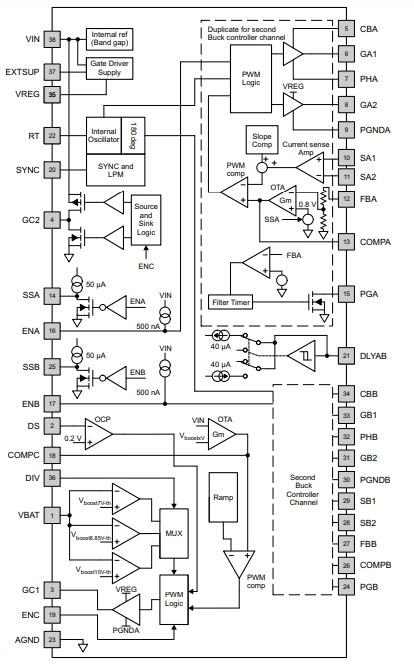

TPS43337QDAPRQ1 Funtional Block Diagram
The TPS43337QDAPRQ1Functional Block Diagram shown below
TPS43337QDAPRQ1 Functional Block Diagram
TPS43337QDAPRQ1 Application
●Automotive Start: Stop, Infotainment, Navigation Instrument Cluster Systems
●Industrial and Automotive Multi-Rail DC Power-Distribution Systems and Electronic Control Units

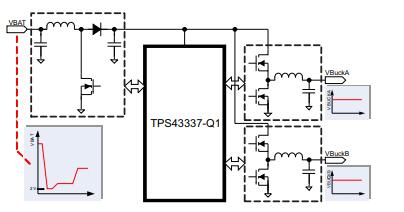

TPS43337QDAPRQ1 Typical Application Circuit
The following figures show the typical application circuits of TPS43337QDAPRQ1
TPS43337QDAPRQ1 Typical Application Circuit

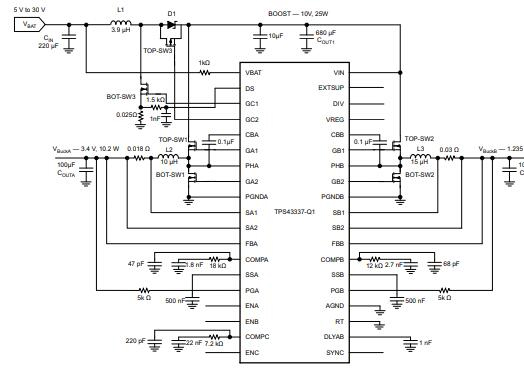

TPS43337QDAPRQ1 Typical Application Schematic

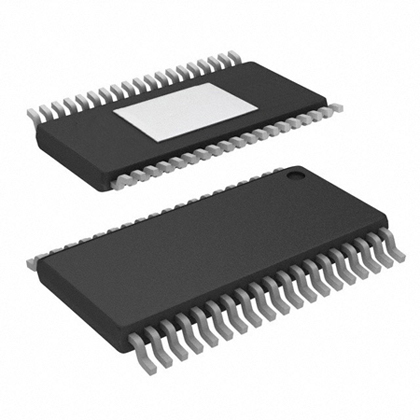

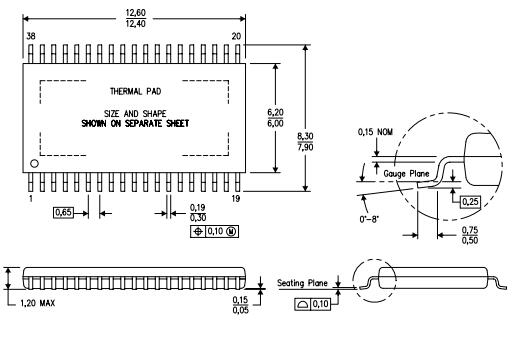

TPS43337QDAPRQ1 Package
TPS43337QDAPRQ1 Package
Specifications
TPS43337QDAPRQ1 Tech Specifications
TPS43337QDAPRQ1 Tech Specifications
Texas Instruments TPS43337QDAPRQ1 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TPS43337QDAPRQ1.
| Product Attribute | Attribute Value | |
|---|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 5 days ago) | |
| Factory Lead Time | 6 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 38-PowerTSSOP (0.240, 6.10mm Width) | |
| Number of Pins | 38Pins | |
| Operating Temperature | -40°C~125°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Series | Automotive, AEC-Q100 | |
| JESD-609 Code | e4 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 3 (168 Hours) | |
| Number of Terminations | 38Terminations | |
| ECCN Code | EAR99 | |
| Terminal Finish | Nickel/Palladium/Gold (Ni/Pd/Au) | |
| Terminal Position | DUAL |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Terminal Pitch | 0.65mm | |
| Base Part Number | TPS43337 | |
| Function | Step-Up, Step-Down | |
| Number of Outputs | 3Outputs | |
| Output Voltage | 3.447V | |
| Output Type | Transistor Driver | |
| Operating Supply Voltage | 40V | |
| Input Voltage-Nom | 13V | |
| Analog IC - Other Type | DUAL SWITCHING CONTROLLER | |
| Output Configuration | Positive | |
| Output Current | 1.5A | |
| Voltage - Supply (Vcc/Vdd) | 4V~40V | |
| Quiescent Current | 34μA | |
| Control Features | Enable, Frequency Control, Power Good, Soft Start, Tracking | |
| Input Voltage (Min) | 4V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Topology | Buck, Boost | |
| Control Mode | CURRENT/VOLTAGE-MODE | |
| Frequency - Switching | 150kHz~600kHz | |
| Control Technique | PULSE WIDTH MODULATION | |
| Synchronous Rectifier | Yes | |
| Switcher Configuration | BUCK-BOOST | |
| Max Frequency | 600kHz | |
| Max Duty Cycle | 98.75 % | |
| Duty Cycle (Max) | 90%, 98.75% | |
| Output Phases | 2 | |
| Height | 1.2mm | |
| Length | 12.5mm | |
| Width | 6.2mm | |
| Thickness | 1.15mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
Frequently Asked Questions
What is the TPS43337QDAPRQ1?
Voltage-mode boost controller.
What is the TPS43337QDAPRQ1 ideally suited for?
Pre-regulator stage.
How many kHz is the switching frequency in the TPS43337QDAPRQ1?
150 to 600 kHz.
What do the buck controllers have?
Soft-start capability and power-good indicators.
FAQ
What is the TPS43337QDAPRQ1?
Voltage-mode boost controller.
What is the TPS43337QDAPRQ1 ideally suited for?
Pre-regulator stage.
How many kHz is the switching frequency in the TPS43337QDAPRQ1?
150 to 600 kHz.
What do the buck controllers have?
Soft-start capability and power-good indicators.
