MOSFET N-CH 30V 5.7A SOT23
The AO3400A is the high cell density trenched N-VDS 30 V n-channel MOSFETs. This article is going to introduce pinout, specifications, features, manufacturer, and other details about AO3400A MOSFET.
AO3400A 30V N-Channel MOSFET, 5.7A SOT23-3L and AO3400A Equivalents
MOSFET N-CH 30V 5.7A SOT23 The AO3400A is the high cell density trenched N-VDS 30 V n-channel MOSFETs. This article is going to introduce pinout, specifications, features, manufacturer, and other details about AO3400A MOSFET.
321
Jan 24, 2022
Tracy Stella
AO3400A
300000In Stock
Min.: 1 Mult.: 1
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.1006 | $0.1 |
| 500+ | $0.07397 | $36.99 |
| 1000+ | $0.06164 | $61.64 |
| 2000+ | $0.05655 | $113.1 |
| 5000+ | $0.05285 | $264.25 |
| 10000+ | $0.04916 | $491.6 |
| 15000+ | $0.04755 | $713.25 |
| 50000+ | $0.04675 | $2337.5 |
Unit Price:$0.1006
Subtotal: $0.1
Quick Links
What is AO3400A?
The AO3400A is a trenched N-VDS 30 V ch MOSFET with a high cell density that delivers good RDS ON and efficiency for most small power switching RDS (ON), typ 27 m and load switch applications. With complete function reliability approval, the AO3400A meets the RoHS and Green Product requirements.

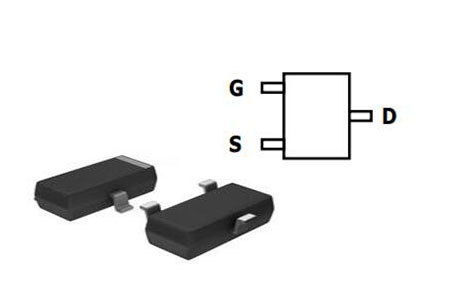

AO3400A Pinout
AO3400A CAD Model
AO3400A Symbol

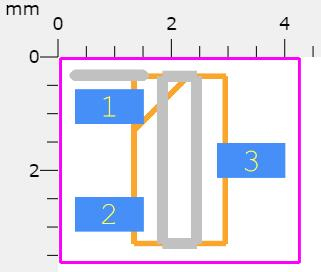

AO3400A Footprint

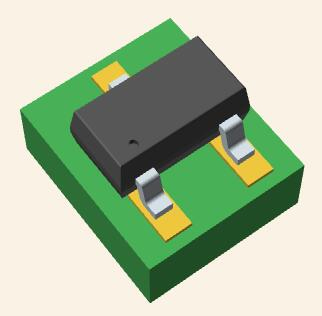

AO3400A 3D Model
Specifications
Alpha & Omega Semiconductor Inc. AO3400A technical specifications, attributes, parameters and parts with similar specifications to Alpha & Omega Semiconductor Inc. AO3400A.
AO3400A Tech Specifications
AO3400A Tech Specifications
Alpha & Omega Semiconductor Inc. AO3400A technical specifications, attributes, parameters and parts with similar specifications to Alpha & Omega Semiconductor Inc. AO3400A.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Number of Pins | 3Pins | |
| Transistor Element Material | SILICON | |
| Current - Continuous Drain (Id) @ 25℃ | 5.7A Ta | |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V 10V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 1.4W Ta | |
| Turn Off Delay Time | 25 ns | |
| Operating Temperature | -55°C~150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Published | 2011 | |
| Pbfree Code | yes | |
| Part Status | Not For New Designs |
| Product Attribute | Attribute Value | |
|---|---|---|
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Pin Count | 3 | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| Number of Channels | 1Channel | |
| Operating Mode | ENHANCEMENT MODE | |
| Power Dissipation | 1.4W | |
| Turn On Delay Time | 3 ns | |
| FET Type | N-Channel | |
| Transistor Application | SWITCHING | |
| Rds On (Max) @ Id, Vgs | 26.5m Ω @ 5.7A, 10V | |
| Vgs(th) (Max) @ Id | 1.5V @ 250μA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Input Capacitance (Ciss) (Max) @ Vds | 630pF @ 15V | |
| Gate Charge (Qg) (Max) @ Vgs | 7nC @ 4.5V | |
| Vgs (Max) | ±12V | |
| Continuous Drain Current (ID) | 5.7A | |
| Threshold Voltage | 650mV | |
| Gate to Source Voltage (Vgs) | 12V | |
| Drain-source On Resistance-Max | 0.0265Ohm | |
| Drain to Source Breakdown Voltage | 30V | |
| Max Junction Temperature (Tj) | 150°C | |
| Height | 1.25mm | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
AO3400A Features
-
Type of Transistor: MOSFET
-
Type of Control Channel: N -Channel
-
Maximum Power Dissipation (Pd): 1.4 W
-
Maximum Drain-Source Voltage |Vds|: 30 V
-
Maximum Gate-Source Voltage |Vgs|: 12 V
-
Maximum Gate-Threshold Voltage |Vgs(th)|: 1.45 V
-
Maximum Drain Current |Id|: 5.7 A
-
Maximum Junction Temperature (Tj): 150 °C
-
Rise Time (tr): 2.5 nS
-
Drain-Source Capacitance (Cd): 75 pF
-
Maximum Drain-Source On-State Resistance (Rds): 0.0265 Ohm
-
Package: SOT23-3
AO3400A Electronic Characteristics
-
VDS 30V
-
ID (at VGS =10V) 5.7A
-
RDS (ON) (at VGS =10V) < 26.5mΩ
-
RDS (ON) (at VGS = 4.5V) < 32mΩ
-
RDS (ON) (at VGS = 2.5V) < 48mΩ
| Attribute | Description |
| RoHS Status | ROHS3 Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| REACH Status | REACH Unaffected |
| ECCN | EAR99 |
| HTSUS | 8541.29.0095 |
AO3400A Equivalents
MTP9575J3 , MTP9575L3 , MTP9575Q8 , MTP9620Q8 , MTP9620V8 , MTS3572G6 , AO3160 , AO3162 , IRFP260N , AO3402 , AO3403 , AO3404 , AO3404A , AO3406 , AO3407A , AO3409 , AO3413

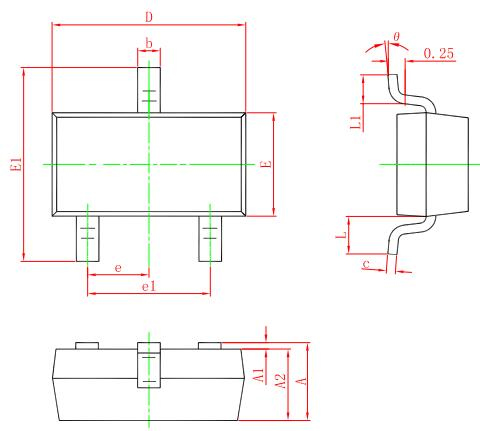

AO3400A Package Outline
AO3400A Manufacturer
Alpha and Omega Semiconductor, Inc., or AOS, is a designer, developer, and global supplier of a broad range of power semiconductors, including a wide portfolio of Power MOSFET and Power IC products. AOS seeks to differentiate itself by integrating its expertise in device physics, process technology, design, and advanced packaging to optimize product performance and cost, and its product portfolio is designed to meet the ever-increasing power efficiency requirements in high volume applications, including portable computers, flat-panel TVs, battery packs, portable media players and power supplies.
