MOSFET P-CHANNEL 30V 4A SOT23-3
The AO3401 is a P-Channel Enhancement Mode Field Effect Transistor. This article mainly introduces circuit, pinout, datasheet and other detailed information about Alpha & Omega Semiconductor Inc. AO3401.
AO3401 Transistor: Circuit, Pinout, and Datasheet
MOSFET P-CHANNEL 30V 4A SOT23-3 The AO3401 is a P-Channel Enhancement Mode Field Effect Transistor. This article mainly introduces circuit, pinout, datasheet and other detailed information about Alpha & Omega Semiconductor Inc. AO3401.
479
Sep 25, 2021
Sandy Adolph
AO3401AL
19000In Stock
Min.: 1 Mult.: 1
Quick Links
AO3401 Description
The AO3401 is a P-Channel Enhancement Mode Field Effect Transistor, using advanced trench technology to provide excellent RDS(ON), low gate charge and operation gate voltages as low as 2.5V. This device is suitable for use as a load switch or other general applications such as PWM. AO3401 is Halogen Free, RoHS Compliant.
AO3401 Pinout
AO3401 CAD Model
Symbol

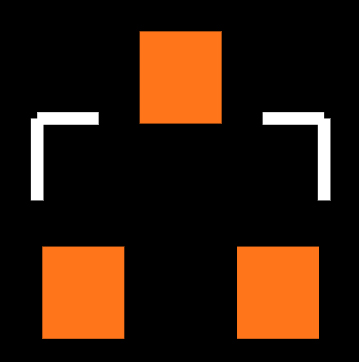

Footprint
3D Model
AO3401 Features
● VDS (V) = -30V
● ID = -4.3A (VGS = -10V)
● RDS(ON) < 46mΩ (VGS = -10V)
● RDS(ON) < 55mΩ (VGS = -4.5V)
● RDS(ON) < 80mΩ (VGS = -2.5V)
● Advanced Trench Process Technology
● High Density Cell Design For Ultra Low On-Resistance
Specifications
Alpha & Omega Semiconductor Inc. AO3401AL technical specifications, attributes, parameters and parts with similar specifications to Alpha & Omega Semiconductor Inc. AO3401AL.
AO3401AL Tech Specifications
AO3401AL Tech Specifications
Alpha & Omega Semiconductor Inc. AO3401AL technical specifications, attributes, parameters and parts with similar specifications to Alpha & Omega Semiconductor Inc. AO3401AL.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Current - Continuous Drain (Id) @ 25℃ | 4A Ta | |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V 10V | |
| Power Dissipation (Max) | 1.4W Ta | |
| Operating Temperature | -55°C~150°C TJ |
| Product Attribute | Attribute Value | |
|---|---|---|
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Reach Compliance Code | compliant | |
| FET Type | P-Channel | |
| Rds On (Max) @ Id, Vgs | 50m Ω @ 4A, 10V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Vgs(th) (Max) @ Id | 1.3V @ 250μA | |
| Input Capacitance (Ciss) (Max) @ Vds | 645pF @ 15V | |
| Gate Charge (Qg) (Max) @ Vgs | 14nC @ 10V | |
| Drain to Source Voltage (Vdss) | 30V | |
| Vgs (Max) | ±12V |
AO3401 Functional Block Diagram
Functional Block Diagram
AO3401 Power Supply Circuit
AO3401 Controls 3.3V 5V Power Supply Circuit
AO3401 Applications
● Use As A Load Switch
● Use In PWM Applications
AO3401 Package
AO3401 Manufacturer
Alpha and Omega Semiconductor, Inc. or AO Sp. is the creator, developer and global supplier of a full range of power semiconductors, including a broad portfolio of power MOSFETs and power ICs. In order to optimize product performance and cost, AOS aims to achieve differentiation by integrating its expertise in device physics, process technology, design and advanced packaging. Its product portfolio is designed to meet the needs of portable computers, flat-screen TVs, and battery packs The increasing power efficiency requirements of mass applications include power media players and power supplies.
Datasheet PDF
Download datasheets and manufacturer documentation for Alpha & Omega Semiconductor Inc. AO3401AL.
AO3401AL Documents
AO3401AL Documents
Download datasheets and manufacturer documentation for AO3401AL
PCN Assembly/Origin
Mult Devices Assembly 24/Apr/2018
Datasheets
AO3401AL
Frequently Asked Questions
1.What is the difference between AO3407 and AO3401?
The AO3401 Vgs range is ±12V. The range of AO3407 Vgs is ±20V. The other properties are basically the same, with slight differences.
2.What does AO mean in SMD field effect tube AO3401?
AO is the abbreviation of AOS, an American brand. It is a field-effect tube, also called a MOS tube. It is used for enhancement and magnification. Because AOS is difficult to call, it was later referred to as AO.
3.What does 3 and 4 mean in AO3401?
AO3401 is a P-channel enhancement type field effect transistor, 3 means: drain-to-source voltage (Vds) is -30V, 4 drains current (Id) is -4.2A.
FAQ
1.What is the difference between AO3407 and AO3401?
The AO3401 Vgs range is ±12V. The range of AO3407 Vgs is ±20V. The other properties are basically the same, with slight differences.
2.What does AO mean in SMD field effect tube AO3401?
AO is the abbreviation of AOS, an American brand. It is a field-effect tube, also called a MOS tube. It is used for enhancement and magnification. Because AOS is difficult to call, it was later referred to as AO.
3.What does 3 and 4 mean in AO3401?
AO3401 is a P-channel enhancement type field effect transistor, 3 means: drain-to-source voltage (Vds) is -30V, 4 drains current (Id) is -4.2A.
