N&P Channel MOSFET, How to use N channel MOSFET as a P channel MOSFET
Transistors - FETs, MOSFETs - Single MOSFET P-CH 30V 12A 8SOIC
AO4407A is a kind of 30V P-Channel MOSFET packaged in SOIC-8 Type. This article is going to explain pinout, equivalents, features, applications, and other details about AO4407A MOSFET.
AO4407A
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.28216 | $0.28 |
| 10+ | $0.26619 | $2.66 |
| 100+ | $0.25112 | $25.11 |
| 500+ | $0.2369 | $118.45 |
| 1000+ | $0.2235 | $223.5 |
AO4407A is a kind of 30V P-Channel MOSFET packaged in SOIC-8 Type. The AO4407A uses advanced trench technology to provide excellent RDS (ON), and ultra-low low gate charge with a 25V gate rating. This device is suitable for use as a load switch or in PWM applications.
The following is the AO4407A pinout diagram.
AO4407A Pinout
AO4407A Symbol
AO4407A Footprint
AO4407A 3D Model
Alpha & Omega Semiconductor Inc. AO4407A technical specifications, attributes, parameters and parts with similar specifications to Alpha & Omega Semiconductor Inc. AO4407A.
Alpha & Omega Semiconductor Inc. AO4407A technical specifications, attributes, parameters and parts with similar specifications to Alpha & Omega Semiconductor Inc. AO4407A.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Transistor Element Material | SILICON | |
| Current - Continuous Drain (Id) @ 25℃ | 12A Ta | |
| Drive Voltage (Max Rds On, Min Rds On) | 6V 20V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 3.1W Ta | |
| Operating Temperature | -55°C~150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Published | 2013 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Not For New Designs | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| ECCN Code | EAR99 | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Pin Count | 8 | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| Operating Mode | ENHANCEMENT MODE | |
| Power Dissipation | 3.1W | |
| FET Type | P-Channel | |
| Transistor Application | SWITCHING |
| Product Attribute | Attribute Value | |
|---|---|---|
| Rds On (Max) @ Id, Vgs | 11m Ω @ 12A, 20V | |
| Vgs(th) (Max) @ Id | 3V @ 250μA | |
| Input Capacitance (Ciss) (Max) @ Vds | 2600pF @ 15V | |
| Gate Charge (Qg) (Max) @ Vgs | 39nC @ 10V | |
| Drain to Source Voltage (Vdss) | 30V | |
| Vgs (Max) | ±25V | |
| Continuous Drain Current (ID) | 12A | |
| Gate to Source Voltage (Vgs) | 25V | |
| DS Breakdown Voltage-Min | 30V | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
The following are features of AO4407A MOSFET.
Type of Transistor: MOSFET
Type of Control Channel: P-Channel
Maximum Power Dissipation (Pd): 3.1 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 25 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 3 V
Maximum Drain Current |Id|: 12 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 9.4 nS
Drain-Source Capacitance (Cd): 370 pF
Maximum Drain-Source On-State Resistance (Rds): 0.013 Ohm
Package: SO-8
AO4314 , AO4354 , AO4402 , AO4403 , AO4404B , AO4405 , AO4406A , AO4407 , IRF530 , AO4409 , AO4410 , AO4411 , AO4413 , AO4415 , AO4419 , AO4420 , AO4421
AO4407A is suitable for use as a load switch or in PWM applications and the following are product details of AO4407A P-Channel MOSFET.
VDS = -30V
ID = -12A (VGS = -20V)
RDS (ON) < 11mΩ (VGS = -20V)
RDS (ON) < 13mΩ (VGS = -10V)
RDS (ON) < 17mΩ (VGS = -6V)
100% UIS Tested
100% Rg Tested

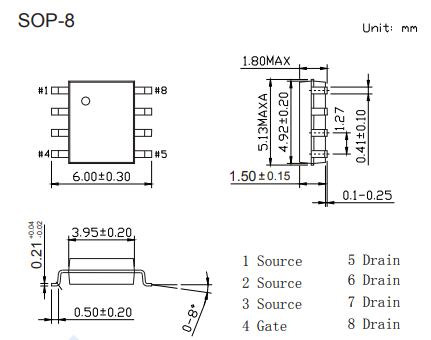

AO4407A Dimensions
Alpha and Omega Semiconductor, Inc., or AOS, is a designer, developer, and global supplier of a broad range of power semiconductors, including a wide portfolio of Power MOSFET and Power IC products. AOS seeks to differentiate itself by integrating its expertise in device physics, process technology, design, and advanced packaging to optimize product performance and cost, and its product portfolio is designed to meet the ever-increasing power efficiency requirements in high volume applications, including portable computers, flat-panel TVs, battery packs, portable media players and power supplies.
