Transistors - FETs, MOSFETs - Single MOSFET N-CH 30V 10A 8-SOIC

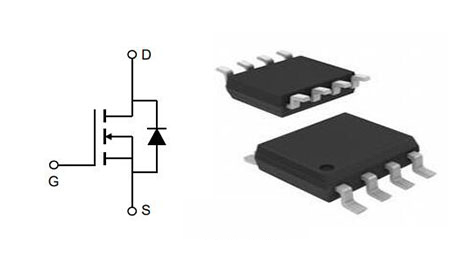

AO4466 is a 30V N-Channel MOSFET packaged in 8-Pin SOIC. This article is going to cover AO4466 datasheet pdf, equivalents, pinout, features, and other details about AO4466 MOSFET.
AO4466
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.15171 | $0.15 |
| 10+ | $0.14313 | $1.43 |
| 100+ | $0.13502 | $13.5 |
| 500+ | $0.12738 | $63.69 |
| 1000+ | $0.12017 | $120.17 |
The AO4466 employs innovative trench technology for high RDS (ON) and low gate charge. This device can be used as a load switch or as part of a PWM system. The source leads are separated to enable a Kelvin connection to the source, which can be utilized to bypass the inductance of the source.

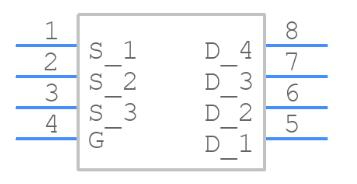

AO4466 Symbol

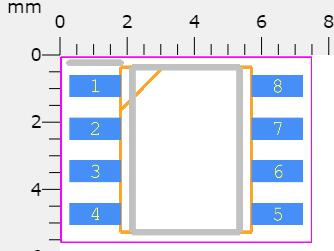

AO4466 Footprint

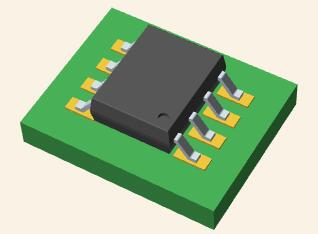

AO4466 3D Model
Alpha & Omega Semiconductor Inc. AO4466 technical specifications, attributes, parameters and parts with similar specifications to Alpha & Omega Semiconductor Inc. AO4466.
Alpha & Omega Semiconductor Inc. AO4466 technical specifications, attributes, parameters and parts with similar specifications to Alpha & Omega Semiconductor Inc. AO4466.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |

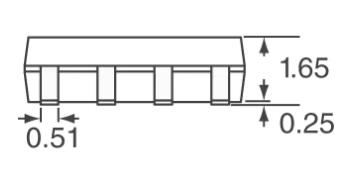

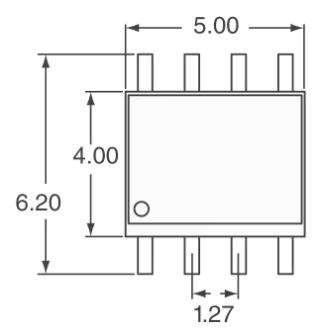

| Package / Case | 8-SOIC (0.154, 3.90mm Width) | |
| Number of Pins | 8Pins | |
| Transistor Element Material | SILICON | |
| Current - Continuous Drain (Id) @ 25℃ | 10A Ta | |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V 10V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 3.1W Ta | |
| Operating Temperature | -55°C~150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Published | 2013 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Not For New Designs | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 8Terminations | |
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Pin Count | 8 | |
| Qualification Status | Not Qualified | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| Operating Mode | ENHANCEMENT MODE | |
| Power Dissipation | 3.1W | |
| FET Type | N-Channel | |
| Transistor Application | SWITCHING |
| Product Attribute | Attribute Value | |
|---|---|---|
| Rds On (Max) @ Id, Vgs | 23m Ω @ 10A, 10V | |
| Vgs(th) (Max) @ Id | 2.6V @ 250μA | |
| Input Capacitance (Ciss) (Max) @ Vds | 448pF @ 15V | |
| Gate Charge (Qg) (Max) @ Vgs | 8.6nC @ 10V | |
| Drain to Source Voltage (Vdss) | 30V | |
| Vgs (Max) | ±20V | |
| Continuous Drain Current (ID) | 10A | |
| Gate to Source Voltage (Vgs) | 20V | |
| Drain-source On Resistance-Max | 0.023Ohm | |
| Pulsed Drain Current-Max (IDM) | 50A | |
| DS Breakdown Voltage-Min | 30V | |
| RoHS Status | ROHS3 Compliant |
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 3.1 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.6 V
Maximum Drain Current |Id|: 10 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 2.8 nS
Drain-Source Capacitance (Cd): 67 pF
Maximum Drain-Source On-State Resistance (Rds): 0.023 Ohm
Package: SO-8
VDS (V) = 30V
ID = 10A (VGS = 10V)
RDS(ON) < 23mΩ (VGS = 10V)
RDS(ON) < 35mΩ (VGS = 4.5V)
100% UIS Tested
100% Rg Tested
Alpha and Omega Semiconductor, Inc., or AOS, is a designer, developer, and global supplier of a broad range of power semiconductors, including a wide portfolio of Power MOSFET and Power IC products. AOS seeks to differentiate itself by integrating its expertise in device physics, process technology, design, and advanced packaging to optimize product performance and cost, and its product portfolio is designed to meet the ever-increasing power efficiency requirements in high volume applications, including portable computers, flat-panel TVs, battery packs, portable media players and power supplies.
Download datasheets and manufacturer documentation for AO4466
