AO6800:30V Dual N-Channel MOSFET

The AO6800 employs advanced trench technology to achieve high RDS(ON), low gate charge, and operation at gate voltages as low as 2.5V. This device can function as a load switch or in PWM applications.

•

• Type of Control Channel: N -Channel

• Maximum Power Dissipation (Pd): 1.15 W

• Maximum Drain-Source Voltage |Vds|: 30 V

• Maximum Gate-Source Voltage |Vgs|: 12 V

• Maximum Gate-Threshold Voltage |Vgs(th)|: 1.5 V

• Maximum Drain Current |Id|: 3.4 A

• Maximum Junction Temperature (Tj): 150 °C

• Rise Time (tr): 1.5 nS

• Drain-Source Capacitance (Cd): 35 pF

• Maximum Drain-Source On-State Resistance (Rds): 0.06 Ohm

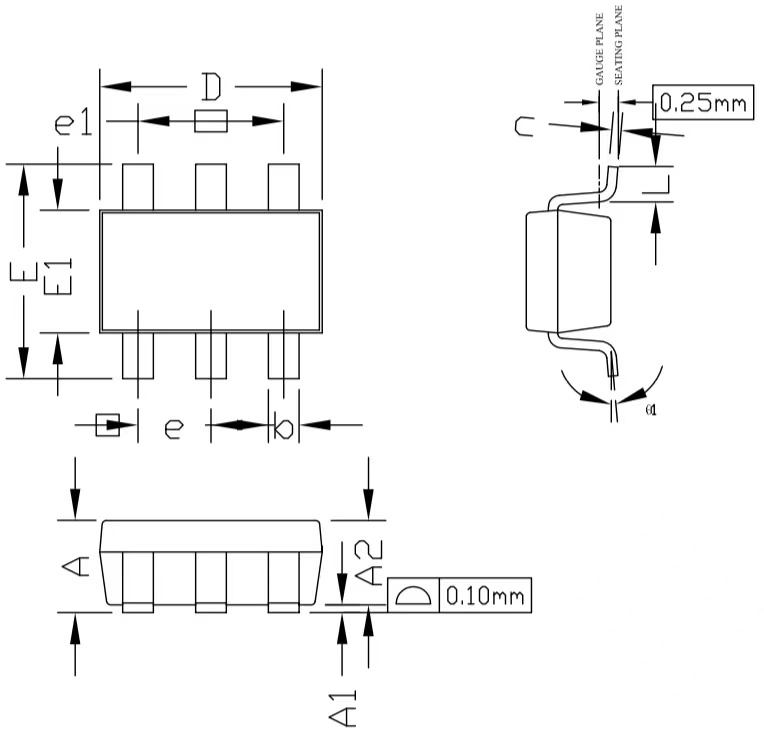

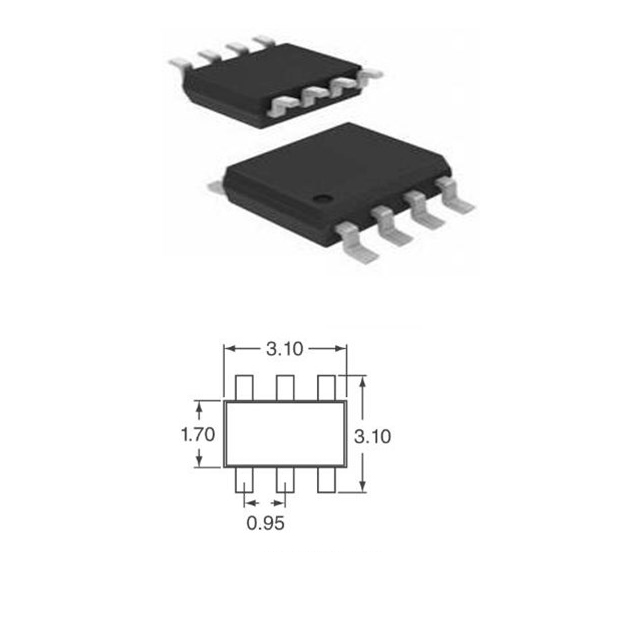

• Package: TSOP-6



1. Communications equipment: Broadband fixed-line access/Datacom module/Wired networking/Wireless infrastructure

2. Industrial: Aerospace & defense/Appliances/Building automation/Electronic point of sale (EPOS)/Factory automation & control/Grid infrastructure/Industrial transport (non-car & non-light truck)/Lighting/Medical/Motor drives/Power delivery/Pro audio, video & signage/Test & measurement

3. Personal electronics:Connected peripherals & printers/Data storage/Gaming/Home theater & entertainment/Mobile phones/PC & notebooks/Portable electronics/Tablets/TV/Wearable (non-medical)
