Transistors - FETs, MOSFETs - Single MOSFET N-CH 30V 5X6DFN

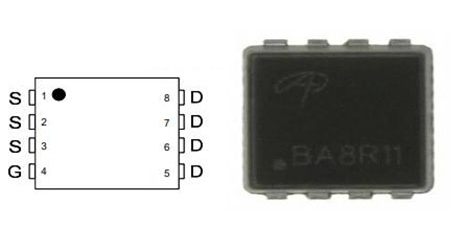

AON6414A is a 30V N-Channel MOSFET. This article is going to introduce specifications, pinout, equivalents, and other details about AON6414A MOSFET. Welcome your RFQ in Utmel!
AON6414A
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.73364 | $0.73 |
| 10+ | $0.69212 | $6.92 |
| 100+ | $0.65294 | $65.29 |
| 500+ | $0.61598 | $307.99 |
| 1000+ | $0.58111 | $581.11 |
AON6414A is a 30V N-Channel MOSFET. The AON6414A uses advanced trench technology to provide excellent RDS (ON), low gate charge. This device is suitable for use as a high side switch in SMPS and general-purpose applications.

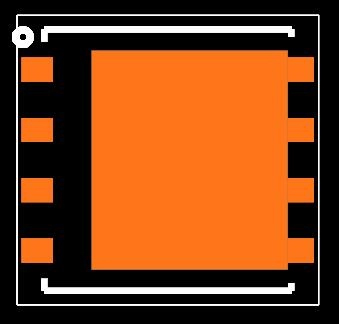

AON6414A Footprint
AON6414A 3D Model
Alpha & Omega Semiconductor Inc. AON6414A technical specifications, attributes, parameters and parts with similar specifications to Alpha & Omega Semiconductor Inc. AON6414A.
Alpha & Omega Semiconductor Inc. AON6414A technical specifications, attributes, parameters and parts with similar specifications to Alpha & Omega Semiconductor Inc. AON6414A.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 18 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | 8-PowerSMD, Flat Leads | |
| Number of Pins | 8Pins | |
| Transistor Element Material | SILICON | |
| Current - Continuous Drain (Id) @ 25℃ | 13A Ta 30A Tc | |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V 10V | |
| Number of Elements | 1 Element | |
| Power Dissipation (Max) | 2.3W Ta 31W Tc | |
| Operating Temperature | -55°C~150°C TJ | |
| Packaging | Tape & Reel (TR) | |
| Published | 2010 |
| Product Attribute | Attribute Value | |
|---|---|---|
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 5Terminations | |
| ECCN Code | EAR99 | |
| Terminal Position | DUAL | |
| Pin Count | 8 | |
| JESD-30 Code | R-PDSO-F5 | |
| Configuration | SINGLE WITH BUILT-IN DIODE | |
| Operating Mode | ENHANCEMENT MODE | |
| Power Dissipation | 31W | |
| Case Connection | DRAIN | |
| FET Type | N-Channel | |
| Transistor Application | SWITCHING |
| Product Attribute | Attribute Value | |
|---|---|---|
| Rds On (Max) @ Id, Vgs | 8m Ω @ 20A, 10V | |
| Vgs(th) (Max) @ Id | 2.5V @ 250μA | |
| Input Capacitance (Ciss) (Max) @ Vds | 1380pF @ 15V | |
| Gate Charge (Qg) (Max) @ Vgs | 24nC @ 10V | |
| Drain to Source Voltage (Vdss) | 30V | |
| Vgs (Max) | ±20V | |
| Continuous Drain Current (ID) | 50A | |
| Gate to Source Voltage (Vgs) | 20V | |
| DS Breakdown Voltage-Min | 30V | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant |
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 31 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
Maximum Drain Current |Id|: 50 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 2 nS
Drain-Source Capacitance (Cd): 180 pF
Maximum Drain-Source On-State Resistance (Rds): 0.008 Ohm
Package: DFN5X6
VDS 30V
ID (at VGS=10V) 50A
RDS (ON) (at VGS=10V) < 8mΩ
RDS (ON) (at VGS=4.5V) < 10.5mΩ
AON6400 , AON6403 , AON6404 , AON6404A , AON6405 , AON6407 , AON6411 , AON6413 , 75339P , AON6416 , AON6424 , AON6426 , AON6428 , AON6435 , AON6440 , AON6442 , AON6444
Alpha and Omega Semiconductor, Inc., or AOS, is a designer, developer, and global supplier of a broad range of power semiconductors, including a wide portfolio of Power MOSFET and Power IC products. AOS seeks to differentiate itself by integrating its expertise in device physics, process technology, design, and advanced packaging to optimize product performance and cost, and its product portfolio is designed to meet the ever-increasing power efficiency requirements in high volume applications, including portable computers, flat-panel TVs, battery packs, portable media players and power supplies.
Download datasheets and manufacturer documentation for Alpha & Omega Semiconductor Inc. AON6414A.
Download datasheets and manufacturer documentation for AON6414A
