MOSFET N-CH 30V 9.5A 8DFN
The AON741 is a 30V N-Channel MOSFET. This article is going to explain guidance details about AON741 MOSFET. Furthermore, there is a huge range of semiconductors, capacitors, resistors, and ICs in stock. Welcome your RFQ!
AON7410L

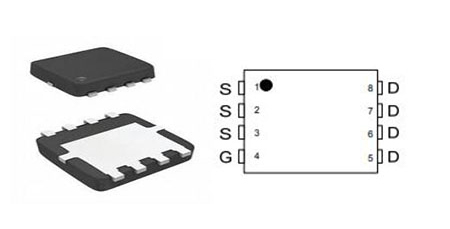

The AON7410 is a 30V N-Channel MOSFET. The AON7410 uses advanced trench technology and design to provide excellent RDS (ON) with a low gate charge. This device is suitable for use in DC-DC converters and Load Switch applications.

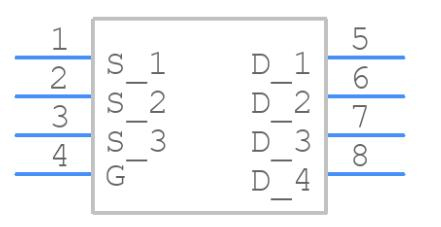

AON7410 Symbol

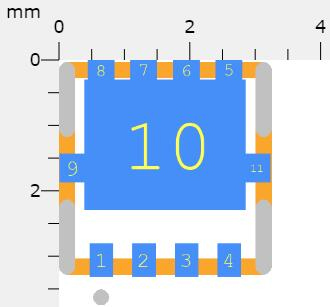

AON7410 Footpirnt
Alpha & Omega Semiconductor Inc. AON7410 technical specifications, attributes, parameters and parts with similar specifications to Alpha & Omega Semiconductor Inc. AON7410.
Alpha & Omega Semiconductor Inc. AON7410L technical specifications, attributes, parameters and parts with similar specifications to Alpha & Omega Semiconductor Inc. AON7410L.
| Product Attribute | Attribute Value | |
|---|---|---|
| Mounting Type | Surface Mount | |
| Package / Case | 8-PowerVDFN | |
| Current - Continuous Drain (Id) @ 25℃ | 8A Ta 20A Tc | |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V 10V | |
| Power Dissipation (Max) | 1.7W Ta 20W Tc | |
| Operating Temperature | -55°C~150°C TJ |
| Product Attribute | Attribute Value | |
|---|---|---|
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| FET Type | N-Channel | |
| Rds On (Max) @ Id, Vgs | 20m Ω @ 8A, 10V | |
| Vgs(th) (Max) @ Id | 2.5V @ 250μA |
| Product Attribute | Attribute Value | |
|---|---|---|
| Input Capacitance (Ciss) (Max) @ Vds | 660pF @ 15V | |
| Gate Charge (Qg) (Max) @ Vgs | 12nC @ 10V | |
| Drain to Source Voltage (Vdss) | 30V | |
| Vgs (Max) | ±20V | |
| RoHS Status | Non-RoHS Compliant |
Type of Transistor: MOSFET
Type of Control Channel: N -Channel
Maximum Power Dissipation (Pd): 20 W
Maximum Drain-Source Voltage |Vds|: 30 V
Maximum Gate-Source Voltage |Vgs|: 20 V
Maximum Gate-Threshold Voltage |Vgs(th)|: 2.5 V
Maximum Drain Current |Id|: 24 A
Maximum Junction Temperature (Tj): 150 °C
Rise Time (tr): 3.2 nS
Drain-Source Capacitance (Cd): 110 pF
Maximum Drain-Source On-State Resistance (Rds): 0.02 Ohm
Package: DFN3X3EP
AON7402 , AON7403 , AON7404 , AON7405 , AON7406 , AON7407 , AON7408 , AON7409 , IRFZ44V , AON7412 , AON7414 , AON7416 , AON7418 , AON7421 , AON7422E , AON7423 , AON7424
Alpha and Omega Semiconductor, Inc., or AOS, is a designer, developer, and global supplier of a broad range of power semiconductors, including a wide portfolio of Power MOSFET and Power IC products. AOS seeks to differentiate itself by integrating its expertise in device physics, process technology, design, and advanced packaging to optimize product performance and cost, and its product portfolio is designed to meet the ever-increasing power efficiency requirements in high volume applications, including portable computers, flat-panel TVs, battery packs, portable media players and power supplies.
Download datasheets and manufacturer documentation for AON7410L
