PMIC - Voltage Regulators - DC DC Switching Regulators SWITCHING REGULATOR SOT-23-6 -40°C~85°C TA 450kHz 0.95mm EZBuck™ IC REG BUCK ADJ 1.2A SOT23-6
The AOZ1282CI is a 1.2A buck regulator with great efficiency and ease of use that may be adjusted for a range of applications. This article is going to cover details about the AOZ1282CI regulator.
AOZ1282CI
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.76008 | $0.76 |
| 10+ | $0.71706 | $7.17 |
| 100+ | $0.67647 | $67.65 |
| 500+ | $0.63818 | $319.09 |
| 1000+ | $0.60205 | $602.05 |
The AOZ1282CI is a 1.2A buck regulator with great efficiency and ease of use that may be adjusted for a range of applications. The AOZ1282CI has a 4.5V to 36V input voltage range and a continuous output current of up to 1.2A. The output voltage can be adjusted to as low as 0.8V. The 450 kHz PWM operation's fixed switching frequency decreases inductor size.

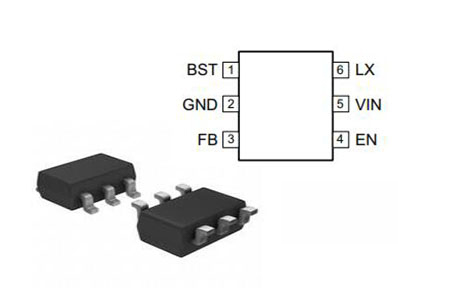

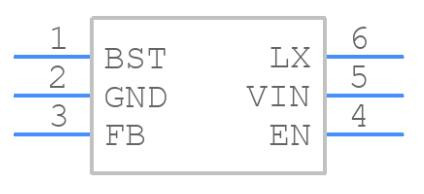

AOZ1282CI Symbol

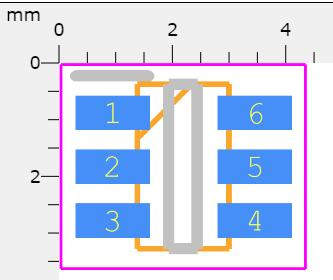

AOZ1282CI Footprint
AOZ1282CI 3D Model
Alpha & Omega Semiconductor Inc. AOZ1282CI technical specifications, attributes, parameters and parts with similar specifications to Alpha & Omega Semiconductor Inc. AOZ1282CI.
Alpha & Omega Semiconductor Inc. AOZ1282CI technical specifications, attributes, parameters and parts with similar specifications to Alpha & Omega Semiconductor Inc. AOZ1282CI.

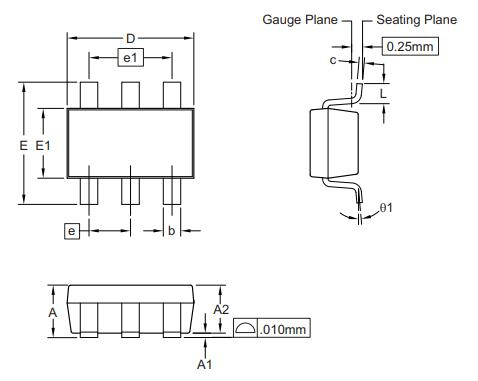

| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 18 Weeks | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | SOT-23-6 | |
| Number of Pins | 6Pins | |
| Operating Temperature | -40°C~85°C TA | |
| Packaging | Tape & Reel (TR) | |
| Series | EZBuck™ | |
| Published | 2011 | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 6Terminations | |
| ECCN Code | EAR99 | |
| Terminal Position | DUAL |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Form | GULL WING | |
| Terminal Pitch | 0.95mm | |
| Function | Step-Down | |
| Number of Outputs | 1Output | |
| Output Voltage | 36V | |
| Output Type | Adjustable | |
| Input Voltage-Nom | 12V | |
| Max Supply Voltage | 36V | |
| Min Supply Voltage | 4.5V | |
| Analog IC - Other Type | SWITCHING REGULATOR | |
| Nominal Supply Current | 1mA | |
| Output Configuration | Positive | |
| Max Output Voltage | 36V | |
| Voltage - Output (Min/Fixed) | 0.8V |
| Product Attribute | Attribute Value | |
|---|---|---|
| Topology | Buck | |
| Control Mode | CURRENT-MODE | |
| Frequency - Switching | 450kHz | |
| Control Technique | PULSE WIDTH MODULATION | |
| Synchronous Rectifier | No | |
| Min Output Voltage | 800mV | |
| Max Duty Cycle | 87 % | |
| Max Junction Temperature (Tj) | 150°C | |
| Ambient Temperature Range High | 85°C | |
| Height | 1.25mm | |
| Length | 2.9mm | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |
4.5V to 36V operating input voltage range
420mΩ internal NMOS
Up to 95% efficiency
Internal compensation
1.2A continuous output current
Fixed 450 kHz PWM operation
Internal soft-start
Output voltage adjustable down to 0.8V
Cycle-by-cycle current limit
Short-circuit protection
Thermal shutdown
Small size SOT23 -6L

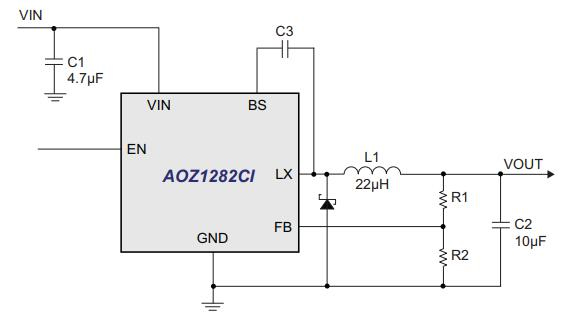

Point of load DC/DC conversion
Set-top boxes and cable modems
DVD drives and HDDs
LCD Monitors & TVs
Telecom/Networking/Datacom equipment

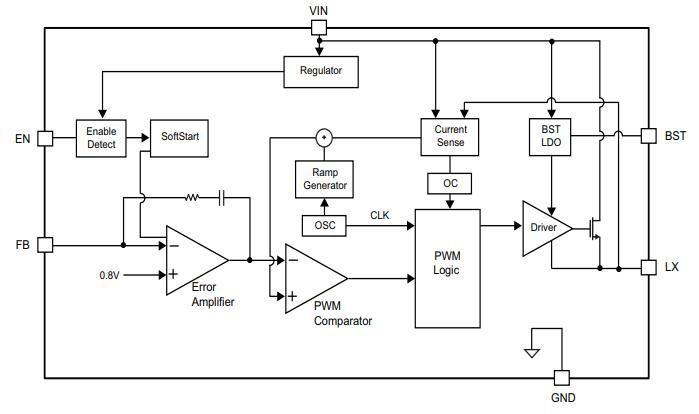

The AOZ1282CI works from a4. 5V to 36V input voltage range and provides up to600mA of continuous output current. The output voltage is adjustable down to 0.8V. The fixed switching frequency of 1MHz PWM operation reduces inductor size.
Alpha and Omega Semiconductor, Inc., or AOS, is a designer, developer, and global supplier of a broad range of power semiconductors, including a wide portfolio of Power MOSFET and Power IC products. AOS seeks to differentiate itself by integrating its expertise in device physics, process technology, design, and advanced packaging to optimize product performance and cost, and its product portfolio is designed to meet the ever-increasing power efficiency requirements in high volume applications, including portable computers, flat-panel TVs, battery packs, portable media players and power supplies.
Hot sale parts from AOS are as follows: ao4468，ao3407a，ao3415，ao4466，ao4407a, etc.
Download datasheets and manufacturer documentation for AOZ1282CI
