Basic Linear Regulator Operation
IC REG LINEAR 1.8V 150MA SOT23-3
The AP7313 is a 150mA, fixed output voltage, low dropout linear regulator. The device included pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
AP7313-18SAG-7
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.22782 | $0.23 |
| 10+ | $0.21492 | $2.15 |
| 100+ | $0.20276 | $20.28 |
| 500+ | $0.19128 | $95.64 |
| 1000+ | $0.18045 | $180.45 |

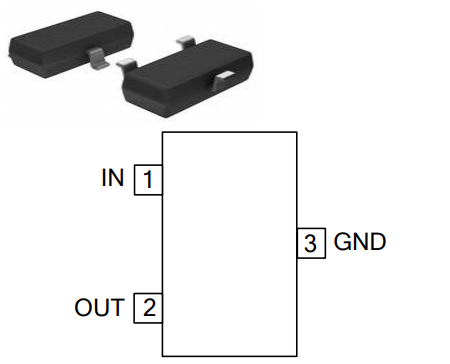

The following figure is the diagram of AP7313 Pinout.
Pinout
The followings are AP7313 Symbol, Footprint, and 3D Model.

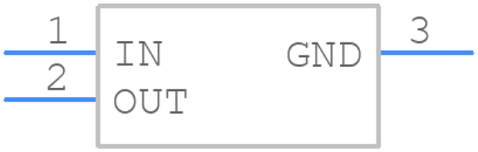

PCB Symbol

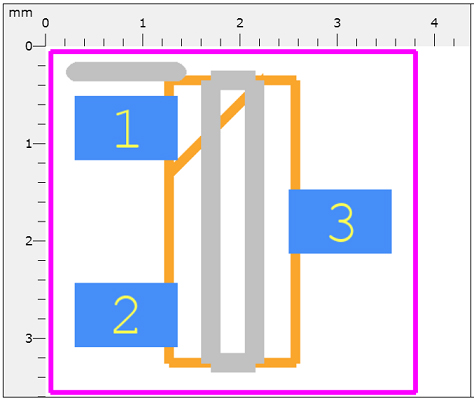

PCB Footprint

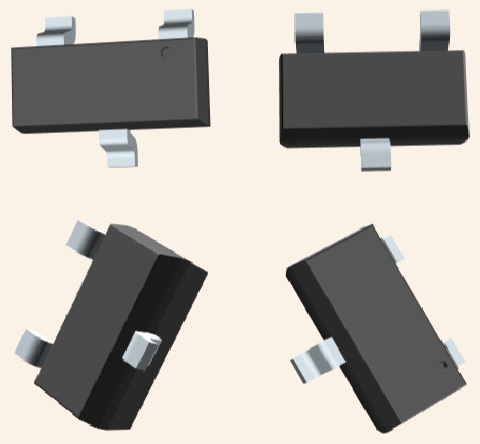

3D Model
The AP7313 is a 150mA, fixed output voltage, low dropout linear regulator. The device included pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry. The characteristics of low dropout voltage and low quiescent current make it suitable for low power applications, for example, battery powered devices. The typical quiescent current is approximately 65μA. Built-in current-limit and thermal-shutdown functions prevent IC from damage in fault conditions. The AP7313 is available in SOT23 package with different pin-outs.
This article will introduce AP7313 systematically from its features, pinout to its specifications, applications, also including AP7313 datasheet and so much more.
● 150mA Low Dropout Regulator in 3-pin package
● Very low IQ over full load: 65µA
● Wide input voltage range: 2V to 6V
● Fixed output options: 1.0V to 3.3V
● PSRR: 65dB at 100Hz
● Fast start-up time: 80µs
● Stable with low ESR, 1µF ceramic output capacitor
● Excellent Load/Line Transient Response
● Low dropout: 150mV typical at 150mA
● Current limit protection
● Short circuit protection
● Thermal shutdown protection
● Ambient temperature range: -40ºC to 85°C
● SOT23 and SOT23R: Available in “Green” Molding Compound (No Br, Sb)
● Lead Free Finish/RoHS Compliant
Diodes Incorporated AP7313-18SAG-7 technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated AP7313-18SAG-7.
Diodes Incorporated AP7313-18SAG-7 technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated AP7313-18SAG-7.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 19 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | TO-236-3, SC-59, SOT-23-3 | |
| Number of Pins | 3Pins | |
| Weight | 7.994566mg | |
| Operating Temperature | -40°C~85°C | |
| Published | 2012 | |
| Packaging | Tape & Reel (TR) | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 3Terminations | |
| ECCN Code | EAR99 | |
| Max Power Dissipation | 600mW |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Position | DUAL | |
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Terminal Pitch | 0.96mm | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | AP7313 | |
| Pin Count | 3 | |
| Current - Supply (Max) | 85μA | |
| Voltage - Input (Max) | 6V | |
| Output Voltage | 1.8V | |
| Output Type | Fixed | |
| Max Output Current | 150mA | |
| Output Configuration | Positive | |
| Power Dissipation | 600W | |
| Quiescent Current | 55μA | |
| Accuracy | 2 % |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Voltage 1 | 1.8V | |
| Number of Regulators | 1Regulator | |
| Min Input Voltage | 2V | |
| Protection Features | Over Current, Over Temperature, Short Circuit | |
| Current - Quiescent (Iq) | 75μA | |
| PSRR | 65dB (100Hz) | |
| Dropout Voltage | 300mV | |
| Min Output Voltage | 1.8V | |
| Power Supply Rejection Ratio (PSRR) | 65dB | |
| Min Current Limit | 200mA | |
| Height | 1mm | |
| Length | 3mm | |
| Width | 1.4mm | |
| RoHS Status | ROHS3 Compliant | |
| Radiation Hardening | No | |
| REACH SVHC | No SVHC | |
| Lead Free | Lead Free |
The following is the Functional Block Diagram of AP7313.
Functional Block Diagram
The following diagram shows the AP7313 Typical Application Circuit.
Typical Application Circuit
● Notebook and Desktop Computers and Pheripherals
● Portable Devices
● Battery Powered Devices
● CD-ROM, DVD and LAN Cards
The following diagrams show the AP7313 Package.
Unit: mm

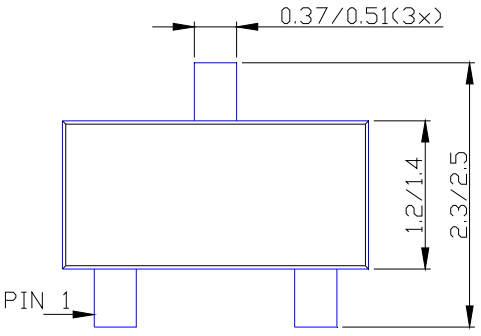

Top View

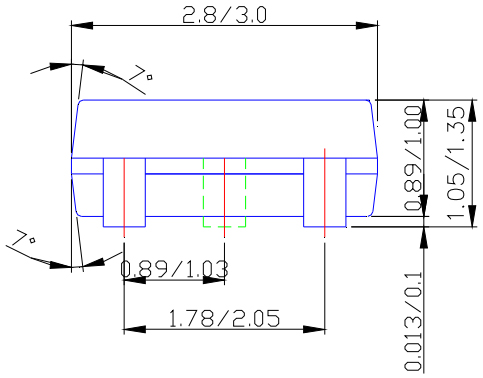

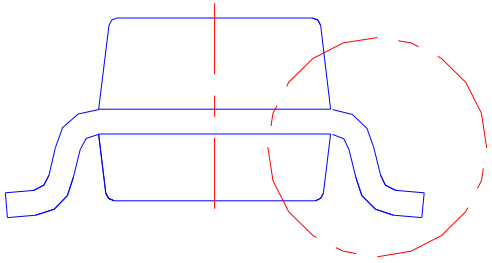

Side View

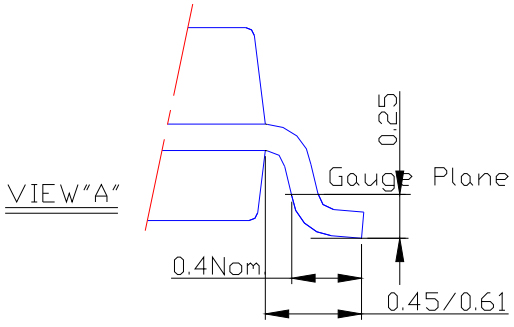

View A
View “A”
The following is the Marking Information of AP7313.
Marking Information
The following is the Land Pattern Recommendation of AP7313.
Land Pattern Recommendation
Diodes Incorporated delivers high-quality semiconductor products to the world's leading companies in the consumer electronics, computing, communications, industrial, and automotive markets. They leverage their expanded product portfolio of discrete, analog, and mixed-signal products and leading-edge packaging technology to meet customers' needs. Their broad range of application-specific solutions and solutions-focused sales, coupled with worldwide operations of 25 sites, including engineering, testing, manufacturing, and customer service, enables us to be a premier provider for high-volume, high-growth markets.
Download datasheets and manufacturer documentation for AP7313-18SAG-7
