IC REG LINEAR 1.8V 300MA SOT25
The AP7331 is a 300mA, adjustable and fixed output voltage, low dropout linear regulator. The device included pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry. Furthermore, Huge range of Semiconductors, Capacitors, Resistors and IcS in stock. Welcome RFQ.
AP7331-18WG-7
| Quantity | Unit Price | Ext. Price |
|---|---|---|
| 1+ | $0.48415 | $0.48 |
| 10+ | $0.45675 | $4.57 |
| 100+ | $0.43089 | $43.09 |
| 500+ | $0.4065 | $203.25 |
| 1000+ | $0.38349 | $383.49 |

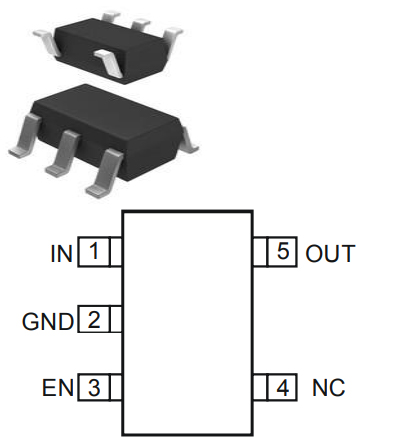

The following figure is the diagram of AP7331 pinout.

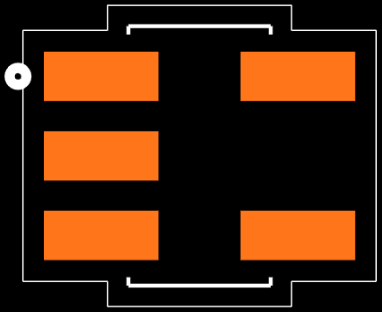

The followings are AP7331 Symbol, Footprint, and 3D Model.
Symbol
Footprint
3D Model
The AP7331 is a 300mA, adjustable and fixed output voltage, low dropout linear regulator. The device included pass element, error amplifier, band-gap, current limit and thermal shutdown circuitry. The device is turned on when EN pin is set to logic high level. The characteristics of low dropout voltage and low quiescent current make it suitable for low power applications, for example, battery powered devices. The typical quiescent current is approximately 65μA. Built-in current-limit and thermal-shutdown functions prevent IC from damage in fault conditions. The AP7331 is available in SOT25 and DFN2020-6 packages.
This article will introduce AP7331 systematically from its features, pinout to its specifications, applications, also including AP7331 datasheet and so much more.
● 300mA Low Dropout Regulator with EN
● Very low IQ over full load: 65µA
● Wide input voltage range: 2V to 6V
● Wide adjustable output: 0.8V to 5.0V
● Fixed output options: 1.0V to 3.3V
● PSRR: 65dB typical at 100Hz
● Fast start-up time: 80µs
● Stable with low ESR, 1µF ceramic output capacitor
● Excellent Load/Line Transient Response
● Low dropout: 300mV typical at 300mA
● Current limit protection
● Short circuit protection
● Thermal shutdown protection
● Ambient temperature range: -40ºC to 85°C
● SOT25 and DFN2020-6: Available in “Green” Molding Compound (No Br, Sb)
● Lead Free Finish/RoHS Compliant
Diodes Incorporated AP7331-18WG-7 technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated AP7331-18WG-7.
Diodes Incorporated AP7331-18WG-7 technical specifications, attributes, parameters and parts with similar specifications to Diodes Incorporated AP7331-18WG-7.
| Product Attribute | Attribute Value | |
|---|---|---|
| Factory Lead Time | 19 Weeks | |
| Contact Plating | Tin | |
| Mount | Surface Mount | |
| Mounting Type | Surface Mount | |
| Package / Case | SC-74A, SOT-753 | |
| Number of Pins | 5Pins | |
| Published | 2003 | |
| Packaging | Tape & Reel (TR) | |
| Operating Temperature | -40°C~85°C | |
| JESD-609 Code | e3 | |
| Pbfree Code | yes | |
| Part Status | Active | |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | |
| Number of Terminations | 5Terminations | |
| ECCN Code | EAR99 | |
| Max Power Dissipation | 640mW | |
| Terminal Position | DUAL |
| Product Attribute | Attribute Value | |
|---|---|---|
| Terminal Form | GULL WING | |
| Peak Reflow Temperature (Cel) | 260 | |
| Number of Functions | 1Function | |
| Time@Peak Reflow Temperature-Max (s) | 40 | |
| Base Part Number | AP7331 | |
| Pin Count | 5 | |
| Current - Supply (Max) | 85μA | |
| Number of Outputs | 1Output | |
| Voltage - Input (Max) | 6V | |
| Output Voltage | 1.8V | |
| Output Type | Fixed | |
| Max Output Current | 300mA | |
| Output Configuration | Positive | |
| Power Dissipation | 640W | |
| Quiescent Current | 55μA | |
| Control Features | Enable | |
| Accuracy | 2 % |
| Product Attribute | Attribute Value | |
|---|---|---|
| Output Voltage 1 | 1.8V | |
| Voltage - Output (Min/Fixed) | 1.8V | |
| Min Input Voltage | 2V | |
| Protection Features | Over Current, Over Temperature | |
| Current - Quiescent (Iq) | 75μA | |
| PSRR | 65dB (100Hz) | |
| Reference Voltage | 400mV | |
| Dropout Voltage | 550mV | |
| Power Supply Rejection Ratio (PSRR) | 65dB | |
| Min Current Limit | 400mA | |
| Height | 1.3mm | |
| Length | 3.1mm | |
| Width | 1.7mm | |
| REACH SVHC | No SVHC | |
| Radiation Hardening | No | |
| RoHS Status | ROHS3 Compliant | |
| Lead Free | Lead Free |

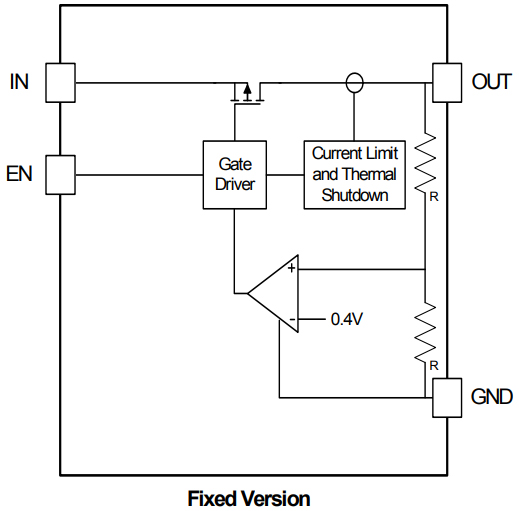

The following is the Block Diagram of AP7331.
Functional Block Diagram
● XDSL Routers
● Wireless LAN Cards
● Desktop and Notebook Computers
● Battery Powered Equipments

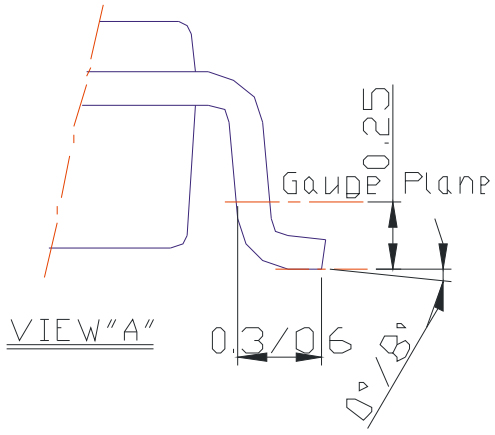

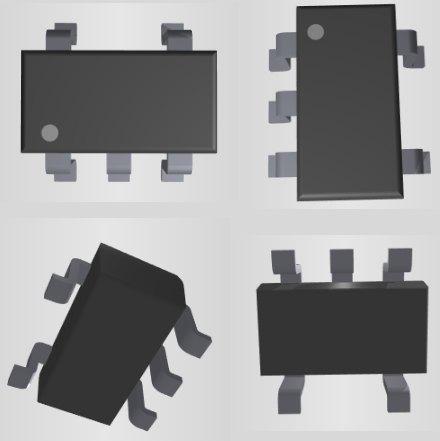

The following diagrams show the AP7331 package.
View A
View B
View C
View “A”

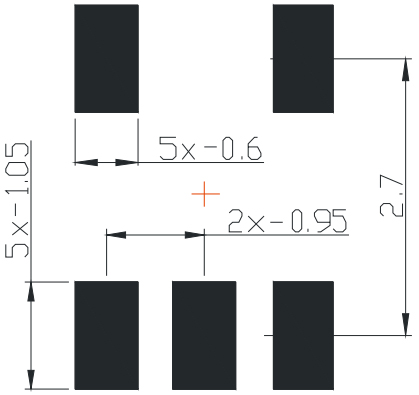

The following diagram shows the AP7331 Land Pattern Recommendation.
Land Pattern Recommendation

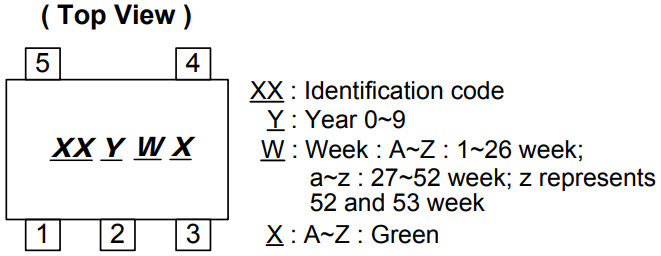

The following is the Marking Information of AP7331.
Marking Information
